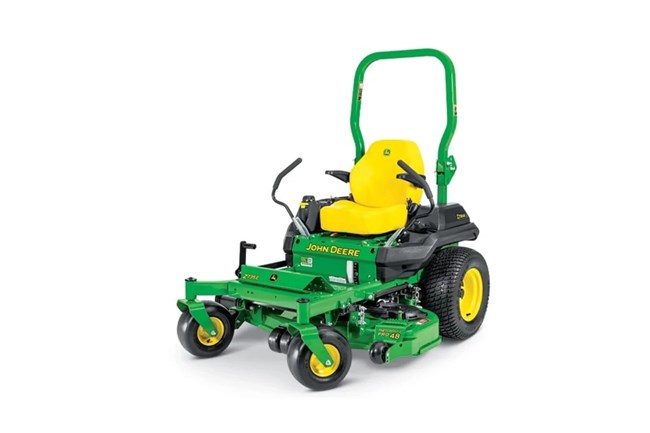

John Deere Z735E

New Products / John Deere / John Deere Products / Mowers / Commercial Zero-Turn Mowers / Z735E

Double tap to zoom



Features

High Capacity PRO Mower Decks

Studio front left view of a Z735E ZTrak's flat top high-capacity PRO 60-in. mower deck

The Z700 Series ZTrak™ is equipped with High Capacity PRO Mower Decks, available in 48-in., 54-in., and 60-in. (122-cm, 137-cm, and 152-cm) cutting widths. These decks deliver superior mowing performance and versatility, with options for MulchControl™ and material collection, providing unmatched effectiveness across various mowing conditions.

Efficient Hydrostatic Transmission Maximizes Mowing Efficiency

Underside view of a riding mower or tractor showing the drive system, including twin hydrostatic transmissions, belt and pulley assembly, axle components, and yellow wheels.

The ZTrak™ features Hydro-Gear® transmissions that provide speeds up to 8 mph (12.9 km/h). This system comprises unitized hydraulic pumps and heavy-duty wheel motors, ensuring superior performance and easy maintenance. The transmission also boasts exceptional cooling and offers easy access to check and fill hydraulic oil.

Operator Station is Adjustable for Superior Comfort

Top studio view of a Z720E Zero-Turn Mower

The mower features a highly ergonomic operator station designed for comfort and ease of use. It includes an adjustable foot platform and seat, along with user-friendly motion control levers and display, offering a tailored experience for various operators.

Specifications

Chassis

FrameHeavy-duty frame tubing
Primer/PaintE-coat/powder
Front Caster Tires13x6.5-6
Front Caster BearingsSealed ball bearings
Drive Tires23X10.5-12 (60-in. decks)
Hour MeterYes
Service Interval DecalYes
Storage CompartmentYes
Cup HolderYes

Lift System

TypeSpring assisted foot lift
Mower Cut Height - Minimum3.8 cm
Mower Cut Height - Minimum1.5 in.
Mower Cut Height - Maximum12.7 cm
Mower Cut Height - Maximum5 in.
Cut Height Increments0.64 cm
Cut Height Increments0.25 in.
Preset Cut HeightYes

Operation

Rollover Protective Structure (ROPS)Yes
Slope 0perating LimitStandard: 15 degrees; With Material Collection System: 10 degree (angle)
Operator Presence SystemYes
Park Brake InterlockYes
Operator VideoYes

Mower Deck

Cutting Width152 cm
Cutting Width60 in.
TypeHigh-capacity (HC) PRO side discharge
Mower Deck Material9 gauge
Mower Deck Material3.8 mm
Mower Deck Material0.15 in.
Mower Drive SystemV-belt

Dimensions

Wheelbase126.7 cm
Wheelbase49.9 in.
Overall Length204.6 cm
Overall Length80.6 in.
Width Without Mower128.4 cm
Width Without Mower50.6 in.
Width With Mower186.1 cm
Width With Mower73.3 in.
Width With Mower (Deflector Raised For Storage)164.5 cm
Width With Mower (Deflector Raised For Storage)64.8 in.
Weight449 kg
Weight990 lb.

Optional Attachments

Mulching SystemOptional MulchControl™ attachment
Rubber Floor MatOptional
Light KitOptional LED work and beacon lights
Material Collection System60 HC PRO Power Flow™ rear bagger
Material Collection System229 L
Material Collection System6.5 bu

Seat

Seat Back Height53 cm
Seat Back Height21 in.
Fore-Aft Adjustment10.2 cm
Fore-Aft Adjustment4 in.
Seat SuspensionTwo four-position springs

Travel Speed

Forward Speed12.8 km/h
Forward Speed8 mph
Reverse Speed6.4 km/h
Reverse Speed4 mph
Speed And Direction ControlTwin standard levers
Control Adjustment2-height/18 positions

Engine

Engine Power18.6 kW
Engine Power25 hp
Engine Model NumberHTR810
Displacement810 cc
Displacement49.4 cu in.
CylindersV-twin
LubricationFull pressure with replaceable filter
Lubrication1.9 L
Lubrication2 U.S. qt
TypeOverhead valve
Battery Voltage 12 V
Battery Cold Crank Amps 340 CCA
Choke/Speed ControlSeparate control levers
Cooling MethodAir
Fuel Tank Capacity30.2 L
Fuel Tank Capacity8 U.S. gal.
Fuel GaugeFuel level sight line

Power Take-Off (PTO)

TypeElectric
Type169 Nm
Type125 lb-ft
DriveV-belt

Additional Information

Date Collected09/01/2022 00:00:00

Buyer's Notes

Note 1Flip-up and adjustable foot platform for easy service access
Warranty4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Drivetrain

Dual HydrosHydro-gear ZT3100 with 1-in. (2.54-cm) axles
