Features

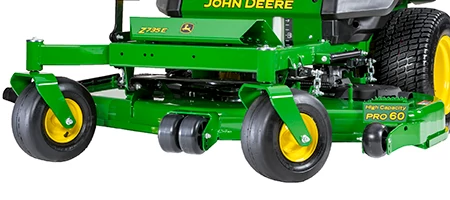

High Capacity PRO Mower Decks
The Z700 Series ZTrak™ is equipped with High Capacity PRO Mower Decks, available in 48-in., 54-in., and 60-in. (122-cm, 137-cm, and 152-cm) cutting widths. These decks deliver superior mowing performance and versatility, with options for MulchControl™ and material collection, providing unmatched effectiveness across various mowing conditions.
Efficient Hydrostatic Transmission Maximizes Mowing Efficiency
The ZTrak™ features Hydro-Gear® transmissions that provide speeds up to 8 mph (12.9 km/h). This system comprises unitized hydraulic pumps and heavy-duty wheel motors, ensuring superior performance and easy maintenance. The transmission also boasts exceptional cooling and offers easy access to check and fill hydraulic oil.

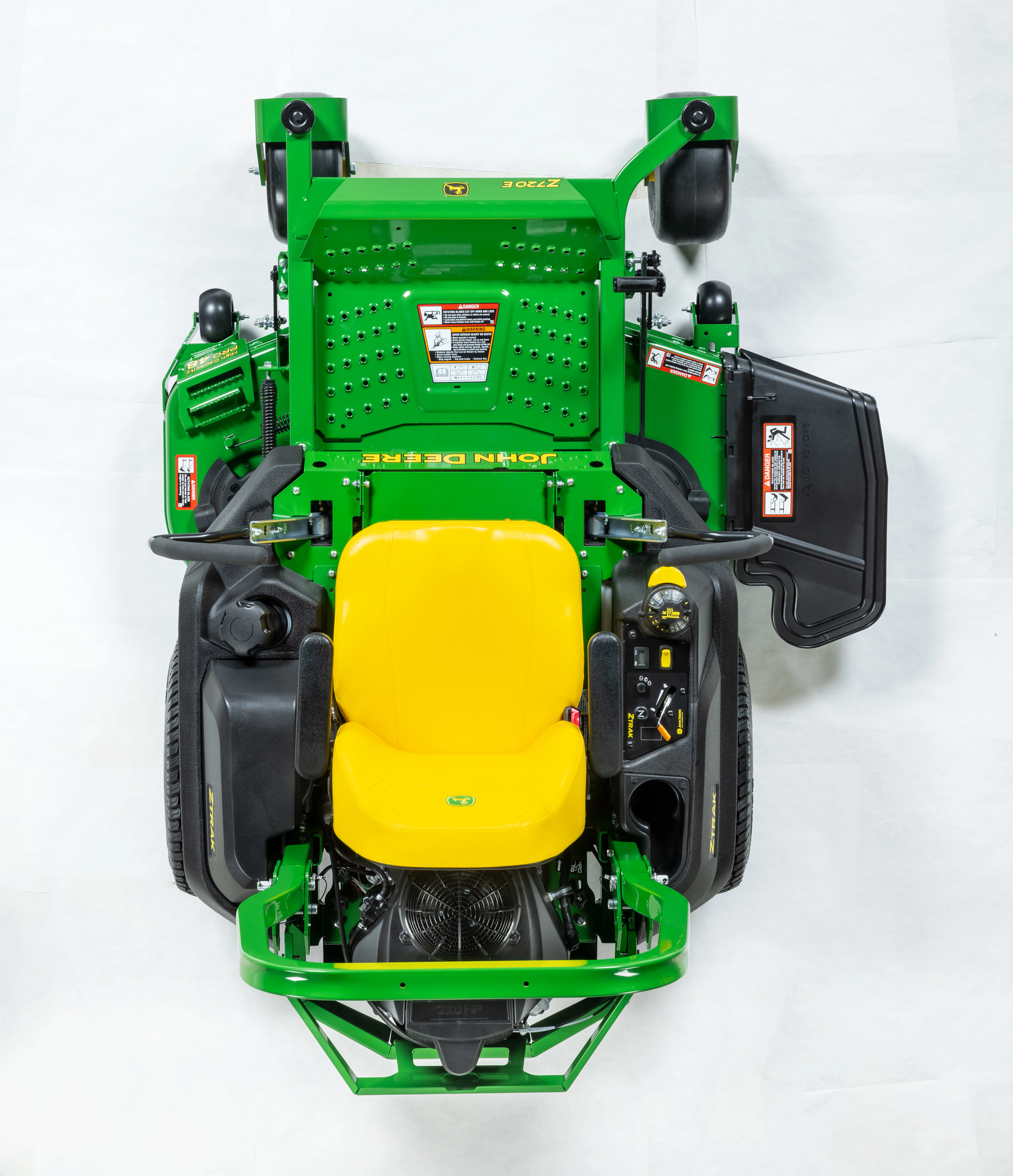

Operator Station is Adjustable for Superior Comfort
The mower features a highly ergonomic operator station designed for comfort and ease of use. It includes an adjustable foot platform and seat, along with user-friendly motion control levers and display, offering a tailored experience for various operators.
Specifications
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/Paint | E-coat/powder |
| Front Caster Tires | 13x6.5-6 |
| Front Caster Bearings | Sealed ball bearings |
| Drive Tires | 23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Hour Meter | Yes |
| Service Interval Decal | Yes |
| Storage Compartment | Yes |
| Cup Holder | Yes |
Lift System
| Type | Spring assisted foot lift |
| Mower Cut Height - Minimum | 3.8 cm |
| Mower Cut Height - Minimum | 1.5 in. |
| Mower Cut Height - Maximum | 12.7 cm |
| Mower Cut Height - Maximum | 5 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope 0perating Limit | Standard: 15 degrees; With Material Collection System: 10 degree (angle) |
| Operator Presence System | Yes |
| Park Brake Interlock | Yes |
| Operator Video | Yes |
Mower Deck
| Cutting Width | 122/137/152 cm |
| Cutting Width | 48/54/60 in. |
| Type | High-capacity (HC) PRO side discharge |
| Mower Deck Material | 9 gauge |
| Mower Deck Material | 3.8 mm |
| Mower Deck Material | 0.15 in. |
| Mower Drive System | V-belt |
Optional Attachments
| Mulching System | Optional MulchControl™ attachment |
| Rubber Floor Mat | Optional |
| Light Kit | Optional LED work and beacon lights |
| Material Collection System | 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger |
| Material Collection System | 229 L |
| Material Collection System | 6.5 bu |
Seat
| Seat Back Height | 53 cm |
| Seat Back Height | 21 in. |
| Fore-Aft Adjustment | 10.2 cm |
| Fore-Aft Adjustment | 4 in. |
| Seat Suspension | Two four-position springs |
Travel Speed
| Forward Speed | 12.8 km/h |
| Forward Speed | 8 mph |
| Reverse Speed | 6.4 km/h |
| Reverse Speed | 4 mph |
| Speed And Direction Control | Twin standard levers |
| Control Adjustment | 2-height/18 positions |
Engine
| Engine Power | 17.2 kW |
| Engine Power | 23 hp |
| Engine Model Number | FR691V |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter |
| Lubrication | 1.9 L |
| Lubrication | 2 U.S. qt |
| Type | Overhead valve |
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 340 CCA |
| Choke/Speed Control | Separate control levers |
| Cooling Method | Air |
| Fuel Tank Capacity | 30.2 L |
| Fuel Tank Capacity | 8 U.S. gal. |
| Fuel Gauge | Fuel level sight line |
Dimensions
| Wheelbase | 126.7 cm |
| Wheelbase | 49.9 in. |
| Overall Length | 204.6 cm |
| Overall Length | 80.6 in. |
| Width Without Mower | 123.5 cm |
| Width Without Mower | 48.6 in. |
Power Take-Off (PTO)
| Type | Electric |
| Type | 169 Nm |
| Type | 125 lb-ft |
| Drive | V-belt |
Additional Information
| Date Collected | 09/01/2022 00:00:00 |
Buyer's Notes
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| Warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drivetrain
| Dual Hydros | Hydro-gear ZT3100 with 1-in. (2.54-cm) axles |
