Features
Convenient Controls for Operator Comfort and Productivity
Intuitive, easy-to-reach controls keep operation simple and comfortable. Color coded, clearly marked controls enhance usability, while the ergonomic layout delivers confident handling and all day comfort. Recessed operator presence levers create a smooth, comfortable grip during operation.
Fabricated Floating Mower Deck Delivers High-Quality Cut
The fabricated floating deep deck provides a high-quality cut on diverse terrains. It features a durable construction with 10-gauge steel deck top, plus a 10-gauge spindle mounting plate, and 7-gauge side skirts with reinforcement bar. Adjustable anti-scalp wheels allow for a smooth mow without damaging the turf.

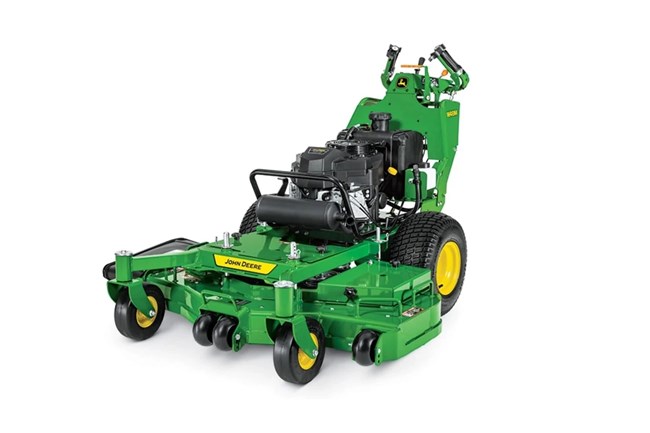

Image shows a W48R Commercial Walk-Behind Mower Deck

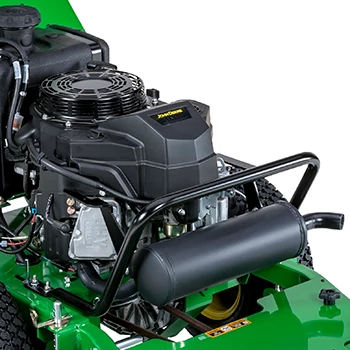

V-Twin Engine Delivers Smooth Operation and Plenty of Power
The 14.5 hp (10.81 kW) air cooled V twin engine delivers strong torque across a wide range of speeds, with full pressure lubrication for durability on uneven terrain. Its overhead valve design increases power and torque per cubic inch of displacement, improves fuel efficiency, and helps maintain cooler operating temperatures.
Specifications
Travel Speed
| Forward Speeds | Infinite |
| Reverse Speeds | Infinite |
| Speed Range - Forward | 6.5 mph |
| Speed Range - Forward | 10.5 km/h |
| Speed Range - Reverse | 3 mph |
| Speed Range - Reverse | 4.8 km/h |
Mower Decks
| Mower Deck Size | 48 in. |
| Mower Deck Size | 122 cm |
| Material | 10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar |
| Blades | Three high-lift |
| Blades - Length | 16.5 in. |
| Blades - Length | 41.9 cm |
| Blades - Thickness | 0.25 in. |
| Blades - Thickness | 0.64 cm |
| Blade Drive | V-Belt |
| Blade Tip Speed | 18000 fpm |
| Blade Tip Speed | 5486 m/min |
| Cutting Height | 1.5-4.5 in. |
| Cutting Height | 3.8-11.4 cm |
Dimensions
| Height | 44.8 in. |
| Height | 114 cm |
| Length With Deck | 74 in. |
| Length With Deck | 188 cm |
| Width - Deflector Down | 62 in. |
| Width - Deflector Down | 157 cm |
| Width - Deflector Up For Storage | 50 in. |
| Width - Deflector Up For Storage | 127 cm |
| Weight | 645 lb. |
| Weight | 293 kg |
Engine
| Engine Manufacturer/Model | FS481V |
| Engine Power | At 3600 rpm 14.5 hp* / 10.8 kW |
| Displacement | 36.8 cu in. |
| Displacement | 603 cc |
| Cylinders | V-twin |
| Operating Speed | 3600 rpm |
| Ignition/Starter | Electronic/recoil start |
| Valving | Overhead valves |
| Oil Filter | Standard |
| Lubrication | Full pressure |
| Governor | Flyweight all speed governor |
| Hour Meter | Standard, digital |
| Cooling System | Air cooled |
| Air Cleaner | Paper element with foam precleaner |
| Muffler | Low tone |
Electrical System
| Ignition | Electronic spark |
| Hourmeter | Standard, digital |
| Operator Presence Starting System | PTO off, park brake engaged, speed lever in neutral |
Fuel System
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5.4 U.S. gal. |
| Fuel Tank Capacity | 20.4 L |
| Fuel Pump | Vacuum-operated diaphragm |
| Fuel Delivery System | Carburetor |
| Fuel Tank Switch/Shut Off Valve | No |
| Fuel Pickup | Top draw |
Drivetrain
| Transmission | Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock |
| Shift Mechanism | Ergonomic handles with spring-loaded neutral lock |
Additional Information
| Date Collected | 07/11/2022 00:00:00 |
Tires
| Drive Wheels | 18x8.5-8 |
| Caster Wheels | 9x3.5-4 semi-pneumatic |
Brakes
| Type | Dynamic braking with hand controls, hand lever to set parking brake |
Buyer's note
| Warranty | 24 month |
