Features

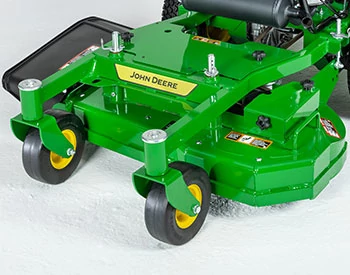

Floating Mower Deck Delivers High-Quality Cut
The fabricated floating deep deck provides a high-quality cut on diverse terrains. It features a durable construction with 10-gauge steel deck top, plus a 10-gauge spindle mounting plate, and 7-gauge side skirts with reinforcement bar.
Convenient Controls for Operator Comfort and Productivity
Intuitive, easy-to-reach controls keep operation simple and comfortable. Color coded, clearly marked controls enhance usability, while the ergonomic layout delivers confident handling and all day comfort. Recessed operator presence levers create a smooth, comfortable grip during operation.
Ultimate Curb Climbing Ability
The machine is built with 8.5 inches (21.6 cm) of frame clearance, allowing operators to climb curbs without scuffing or chipping them.
Specifications
Travel Speed
| Forward Speeds | Infinite |
| Reverse Speeds | Infinite |
| Speed Range - Forward | 7.5 mph |
| Speed Range - Forward | 12.1 km/h |
| Speed Range - Reverse | 3 mph |
| Speed Range - Reverse | 4.8 km/h |
Mower Decks
| Mower Deck Size | 36 in. |
| Mower Deck Size | 91.4 cm |
| Material | 10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar |
| Blades | Two high-lift |
| Blades - Length | 18 in. |
| Blades - Length | 45.7 cm |
| Blades - Thickness | 0.25 in. |
| Blades - Thickness | 0.64 cm |
| Blade Drive | V-Belt |
| Blade Tip Speed | 18000 fpm |
| Blade Tip Speed | 5486 m/min |
| Cutting Height | 1.5-4.5 in. |
| Cutting Height | 3.8-11.4 cm |
Dimensions
| Height | 44.8 in. |
| Height | 114 cm |
| Length With Deck | 76.4 in. |
| Length With Deck | 194 cm |
| Width - Deflector Down | 50 in. |
| Width - Deflector Down | 127 cm |
| Width - Deflector Up For Storage | 40 in. |
| Width - Deflector Up For Storage | 102 cm |
| Weight | 655 lb. |
| Weight | 297 kg |
Engine
| Engine Manufacturer/Model | FX481V |
| Engine Power | At 3600 rpm 15.5 hp* / 11.6 kW |
| Displacement | 36.8 cu in. |
| Displacement | 603 cc |
| Cylinders | V-twin |
| Operating Speed | 3600 rpm |
| Ignition/Starter | Electronic/electric start |
| Valving | Overhead valves |
| Oil Filter | Standard |
| Lubrication | Full pressure |
| Governor | Flyweight all speed governor |
| Hour Meter | Standard, digital |
| Cooling System | Air cooled |
| Air Cleaner | Heavy-duty air cleaner |
| Muffler | Low tone |
Electrical System
| Ignition | Electronic spark |
| Hourmeter | Standard, digital |
| Operator Presence Starting System | PTO off, park brake engaged, speed lever in neutral |
Fuel System
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5.4 U.S. gal. |
| Fuel Tank Capacity | 20.4 L |
| Fuel Pump | Vacuum-operated diaphragm |
| Fuel Delivery System | Carburetor |
| Fuel Tank Switch/Shut Off Valve | No |
| Fuel Pickup | Top draw |
Drivetrain
| Transmission | Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock |
| Wheel Motors | Danfoss 12 cu in. / 197 cc |
| Shift Mechanism | Ergonomic handles with spring-loaded neutral lock |
Additional Information
| Date Collected | 07/11/2022 00:00:00 |
Tires
| Drive Wheels | 18x6.5-8 |
| Caster Wheels | 9x3.5-4 semi-pneumatic |
Brakes
| Type | Dynamic braking with hand controls, hand lever to set parking brake |
Buyer's note
| Warranty | 36 months or 1200 hours, whichever comes first: First 24 months, no hour limitation |
