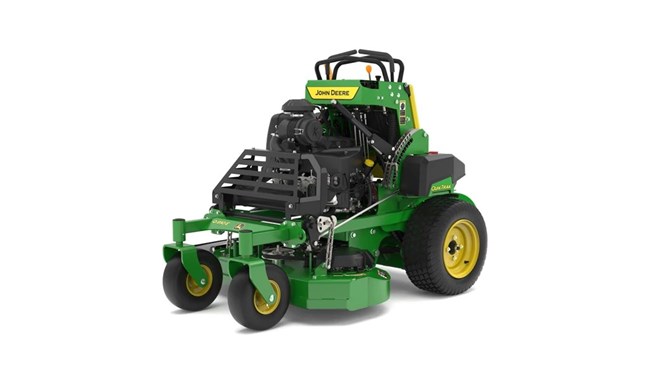

John Deere Q810E
Double tap to zoom
Q810E
Stand-On Mowers
Overview:
Maneuver efficiently with the Q810E QuikTrak™ Stand-On Mower. Compact agility meets commercial-grade power, helping you navigate tight spaces while delivering the quality results your customers notice.
- 19-hp (14.2-kW)
- 36" Deck, 7-Gauge Fabricated Deck
- Mow Up to 8 mph
- Warranty: 36 Months or 1200 Hours, Whichever Comes First. First 24 Months, No Hour Limitation
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Comfortable Operator Platform
An ergonomically designed platform provides a leaning pad to ensure operator comfort. Additionally, the foot platform is cushioned for a smoother and more comfortable operation for extended periods.
Compact Design
The Q800E series takes up less space on the trailer, can operate in tighter areas compared to other machine forms, and provides operator great visibility around the unit.
Easy-to-Use Controls for Comfort and Productivity
Intuitive, color-coded control placement ensures that operators can find and use easily. Two stationary reference bars are included for convenience and security, as well as provide protection to the controls from inadvertent activation.
Specifications
Mower Decks
| Mower Deck Size | 36-in. (91-cm) fabricated |
| Deck Construction | Fabricated steel, floating mount system |
| Deck Thickness | 7 gauge / 0.180 in. / 4.6 mm |
| Discharge | Side |
| Height-Of-Cut Range | 1.5-5 in. |
| Height-Of-Cut Range | 3.8-12.7 cm |
| Height-Of-Cut Increments | 0.25 in. |
| Height-Of-Cut Increments | 0.64 cm |
| Cutting Width | 36 in. |
| Cutting Width | 91 cm |
Drivetrain
| Transmission | Separate hydraulic pumps and motors |
| Hydraulic Pumps | 0.61 cu in. / 10 cc |
| Wheel Motors | 12 cu in. / 196 cc |
| Speed Range | 0-8 mph |
| Speed Range | 0-12.9 km/h |
| Forward Speed | 0-8 mph |
| Forward Speed | 0-12.9 km/h |
| Reverse Speed | 0-3.5 mph |
| Reverse Speed | 0-5.6 km/h |
| Speed Direction And Control | Twin hand-controlled levers |
| Hydraulic Capacity | 5 U.S. qt |
| Hydraulic Capacity | 4.7 L |
| Hydraulic Oil Cooler | Radiator core |
| Filter | Spin-on replaceable |
Brakes
| Dynamic Braking | Dual hand-controlled levers |
| Park Brake | Tire engagement |
| Park Brake Actuation | Hand lever |
Fuel System
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5.6 U.S. gal. |
| Fuel Tank Capacity | 21.2 L |
| Fuel Tank Switch/Shut-Off Valve | Yes |
Engine
| Engine Manufacturer/Model | FX600V |
| Engine Power | Gross at 3,600 rpm, 19 hp / 14.2 kW |
| Displacement | 36.8 cu in. |
| Displacement | 603 cc |
| Cylinders | 2 |
| Crankcase Capacity | 1.8 U.S. qt |
| Crankcase Capacity | 1.7 L |
| Oil Filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air, with integrated clean out ports |
| Air Cleaner | Heavy-duty canister type |
Dimensions
| Length | 62 in. / 157.5 cm |
| Weight | 720 lb. |
| Weight | 327 kg |
Wheels
| Caster Wheel Type | Flat free |
| Caster Wheels | 11x4-5 |
Tires
| Drive Wheels | 18x8.5-10 pneumatic |
| Load Rating | 4 PR |
Additional Information
| Date Collected | 08/28/2023 00:00:00 |
Blades
| Thickness | 0.25 in. / 0.64 cm |
| Blade Tip Speed | Approximately 18,000 fpm / 5486 m/min |
| Number | 2 |
PTO
| Type | Electro-magnetic with brake, 125 lb-ft / 169 Nm |
| Drive | V-belt |
Electrical System
| Charge System | 20 amp |
| Battery Voltage | 12 V |
| Cold Cranking Amp | 300 amp |
| Hour Meter | Digital |
| Operator Presence Starting System | Yes |
Buyer's note
| Warranty | 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
