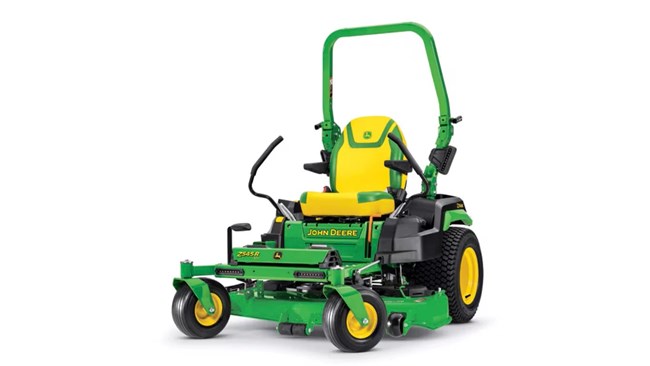

John Deere Z545R

New Products / John Deere / John Deere Products / Mowers / Residential Lawn Mowers / Z545R

Double tap to zoom



Features

Electronic Fuel Injection (EFI) Engine

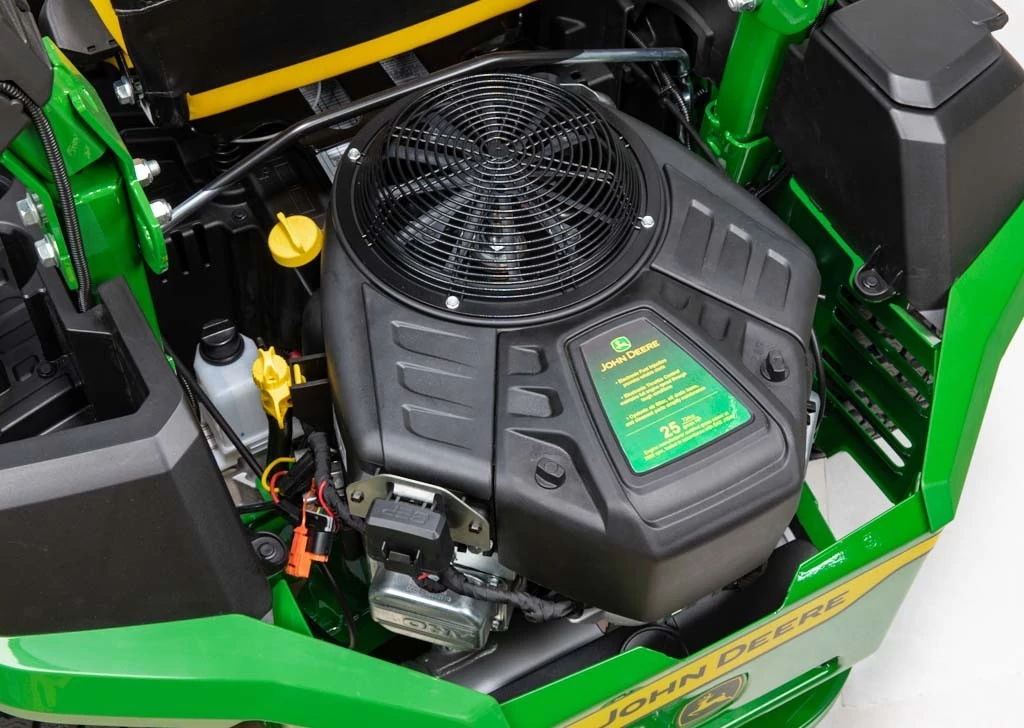

Top view of a John Deere zero‑turn mower engine compartment with black engine cover, cooling fan grille, yellow oil cap, and green mower frame, John Deere label visible on the engine cover.

The electronically fuel injected engine offers easy starts every time, no choke required. A digital throttle control allows you to easily change engine speed with the touch of a button. EFI eliminates the nuisance of carburetor maintenance.

Durable, High-Capacity Mower Decks

Close-up of a green John Deere riding mower deck underside, showing the metal cutting deck housing, spindle assembly, and belt area beneath the chassis.

Forged from thick, 9-gauge steel with welded reinforcement on the front and trim edges and upgraded, commercial-grade spindles. Available in both 54-in. and 60-in. widths.

Mow Even More

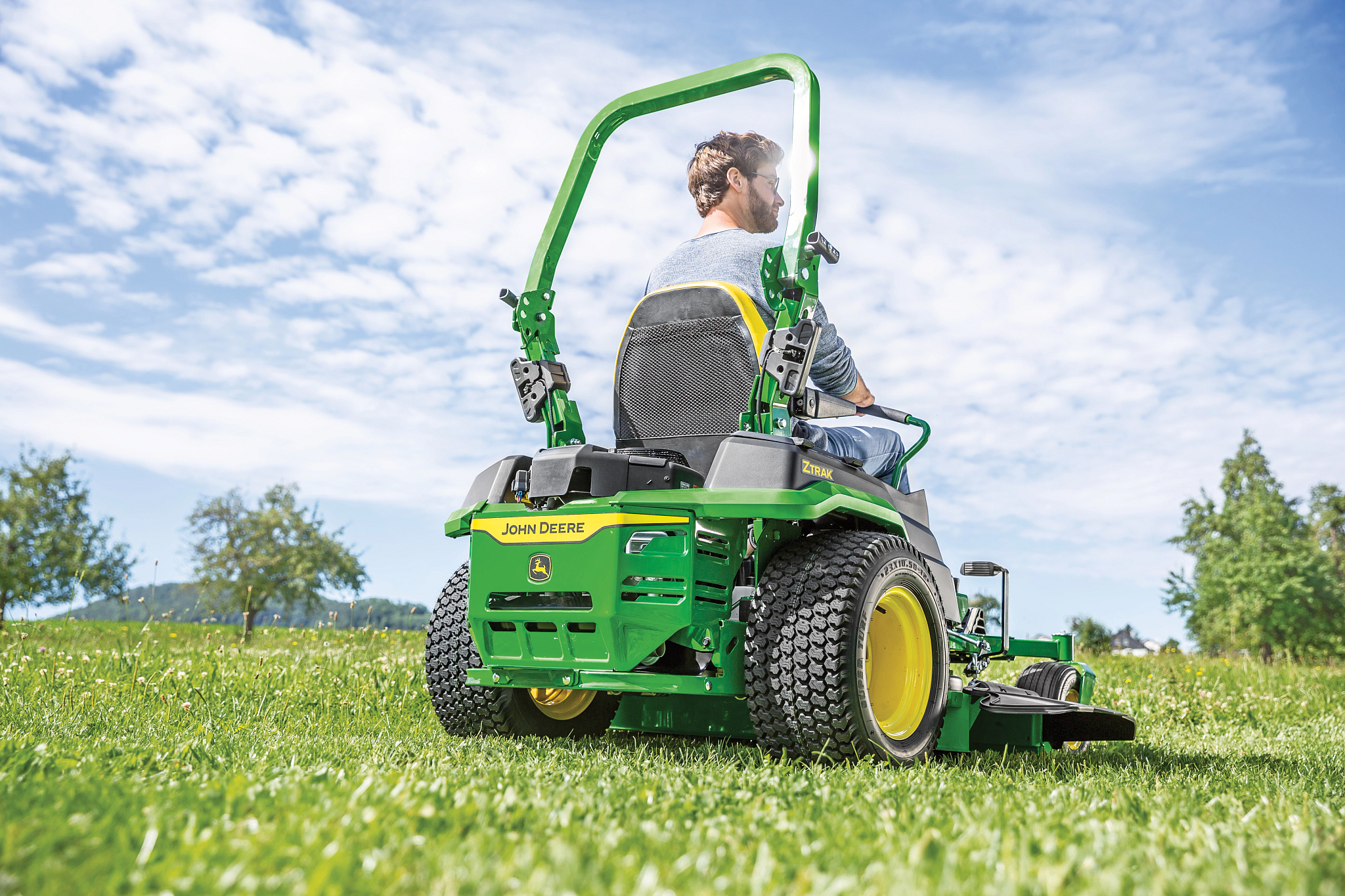

Z545R Riding Lawn Equipment Action Shot - Rear Right View

This mower comes equipped with large 23-in. rear tires and transmissions capable of mowing at 9 mph. These upgrades help you to tackle large properties.

Specifications

Chassis

FrameHeavy-duty frame tubing
Primer/PaintE-coat/powder
Front Caster Tires13x6.5-6
Front Caster BearingsSealed ball bearings
Drive Tires23x10.5-12
Hour MeterYes
Service Interval DecalYes
Storage CompartmentYes and covered
Cup HolderYes
Maximum Towing Capacity113 kg
Maximum Towing Capacity250 lb.

Lift System

TypeFoot lift
Mower Cut Height - Minimum2.5 cm
Mower Cut Height - Minimum1 in.
Mower Cut Height - Maximum10.2 cm
Mower Cut Height - Maximum4 in.
Cut Height Increments0.64 cm
Cut Height Increments0.25 in.
Preset Cut HeightYes

Operation

Rollover Protective Structure (ROPS)Yes
Slope 0perating LimitStandard: 15 degrees; With Material Collection System: 10 degree (angle)
Operator Presence SystemYes
Park Brake InterlockYes
Operator VideoYes

Dimensions

Wheelbase125 cm
Wheelbase49.2 in.
Overall Length208 cm
Overall Length81.9 in.
Width Without Mower123.7 cm
Width Without Mower48.7 in.
Width With Mower158.5 cm
Width With Mower62.4 in.
Width With Mower (Deflector Raised For Storage)136.1 cm
Width With Mower (Deflector Raised For Storage)53.6 in.
Height125 cm
Height49.2 in.
Weight375 kg
Weight826 lb.

Mower Deck

Cutting Width122/137/152 cm
Cutting Width48/54/60 in.
TypeHigh-capacity side discharge
Mower Deck Material9 gauge
Mower Deck Material3.8 mm
Mower Deck Material0.15 in.
Mower Drive SystemV-belt

Optional Attachments

Mulching SystemOptional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm
Rubber Floor MatFoot platform and toe board
Sun ShadeOptional
Mounted SprayerNo L
Mounted SprayerNo U.S. gal.
Protective CoverYes
Light Kit4-point LED Light kit
Material Collection SystemPower Flow rear bagger / Not available on 60HC
Material Collection System230 L
Material Collection System6.5 bu

Seat

Seat Back Height57.1 cm
Seat Back Height22.5 in.
Fore-Aft Adjustment7.6 cm
Fore-Aft Adjustment3 in.
Seat SuspensionTwo springs and ComfortGlide

Travel Speed

Forward Speed14.5 km/h
Forward Speed9 mph
Reverse Speed7.2 km/h
Reverse Speed4.5 mph
Speed And Direction ControlTwin levers
Control Adjustment2-height/9-fore-aft, 18 positions

Engine

Engine Power18.6 kW
Engine Power25 hp
Engine Model NumberHTR EFI/ETC
Displacement724 cc
Displacement44.2 cu in.
CylindersV-twin
LubricationFull pressure with replaceable filter
Lubrication1.9 L
Lubrication2 U.S. qt
TypeOverhead valve
Battery Voltage 12 V
Battery Cold Crank Amps 300 CCA
Choke/Speed ControlSeparate control levers
Cooling MethodAir
Fuel Tank Capacity17 L
Fuel Tank Capacity4.5 U.S. gal.
Fuel GaugeElectric gauge and fuel level sight line

Additional Information

Manufacturing LocationGreeneville, Tennessee, USA
Date Collected12/01/2021 00:00:00

Power Take-Off (PTO)

TypeElectric
Type169.5 Nm
Type125 lb-ft
DriveV-belt

Buyer's Notes

Note 1Mower wash port makes cleaning the deck easier
Note 2Flip-up foot platform for easy service access
Note 318-position adjustable motion-control levers
Warranty4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Drivetrain

Dual HydrosTuff Torq TZT7-M with 1-in. (2.5-cm) axles
