Features
Mow Comfortably

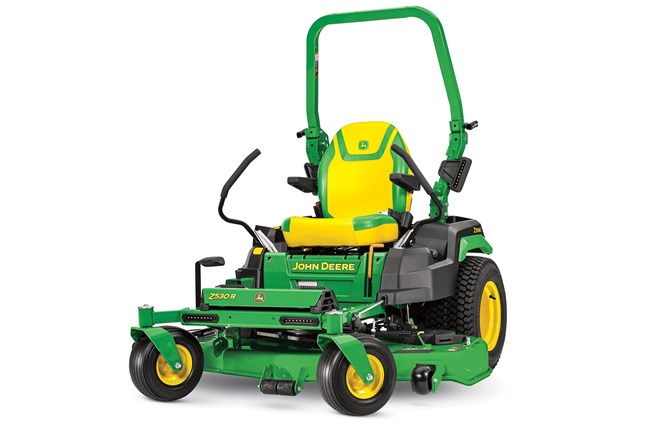

The Z530R offers a high back 22.5-inch seat with armrests. ComfortGlide™ seat slides allow up to 1 inch of fore-aft travel to absorb bumps and jarring. The foot platform has added rubber isolation for cushion. A larger, enhanced dash display provides easy access to machine information.
Durable, High-Capacity Mower Decks
Forged from thick, 9-gauge steel with welded reinforcement on the front and trim edges and upgraded, commercial-grade spindles. Available in both 54-in. and 60-in. widths.
Mow Even More
This mower comes equipped with large 23-in. rear tires and transmissions capable of mowing at 9 mph. These upgrades help you to tackle large properties.
Specifications
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/Paint | E-coat/powder |
| Front Caster Tires | 13x6.5-6 |
| Front Caster Bearings | Sealed ball bearings |
| Drive Tires | 23x10.5-12 |
| Hour Meter | Yes |
| Service Interval Decal | Yes |
| Storage Compartment | Yes and covered |
| Cup Holder | Yes |
| Maximum Towing Capacity | 113 kg |
| Maximum Towing Capacity | 250 lb. |
Lift System
| Type | Foot lift |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 10.2 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope 0perating Limit | Standard: 15 degrees; With Material Collection System: 10 degree (angle) |
| Operator Presence System | Yes |
| Park Brake Interlock | Yes |
| Operator Video | Yes |
Mower Deck
| Cutting Width | 122/137/152 cm |
| Cutting Width | 48/54/60 in. |
| Type | High-capacity side discharge |
| Mower Deck Material | 9 gauge |
| Mower Deck Material | 3.8 mm |
| Mower Deck Material | 0.15 in. |
| Mower Drive System | V-belt |
Optional Attachments
| Mulching System | Optional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm |
| Rubber Floor Mat | Foot platform and toe board |
| Sun Shade | Optional |
| Mounted Sprayer | No L |
| Mounted Sprayer | No U.S. gal. |
| Protective Cover | Yes |
| Light Kit | 4-point LED Light kit |
| Material Collection System | Power Flow rear bagger / Not available on 60HC |
| Material Collection System | 230 L |
| Material Collection System | 6.5 bu |
Seat
| Seat Back Height | 57.1 cm |
| Seat Back Height | 22.5 in. |
| Fore-Aft Adjustment | 7.6 cm |
| Fore-Aft Adjustment | 3 in. |
| Seat Suspension | Two springs and ComfortGlide |
Travel Speed
| Forward Speed | 14.5 km/h |
| Forward Speed | 9 mph |
| Reverse Speed | 7.2 km/h |
| Reverse Speed | 4.5 mph |
| Speed And Direction Control | Twin levers |
| Control Adjustment | 2-height/9-fore-aft, 18 positions |
Engine
| Engine Power | 17.9 kW |
| Engine Power | 24 hp |
| Engine Model Number | FR730V |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter |
| Lubrication | 1.9 L |
| Lubrication | 2 U.S. qt |
| Type | Overhead valve |
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 300 CCA |
| Choke/Speed Control | Separate control levers |
| Cooling Method | Air |
| Fuel Tank Capacity | 17 L |
| Fuel Tank Capacity | 4.5 U.S. gal. |
| Fuel Gauge | Electric gauge and fuel level sight line |
Additional Information
| Manufacturing Location | Greeneville, Tennessee, USA |
| Date Collected | 12/01/2021 00:00:00 |
Dimensions
| Wheelbase | 125 cm |
| Wheelbase | 49.2 in. |
| Overall Length | 208 cm |
| Overall Length | 81.9 in. |
| Width Without Mower | 123.7 cm |
| Width Without Mower | 48.7 in. |
Power Take-Off (PTO)
| Type | Electric |
| Type | 169.5 Nm |
| Type | 125 lb-ft |
| Drive | V-belt |
Buyer's Notes
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| Warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drivetrain
| Dual Hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
