Features
Enhanced Comfort and Ease of Use

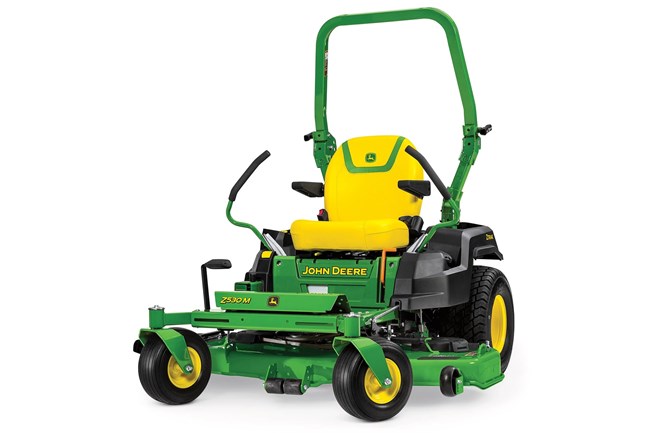

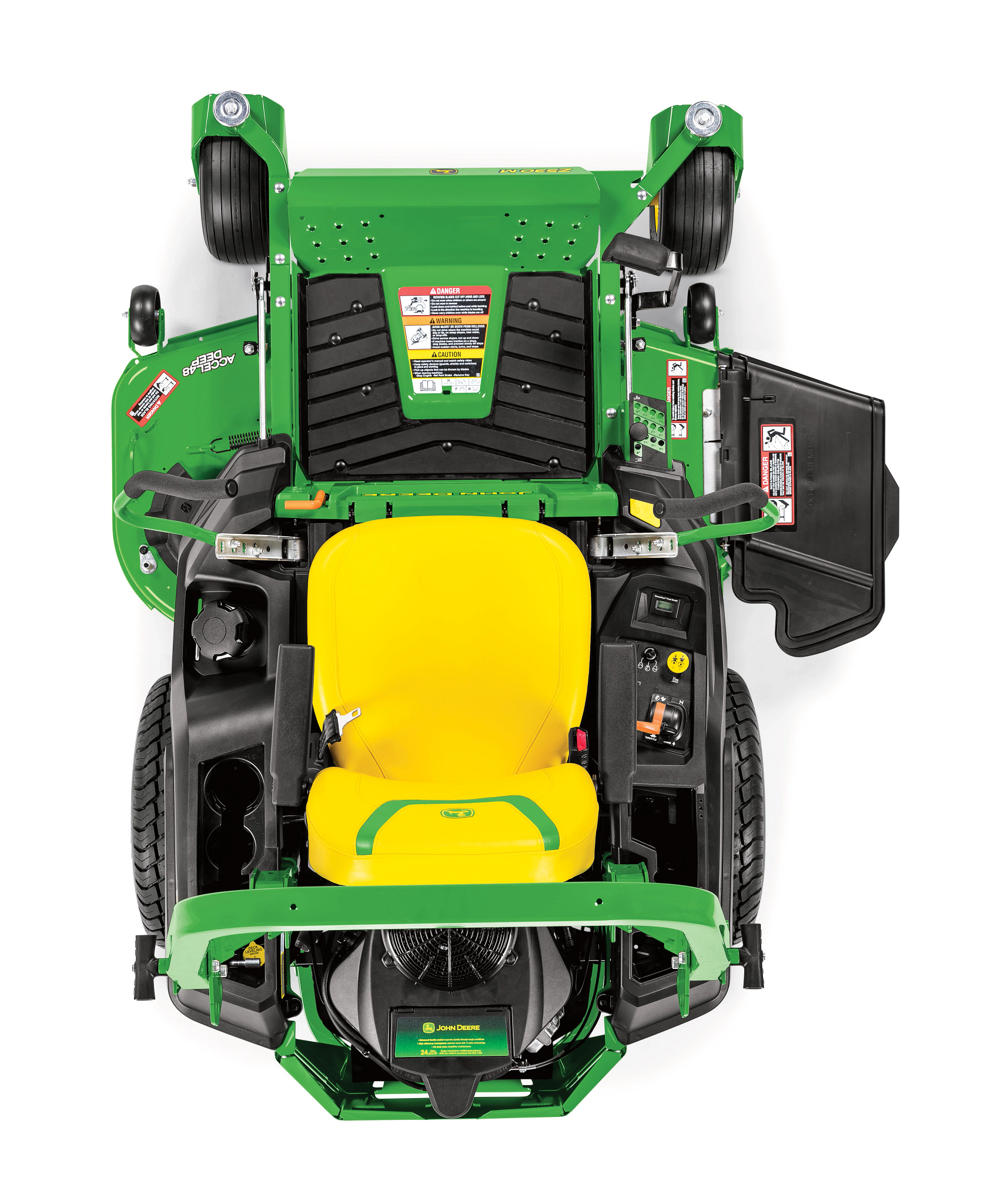

The Z530M offers a high back 20-in. seat with armrests. ComfortGlide™ seat slides allow up to 1 inch of fore-aft travel to absorb bumps and jarring. A rubber floor mat cushions vibrations.
Improved Ride and Traction
Equipped with large rear tires and front caster wheels, the Z530M provides a smooth ride and superior traction. The wheel sizes are optimized for deck size and transmission, ensuring minimal turf damage and stable performance in various conditions.
Mow More
This mower comes equipped with large 22-inch rear tires, 13-inch front tires, and transmissions capable of mowing at 8mph.
Specifications
Chassis
| Frame | Heavy-duty frame tubing |
| Primer/Paint | E-coat/powder |
| Front Caster Tires | 13x6.5-6 |
| Front Caster Bearings | Sealed ball bearings |
| Drive Tires | 22x9.5-10 |
| Hour Meter | Yes |
| Service Interval Decal | Yes |
| Storage Compartment | Yes |
| Cup Holder | Yes |
| Maximum Towing Capacity | 113 kg |
| Maximum Towing Capacity | 250 lb. |
Lift System
| Type | Foot lift |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 10.2 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Operation
| Rollover Protective Structure (ROPS) | Yes |
| Slope 0perating Limit | Standard: 15 degrees; With Material Collection System: 10 degree (angle) |
| Operator Presence System | Yes |
| Park Brake Interlock | Yes |
| Operator Video | Yes |
Mower Deck
| Cutting Width | 122/137/152 cm |
| Cutting Width | 48/54/60 in. |
| Type | Side discharge |
| Mower Deck Material | 10 gauge |
| Mower Deck Material | 3.4 mm |
| Mower Deck Material | 0.135 in. |
| Mower Drive System | V-belt |
Optional Attachments
| Mulching System | Optional MulchControl attachment, 54 in. (137 cm); Optional MulchControl attachment, 60 in. (152 cm) |
| Rubber Floor Mat | Foot platform only |
| Sun Shade | Optional |
| Mounted Sprayer | No L |
| Mounted Sprayer | No U.S. gal. |
| Protective Cover | No |
| Light Kit | Optional 4-point LED Light kit |
| Material Collection System | Power Flow rear bagger / Not available on 60A |
| Material Collection System | 230 L |
| Material Collection System | 6.5 bu |
Seat
| Seat Back Height | 50.8 cm |
| Seat Back Height | 20 in. |
| Fore-Aft Adjustment | 7.6 cm |
| Fore-Aft Adjustment | 3 in. |
| Seat Suspension | Two springs and ComfortGlide |
Travel Speed
| Forward Speed | 12.9 km/h |
| Forward Speed | 8 mph |
| Reverse Speed | 6.4 km/h |
| Reverse Speed | 4 mph |
| Speed And Direction Control | Twin levers |
| Control Adjustment | 2-height/9-fore-aft, 18 positions |
Engine
| Engine Power | 17.9 kW |
| Engine Power | 24 hp |
| Engine Model Number | FR730V |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter |
| Lubrication | 1.9 L |
| Lubrication | 2 U.S. qt |
| Type | Overhead valve |
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 300 CCA |
| Choke/Speed Control | Separate control levers |
| Cooling Method | Air |
| Fuel Tank Capacity | 17 L |
| Fuel Tank Capacity | 4.5 U.S. gal. |
| Fuel Gauge | Electric gauge and fuel level sight line |
Additional Information
| Manufacturing Location | Greeneville, Tennessee, USA |
| Date Collected | 12/01/2021 00:00:00 |
Dimensions
| Wheelbase | 125 cm |
| Wheelbase | 49.2 in. |
| Overall Length | 195.3 cm |
| Overall Length | 76.9 in. |
| Width Without Mower | 118.4 cm |
| Width Without Mower | 46.6 in. |
Power Take-Off (PTO)
| Type | Electric |
| Type | 142.4 Nm |
| Type | 105 lb-ft |
| Drive | V-belt |
Buyer's Notes
| Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| Warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drivetrain
| Dual Hydros | Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles |
