Features
Versatile Mulching and Bagging Options
With the optional MulchControl™ system, the mower effortlessly shifts between side discharge and mulching with the flip of a lever. Also available is two-bag, 6.5 bushel, material collection system to efficiently bag grass clippings and leaves.
Get an Even Cut with the Accel Deep™ Mower Deck
The 42-in. (107 cm) Accel Deep™ Mower Deck provides excellent cut quality. Its deep, flat-top design promotes consistent dispersion of clippings, even at higher speeds. Adjustable anti-scalp wheels ensure a smooth, level cut.

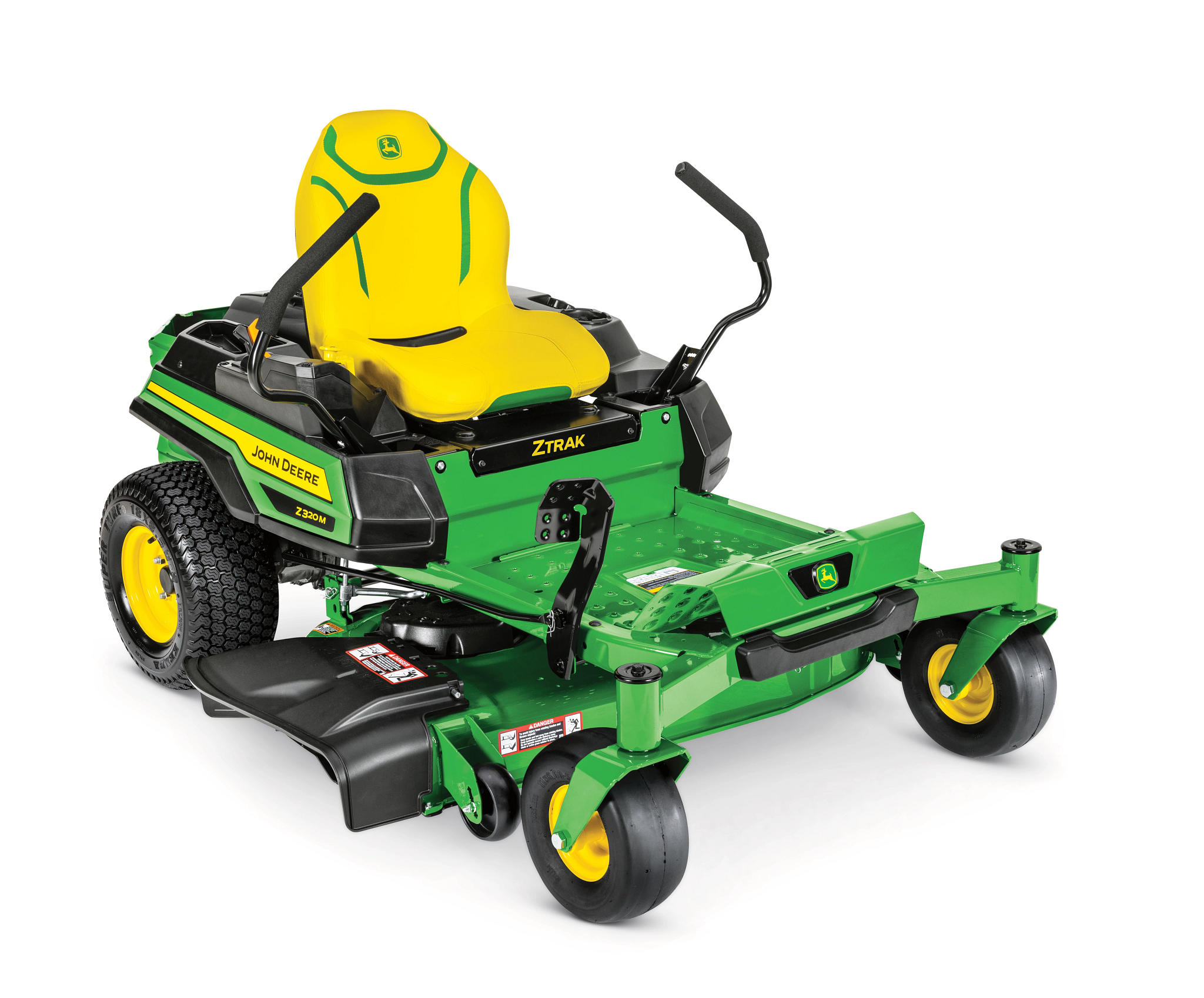

Comfort and Versatility
This mower comes with a standard rear hitch for added versatility. It also has an upgraded, 20-in. seat for a comfortable ride.
Specifications
Chassis
| Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
| Primer/Paint | E-coat/powder |
| Front Caster Tires | 11x6-5 |
| Front Caster Bearings | Sealed ball bearings |
| Drive Tires | 18x8.5-8 |
| Hour Meter | Yes |
| Service Interval Decal | Yes |
| Storage Compartment | Optional covered |
| Cup Holder | Yes |
| Maximum Towing Capacity | 113 kg |
| Maximum Towing Capacity | 250 lb. |
Lift System
| Type | Foot lift |
| Mower Cut Height - Minimum | 3 cm |
| Mower Cut Height - Minimum | 1.25 in. |
| Mower Cut Height - Maximum | 11 cm |
| Mower Cut Height - Maximum | 4.5 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Operation
| Rollover Protective Structure (ROPS) | No |
| Slope 0perating Limit | Standard: 13 degrees; With Material Collection System: 10 degree (angle) |
| Operator Presence System | Yes |
| Park Brake Interlock | Yes |
| Operator Video | Yes, online |
Dimensions
| Wheelbase | 125.5 cm |
| Wheelbase | 49.4 in. |
| Overall Length | 191.5 cm |
| Overall Length | 75.4 in. |
| Width Without Mower | 110 cm |
| Width Without Mower | 43.3 in. |
| Width With Mower | 128 cm |
| Width With Mower | 50.4 in. |
| Width With Mower (Deflector Raised For Storage) | 118 cm |
| Width With Mower (Deflector Raised For Storage) | 46.5 in. |
| Height | 110 cm |
| Height | 43.3 in. |
| Weight | 255 kg |
| Weight | 561 lb. |
Mower Deck
| Cutting Width | 107 cm |
| Cutting Width | 42 in. |
| Type | Side discharge |
| Mower Deck Material | 12 gauge |
| Mower Deck Material | 2.7 mm |
| Mower Deck Material | 0.105 in. |
| Mower Drive System | V-belt |
Optional Attachments
| Mulching System | Optional MulchControl™ attachment |
| Rubber Floor Mat | Optional |
| Sun Shade | Optional |
| Mounted Sprayer | Not available L |
| Mounted Sprayer | Not available U.S. gal. |
| Protective Cover | Optional |
| Light Kit | Optional |
| Material Collection System | Two-bag cut-and-throw MCS |
| Material Collection System | 229 L |
| Material Collection System | 6.5 bu |
Seat
| Seat Back Height | 51 cm |
| Seat Back Height | 20 in. |
| Fore-Aft Adjustment | 7 cm |
| Fore-Aft Adjustment | 2.9 in. |
| Seat Suspension | Two springs |
Travel Speed
| Forward Speed | 11.3 km/h |
| Forward Speed | 7 mph |
| Reverse Speed | 5.6 km/h |
| Reverse Speed | 3.5 mph |
| Speed And Direction Control | Twin levers |
| Control Adjustment | 3 height, 11 positions |
Engine
| Engine Power | 16 kW |
| Engine Power | 21.5 hp |
| Engine Model Number | FR651V |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter |
| Lubrication | 2.1 L |
| Lubrication | 2.2 U.S. qt |
| Type | Overhead valve |
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 300 CCA |
| Choke/Speed Control | Separate levers |
| Cooling Method | Air |
| Fuel Tank Capacity | 11.4 L |
| Fuel Tank Capacity | 3 U.S. gal. |
| Fuel Gauge | Translucent tank |
Additional Information
| Manufacturing Location | Greeneville, Tennessee, USA |
| Date Collected | 10/03/2022 00:00:00 |
Power Take-Off (PTO)
| Type | Electric |
| Type | 142 Nm |
| Type | 105 lb-ft |
| Drive | V-belt |
Buyer's Notes
| Note 1 | Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels |
| Note 2 | Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial |
| Note 3 | Integrated park brake is automatically applied when steering levers are stowed outward |
| Warranty | 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drivetrain
| Dual Hydros | Hydro-Gear EZT-C with 1-in. (2.5-cm) axles |
