Features
Snow Removal and Yard Care Attachments
Snow removal and yard work are easy with support for a wide range of attachments. The front quick-hitch system allows fast, tool-free changes between a snow blower, front blade, or rotary broom, helping you adapt quickly to changing conditions. This versatility lets you handle seasonal tasks efficiently and keep your property looking its best year-round.

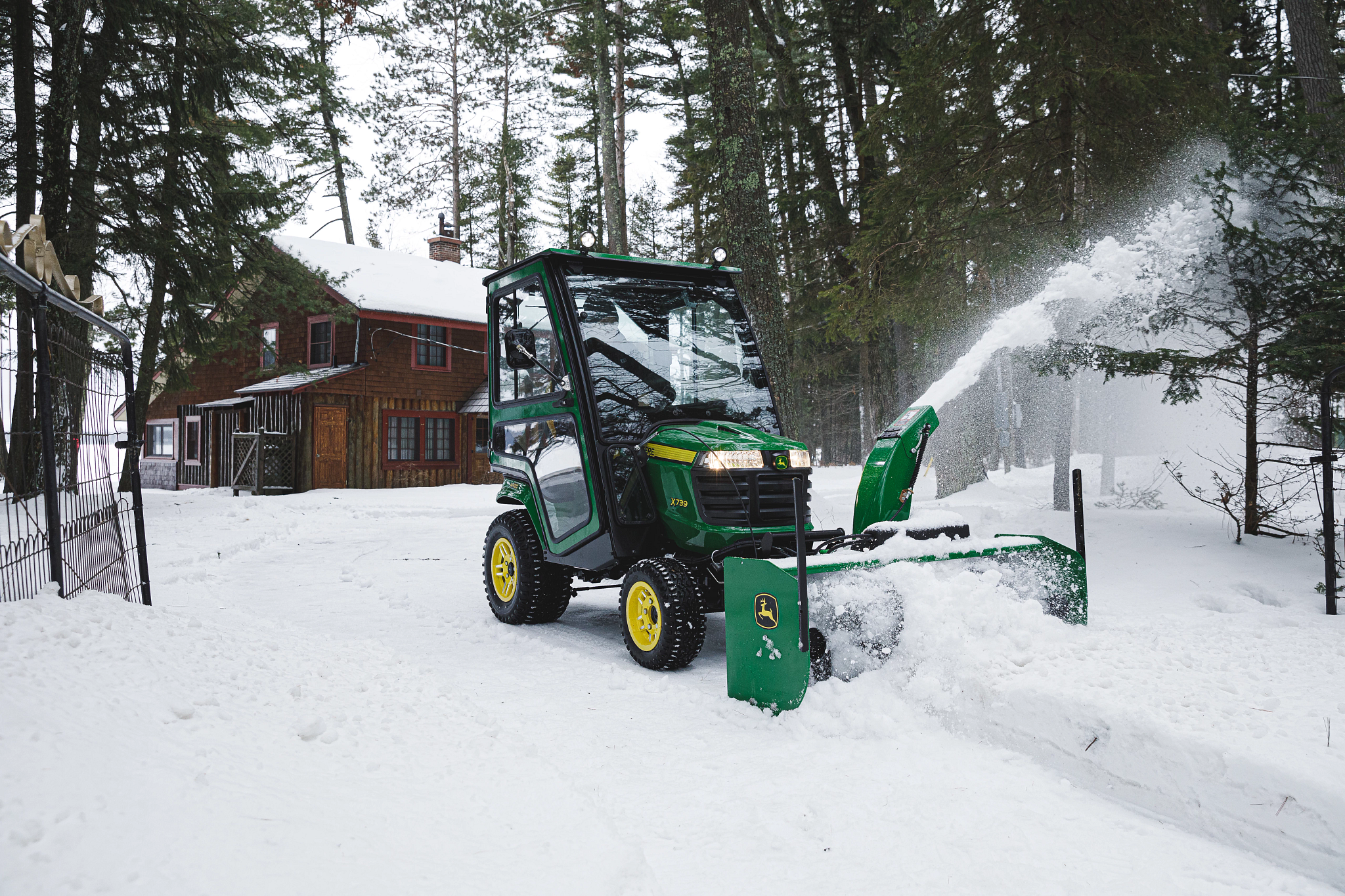

Image shows a 54-in. (137-cm) Snow Blower with optional cab on an X739 Tractor
Four-Wheel Power Steering and Hydraulic Lift
Power steering and hydraulic lift provide effortless automotive-like control. Combined with four-wheel power steer, these systems reduce operator fatigue, enhancing productivity by enabling a tight turning radius, helping you finish the job faster.

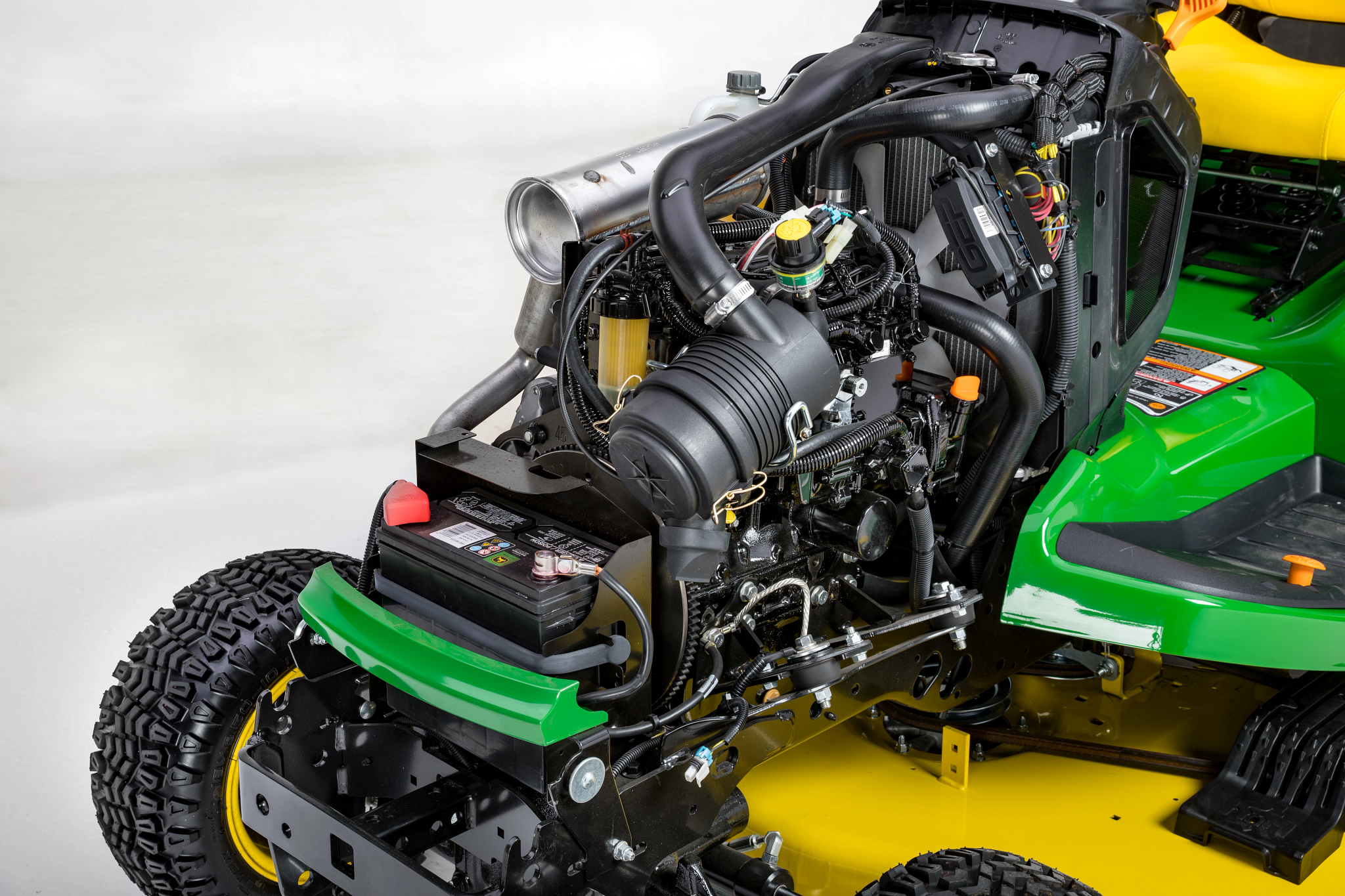

Liquid-Cooled Diesel Engine
The liquid-cooled, 3-cylinder diesel engine delivers strong, dependable power with exceptional fuel economy and long-lasting durability. Smooth, quiet operation and high torque make it well-suited for demanding mowing and commercial-grade tasks. Easy starting and consistent performance provide confidence and efficiency season after season.
Specifications
Mower Deck
| Type | Side discharge |
| Cutting Width | 122/137/152 cm |
| Cutting Width | 48/54/60 in. |
| Construction | Forged steel deck shell |
| Mower Wash Port | Yes |
| Mower Drive System | Hydraulic clutch, shaft |
| Mower Wheels | 48A, four and center front roller / 54 and 60 HC, four with optional center front roller |
| Mower Wheel Adjustment | Spring-loaded pin |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Seat
| Type | Two-piece adjustable seat with brand embroidery |
| Seat Back Height | 53.3 cm |
| Seat Back Height | 21 in. |
| Armrests | Optional |
| Fore-Aft Adjustment | 17.8 cm |
| Fore-Aft Adjustment | 7 in. |
| Seat Suspension | Six-position parallel arm |
Steering
| Type | Hydraulic power |
| Four-Wheel Steer | Yes |
| Steering Wheel | 35.6 cm |
| Steering Wheel | 14 in. |
| Tilt Steering Wheel | Standard, six position |
| Turning Radius | 53.3 cm |
| Turning Radius | 21 in. |
Buyer's Notes
| Notes | Styled alloy wheels are standard equipment One-piece hood for easy engine access Hydraulic modulated PTO clutch for smooth mower and implement engagement |
| Warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Chassis
| Frame | Welded heavy-duty |
| Primer/Paint | E-coat/powder |
| Weight Bracket | Standard front - holds up to four Quik-Tatch weights, 42 lb / 19 kg |
| Receiver Hitch | Yes, front |
| Front Axle | JDM BA8 nodular iron casting |
| Spindle Bushings | Metal, replaceable |
| Front Tires | 18x7-8 turf |
| Rear Tires | 26x10.5-12 turf |
| Hood Material | Noryl GTX902, painted |
| Fender Deck Material | Stamped steel |
| Floor Mats | Sure-grip rubber |
| Storage | Covered toolbox |
| Service Interval Decal | Yes |
| Fender Handles/Grips | Handles |
| Cup Holder | Yes |
| Equipment Mounting | Optional category 1 3-point hitch |
| Maximum Towing Capacity | 454 kg |
| Maximum Towing Capacity | 1000 lb. |
Optional Equipment
| Mowers | 48A, 54 HC, 60 HC |
| Rear Bagger | 670 L |
| Rear Bagger | 19 bu |
| Powered Material Collection | Power Flow, 7, 14, 19 bu / 250, 500, 670 L |
| Mulching System | Yes, MulchControl™ |
| Front Thatcher | 137.2 cm |
| Front Thatcher | 54 in. |
| Front Blade | 137.2 cm |
| Front Blade | 54 in. |
| Snow Blower | 137.2 cm |
| Snow Blower | 54 in. |
| Rotary Broom | 152.4 cm |
| Rotary Broom | 60 in. |
| Rotary Tiller | 121.9 cm |
| Rotary Tiller | 48 in. |
| 3-Point Hitch | Category 1 |
| Rear Power Take-Off | 540 rpm |
| Plow, Moldboard | 35.6 cm |
| Plow, Moldboard | 14 in. |
| Box Scraper | 121.9 cm |
| Box Scraper | 48 in. |
| Cultivator | 116.8 cm |
| Cultivator | 46 in. |
| Rear Blade | 152.4 cm |
| Rear Blade | 60 in. |
| Disk Harrow | 132.1 cm |
| Disk Harrow | 52 in. |
| Landscape Rake | 152.4 cm |
| Landscape Rake | 60 in. |
| Sprayer - Tow-Behind | 170.3 L |
| Sprayer - Tow-Behind | 45 U.S. gal. |
| Sprayer - Mounted | 94.6 L |
| Sprayer - Mounted | 25 U.S. gal. |
| Spreader - Tow-Behind | 79.4 kg |
| Spreader - Tow-Behind | 175 lb. |
| Spreader - Mounted | 57.7 kg |
| Spreader - Mounted | 125 lb. |
| Front Bumper | Standard bumper/weight bracket |
| Brush Guard | Yes |
| Weather Protection | Hard-side cab, weather enclosure |
| Bucket Holder | Yes, double bucket |
| Grass Striping | Grass groomer kit, 48-in. (122-cm) mower only |
| Tractor Shovel | 137.2 cm |
| Tractor Shovel | 54 in. |
| Front Loader | Not available |
| Tow-Behind Tools | 21 |
Lift System
| Lift System Type | Two-function hydraulic |
| Hydraulic Outlets | Four, standard |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 13.3 cm |
| Mower Cut Height - Maximum | 5.25 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Dimensions
| Height | 1384 mm |
| Height | 54.5 in. |
| Overall Length | 1905 mm |
| Overall Length | 75 in. |
| Wheelbase | 1384 mm |
| Wheelbase | 54.5 in. |
| Width Without Mower | 1195 mm |
| Width Without Mower | 47 in. |
| Weight | 452 kg |
| Weight | 997 lb. |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 500 CCA |
| Charging System | Engine-mounted alternator, regulated |
| Charging System | 40 amp |
| Engine Starter | Solenoid shift |
| Hour Meter | Yes |
| Headlights | Two standard, halogen, 37 W |
| Taillights Or Reflector | Taillights |
| Backup Lights | Yes |
| Rear Work Lights | Yes |
| 12-V Outlet | Yes |
Fuel System
| Type | Diesel |
| Fuel Delivery | In-line indirect injection |
| Fuel Gauge | Gauge on dash |
| Fuel Tank Location | Rear |
| Fuel Fill Opening | On left fender |
| Fuel Fill Opening | 7.6 cm |
| Fuel Fill Opening | 3 in. |
| Fuel Tank Capacity | 19.7 L |
| Fuel Tank Capacity | 5.2 U.S. gal. |
Safety
| Meets ANSI Standard | Yes |
| Meets OPEI Standard | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Safety Video | Yes |
Transaxle
| Transaxle Type | K90 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Cruise Control | Yes |
| Oil Cooler | Yes |
| Oil Filter | Replaceable suction side 10 micron |
| Differential Lock | Standard |
| Forward Speed | 13.7 km/h |
| Forward Speed | 8.5 mph |
| Reverse Speed | 9.7 km/h |
| Reverse Speed | 6 mph |
| Brakes | Internal wet disc |
Additional Information
| Manufacturing Location | Horicon, Wisconsin, USA |
| Date Collected | 08/01/2023 00:00:00 |
Engine
| Engine Power | 17.9 kW |
| Engine Power | 24 hp |
| Displacement | 993 cc |
| Displacement | 60.6 cu in. |
| Engine Manufacturer/Model | 3TNM74F |
| Engine Type | Diesel, overhead valve, full-pressure lube, oil filter |
| Cylinders | Three, cast-iron liners |
| Governor | Mechanical |
| Choke/Speed Control | One lever |
| Cooling Method | Liquid |
| Air Cleaner | Paper dry-type with primary and secondary elements |
| Oil Change | No tools |
Mower Attachability
| Type | Roll under tractor (48A) / Drive-over deck (54, 60 HC) |
| Front Draft Arms | Overcenter |
| Rear Draft Arms | V-align |
| Mower Wheels Rotate | Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC) |
| Drive System | Shaft or AutoConnect |
