Features
Power Steering and Hydraulic Lift
Power steering and a hydraulic lift provide effortless, automotive-like control. These systems reduce operator fatigue, enhance productivity, and enable a tight turning radius, which is perfect for easy maneuverability.
Image shows an X584 Lawn Tractor with Power Steering
48-in. Accel Deep™ Mower Deck With Optional MulchControl™
The 48-in. Accel Deep Mower Deck offers a stamped-steel, deep flat-top design that ensures excellent cut quality, productivity, and versatility. With the optional one-touch technology MulchControl system, quickly transition from mulching performance, side discharge, or bagging modes. This system creates a beautiful lawn, reduces fertilizer needs, and prevents clippings from blowing onto operators or driveways.

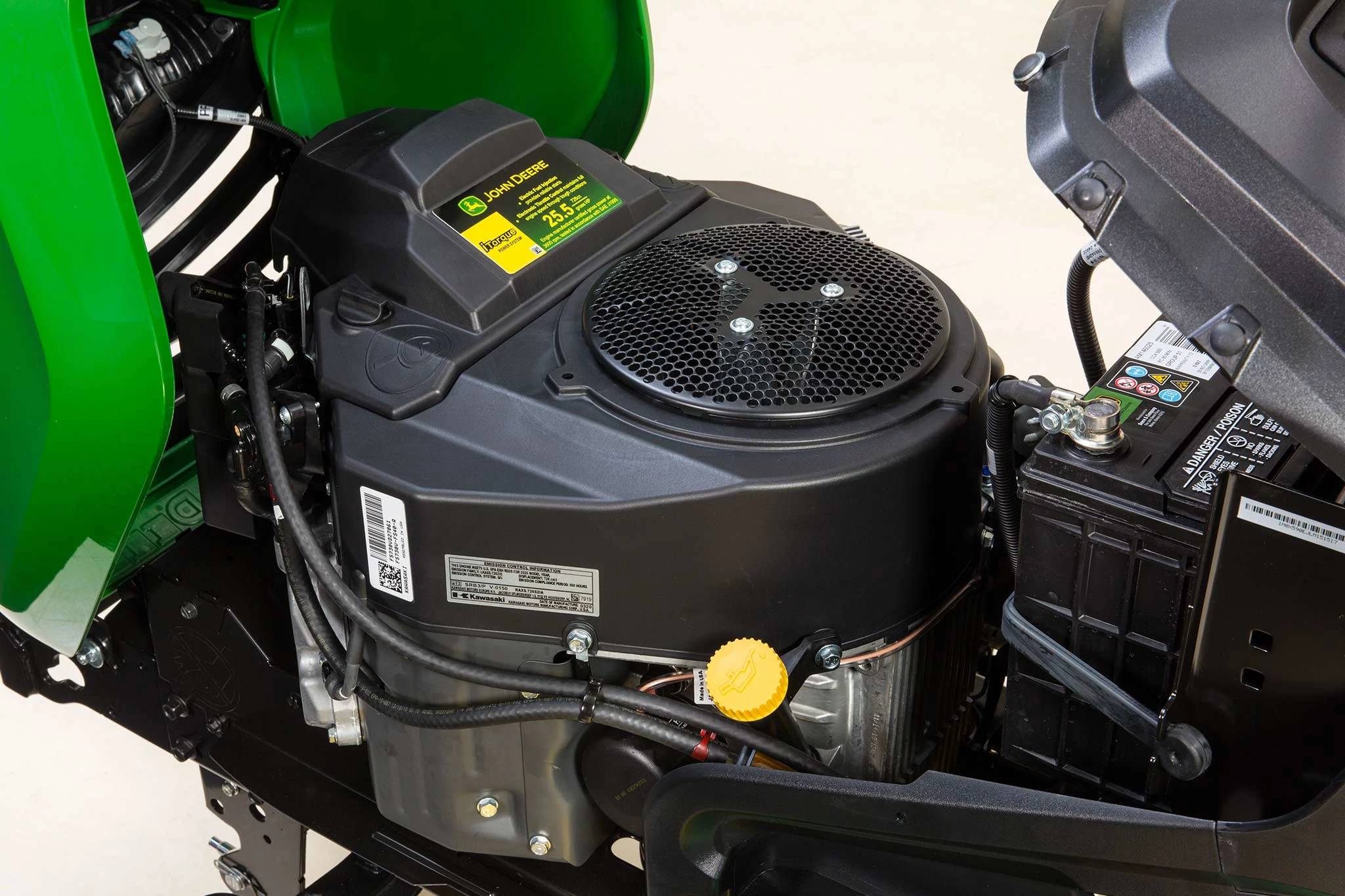

Powerful V-Twin With Electronic Fuel Injection
Electronic fuel injection and electronic throttle provide quick, reliable starts and smooth, responsive power without the need for a choke. The system automatically adjusts engine performance to maintain consistent speed and cut quality, even in thick grass, making mowing easier, more efficient, and more enjoyable.
Specifications
Mower Deck
| Type | Side discharge |
| Cutting Width | 122 cm |
| Cutting Width | 48 in. |
| Construction | Forged steel deck shell |
| Mower Deck Material | 10 gauge |
| Mower Deck Material | 3.4 mm |
| Mower Deck Material | 0.135 in. |
| Mower Wash Port | Yes |
| Mower Drive System | Electric power take-off (PTO) clutch, in-line belt |
| Mower Wheels | Four |
| Mower Wheel Adjustment | Seven-position, spring-loaded pin |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Seat
| Type | Cut-and-sewn high-back |
| Seat Back Height | 53 cm |
| Seat Back Height | 21 in. |
| Armrests | Optional |
| Fore-Aft Adjustment | 17 cm |
| Fore-Aft Adjustment | 6.6 in. |
| Seat Suspension | Six-position parallel arm |
Steering
| Type | Power, hydraulic |
| Four-Wheel Steer | Not available on this model |
| Steering Wheel | 35.6 cm |
| Steering Wheel | 14 in. |
| Tilt Steering Wheel | Standard, five position |
| Turning Radius | 55.9 cm |
| Turning Radius | 22 in. |
| Uncut Circle Radius | 68.6 cm |
| Uncut Circle Radius | 27 in. |
Buyer's Notes
| Notes | Heavy-duty garden tractor transaxle Convenient power steering and hydraulic lift Built-in front and rear weight brackets |
| Warranty | 4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Chassis
| Frame | Welded heavy-duty |
| Primer/Paint | E-coat/powder |
| Weight Bracket | Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb / 19 kg |
| Receiver Hitch | No |
| Front Axle | Cast iron front axle, front wheel ball bearings |
| Spindle Bushings | Metal, replaceable |
| Front Tires | 16x6.5-8 turf |
| Rear Tires | 24x12-12 turf |
| Hood Material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender Deck Material | Stamped steel |
| Floor Mats | Sure-grip rubber |
| Storage | Yes, covered toolbox |
| Service Interval Decal | Yes |
| Fender Handles/Grips | Handles |
| Cup Holder | Yes |
| Equipment Mounting | Yes, heavy duty |
| Maximum Towing Capacity | 363 kg |
| Maximum Towing Capacity | 800 lb. |
Optional Equipment
| Mowers | 48X option |
| Rear Bagger | 670 L |
| Rear Bagger | 19 bu |
| Powered Material Collection | Power Flow™ blower |
| Mulching System | Yes, MulchControl™ |
| Front Thatcher | 137.2 cm |
| Front Thatcher | 54 in. |
| Front Blade | 121.9 cm |
| Front Blade | 48 in. |
| Snow Blower | 119.4 cm |
| Snow Blower | 47 in. |
| Rotary Tiller | 106.7 cm |
| Rotary Tiller | 42 in. |
| Sleeve Hitch | Yes, implements include box scraper, rear blade, plow, disk, and cultivator |
| Sprayer - Tow-Behind | 170.3 L |
| Sprayer - Tow-Behind | 45 U.S. gal. |
| Sprayer - Mounted | 94.6 L |
| Sprayer - Mounted | 25 U.S. gal. |
| Spreader - Tow-Behind | 79.4 kg |
| Spreader - Tow-Behind | 175 lb. |
| Spreader - Mounted | 57.7 kg |
| Spreader - Mounted | 125 lb. |
| Front Bumper | Standard front bumper/weight bracket |
| Brush Guard | Yes |
| Weather Protection | Weather enclosure |
| Sun Canopy | Yes |
| Bucket Holder | Yes, double bucket |
| Grass Striping | Lawn striping kit |
| Tractor Shovel | 101.6 cm |
| Tractor Shovel | 40 in. |
| Tow-Behind Tools | 19 |
Lift System
| Lift System Type | Hydraulic |
| Hydraulic Outlets | No |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 10.2 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Dimensions
| Height | 1338 mm |
| Height | 52.7 in. |
| Overall Length | 1966 mm |
| Overall Length | 77.4 in. |
| Wheelbase | 1300 mm |
| Wheelbase | 51.2 in. |
| Width With Mower | 1590 mm |
| Width With Mower | 62.6 in. |
| Width With Mower (Deflector Raised For Storage) | 1335 mm |
| Width With Mower (Deflector Raised For Storage) | 52.6 in. |
| Width Without Mower | 1034 mm |
| Width Without Mower | 40.7 in. |
| Weight | 352 kg |
| Weight | 776 lb. |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 340 CCA |
| Charging System | Flywheel alternator, regulated |
| Charging System | 24 amp |
| Engine Starter | Solenoid shift |
| Hour Meter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights Or Reflector | Reflectors |
| Backup Lights | No |
| Rear Work Lights | No |
| 12-V Outlet | Yes |
Fuel System
| Type | Gasoline |
| Fuel Delivery | Open-loop electronic fuel injection (EFI) |
| Fuel Gauge | Gauge on dash |
| Fuel Tank Location | Rear |
| Fuel Fill Opening | On left fender |
| Fuel Fill Opening | 7.6 cm |
| Fuel Fill Opening | 3 in. |
| Fuel Tank Capacity | 16.7 L |
| Fuel Tank Capacity | 4.4 U.S. gal. |
Safety
| Meets ANSI Standard | Yes |
| Meets OPEI Standard | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Safety Video | Yes |
Transaxle
| Transaxle Type | K72 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Cruise Control | Yes, button on dash |
| Oil Cooler | Fins and fan on transaxle |
| Oil Filter | Yes, replaceable |
| Differential Lock | Standard |
| Forward Speed | 11.6 km/h |
| Forward Speed | 7.2 mph |
| Reverse Speed | 8.4 km/h |
| Reverse Speed | 5.2 mph |
| Brakes | Internal wet disc |
Additional Information
| Manufacturing Location | Horicon, Wisconsin, USA |
| Date Collected | 10/03/2022 00:00:00 |
Engine
| Engine Power | 19 kW |
| Engine Power | 25.5 hp |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Engine Manufacturer/Model | FS730 EFI |
| Engine Type | Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Constant-speed electronic throttle control |
| Choke/Speed Control | No choke required |
| Cooling Method | Air |
| Air Cleaner | Dry, replaceable with foam precleaner |
| Oil Change | No-tools oil drain with replaceable filter |
Mower Attachability
| Type | Roll under tractor |
| Front Draft Arms | Attached with spring pins at two points |
| Rear Draft Arms | Quick-pull pins |
| Mower Wheels Rotate | Yes, 90 degrees for easy mower removal |
| Drive System | Dual belt |
