Features

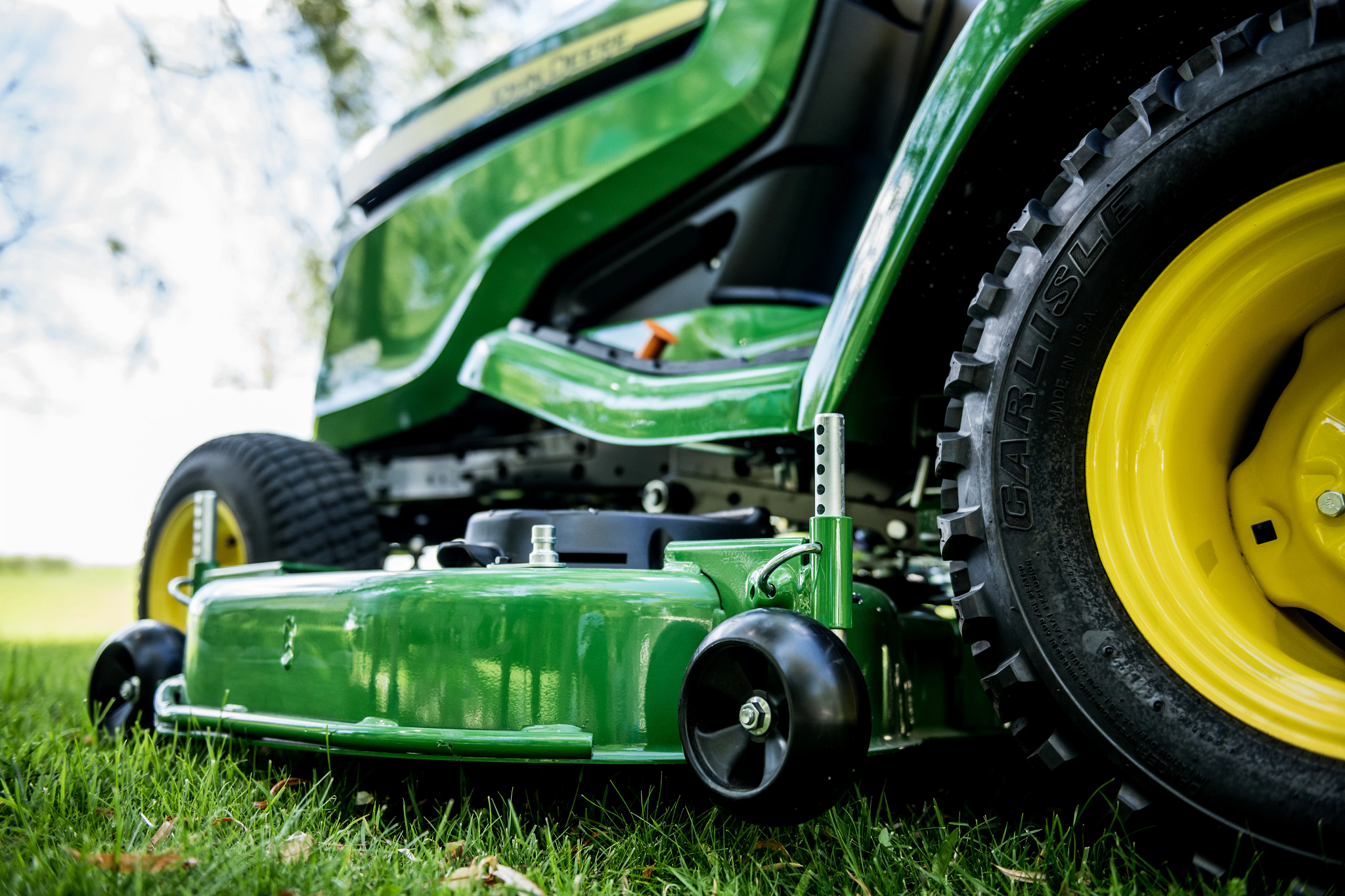

54-in. Accel Deep™ Mower Deck With Optional MulchControl™
The 54-in. Accel Deep Mower Deck offers a stamped-steel, deep flat-top design that ensures excellent cut quality, productivity, and versatility. With the optional one-touch technology MulchControl system, quickly transition from mulching performance, side discharge, or bagging modes. This system creates a beautiful lawn, reduces fertilizer needs, and prevents clippings from blowing onto operators or driveways.
Comfortable and Easy to Operate
An 18-in. (46-cm), high-back cut-and-sewn seat with adjustable suspension delivers a comfortable, smooth ride and excellent support. Instrument display has the look and feel of a modern automobile, controls are simple and intuitive, and Twin Touch™ foot pedals with a hydrostatic transmission allow you to maneuver with precision without shifting.
Snow Removal Capability
The exclusive four‑wheel‑steer system delivers tight turns and precise control, making it easier to clear around driveways, sidewalks, and obstacles. A front‑mounted snow blower moves snow efficiently, helping you finish faster and comfortably.
Specifications
Mower Deck
| Type | Side discharge |
| Cutting Width | 137 cm |
| Cutting Width | 54 in. |
| Construction | Forged steel deck shell |
| Mower Deck Material | 10 gauge |
| Mower Deck Material | 3.4 mm |
| Mower Deck Material | 0.135 in. |
| Mower Wash Port | Yes |
| Mower Drive System | Electric power take-off (PTO) clutch, in-line belt |
| Mower Wheels | Four |
| Mower Wheel Adjustment | Seven-position, spring-loaded pin |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Seat
| Type | Cut-and-sewn high-back |
| Seat Back Height | 46 cm |
| Seat Back Height | 18 in. |
| Armrests | Optional |
| Fore-Aft Adjustment | 17 cm |
| Fore-Aft Adjustment | 6.6 in. |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
Steering
| Type | Manual, sector and pinion |
| Four-Wheel Steer | Not available on this model |
| Steering Wheel | 35.6 cm |
| Steering Wheel | 14 in. |
| Tilt Steering Wheel | No |
| Turning Radius | 40.6 cm |
| Turning Radius | 16 in. |
| Uncut Circle Radius | 45.7 cm |
| Uncut Circle Radius | 18 in. |
Buyer's Notes
| Notes | Fully enclosed, molded-in color material reduces sound, will not rust or dent; Durable E-coat primer and powder-paint finish |
| Warranty | 4 year/300 hour bumper-to-bumper |
Chassis
| Frame | Welded heavy-duty |
| Primer/Paint | E-coat/powder |
| Weight Bracket | Standard rear, optional front |
| Receiver Hitch | No |
| Front Axle | Cast iron front axle, front wheel ball bearings |
| Spindle Bushings | No |
| Front Tires | 15x6.5-8 |
| Rear Tires | 22x11-10 |
| Hood Material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender Deck Material | Stamped steel |
| Floor Mats | Sure-grip rubber |
| Storage | Yes, under seat and covered toolbox |
| Service Interval Decal | Yes |
| Fender Handles/Grips | No |
| Cup Holder | Yes |
| Equipment Mounting | Yes, heavy duty |
| Maximum Towing Capacity | 272 kg |
| Maximum Towing Capacity | 600 lb. |
Optional Equipment
| Mowers | 54A (standard) |
| Rear Bagger | 247 L |
| Rear Bagger | 7 bu |
| Powered Material Collection | Power Flow™ blower |
| Mulching System | Yes, MulchControl™ |
| Front Thatcher | 96.5 cm |
| Front Thatcher | 38 in. |
| Front Blade | 111.8 cm |
| Front Blade | 44 in. |
| Snow Blower | 111.8 cm |
| Snow Blower | 44 in. |
| Sprayer - Tow-Behind | 56.8 L |
| Sprayer - Tow-Behind | 15 U.S. gal. |
| Sprayer - Mounted | 94.6 L |
| Sprayer - Mounted | 25 U.S. gal. |
| Spreader - Tow-Behind | 57.7 kg |
| Spreader - Tow-Behind | 125 lb. |
| Spreader - Mounted | 57.7 kg |
| Spreader - Mounted | 125 lb. |
| Front Bumper | Styled bumper option |
| Brush Guard | Yes |
| Weather Protection | Weather enclosure |
| Sun Canopy | Yes |
| Bucket Holder | Yes, double bucket |
| Grass Striping | Lawn striping kit |
| Tractor Shovel | 101.6 cm |
| Tractor Shovel | 40 in. |
| Tow-Behind Tools | 16 |
Lift System
| Lift System Type | Foot pedal with adjustable spring assist |
| Hydraulic Outlets | No |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 10.2 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Dimensions
| Height | 1244 mm |
| Height | 49 in. |
| Overall Length | 1836 mm |
| Overall Length | 72.3 in. |
| Wheelbase | 1255 mm |
| Wheelbase | 49.4 in. |
| Width With Mower | 1737 mm |
| Width With Mower | 68.4 in. |
| Width With Mower (Deflector Raised For Storage) | 1481 mm |
| Width With Mower (Deflector Raised For Storage) | 58.3 in. |
| Width Without Mower | 1000 mm |
| Width Without Mower | 39.4 in. |
| Weight | 299 kg |
| Weight | 659 lb. |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 340 CCA |
| Charging System | Flywheel alternator, regulated |
| Charging System | 12 amp |
| Engine Starter | Bendix |
| Hour Meter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights Or Reflector | No |
| Backup Lights | No |
| Rear Work Lights | No |
| 12-V Outlet | Optional |
Fuel System
| Type | Gasoline |
| Fuel Delivery | Pulse pump, carburetor |
| Fuel Gauge | Gauge on dash |
| Fuel Tank Location | Rear |
| Fuel Fill Opening | On left fender |
| Fuel Fill Opening | 7.6 cm |
| Fuel Fill Opening | 3 in. |
| Fuel Tank Capacity | 12.5 L |
| Fuel Tank Capacity | 3.3 U.S. gal. |
Safety
| Meets ANSI Standard | Yes |
| Meets OPEI Standard | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Safety Video | Yes |
Transaxle
| Transaxle Type | K58 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Cruise Control | Yes, button on dash |
| Oil Cooler | Fins and fan on transaxle |
| Oil Filter | Internal, not replaceable |
| Differential Lock | No |
| Forward Speed | 10 km/h |
| Forward Speed | 6.2 mph |
| Reverse Speed | 5.6 km/h |
| Reverse Speed | 3.5 mph |
| Brakes | Internal wet disc |
Additional Information
| Manufacturing Location | Horicon, Wisconsin, USA |
| Date Collected | 10/03/2022 00:00:00 |
Engine
| Engine Power | 17.2 kW |
| Engine Power | 23 hp |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Engine Manufacturer/Model | FR691V |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/Speed Control | Separate levers, automatic choke return |
| Cooling Method | Air |
| Air Cleaner | Dry, replaceable |
| Oil Change | No-tools oil drain with replaceable filter |
Mower Attachability
| Type | Roll under tractor |
| Front Draft Arms | Attached with spring pins at two points |
| Rear Draft Arms | Quick-pull pins |
| Mower Wheels Rotate | Yes, 90 degrees for easy mower removal |
| Drive System | Dual belt |
