Features

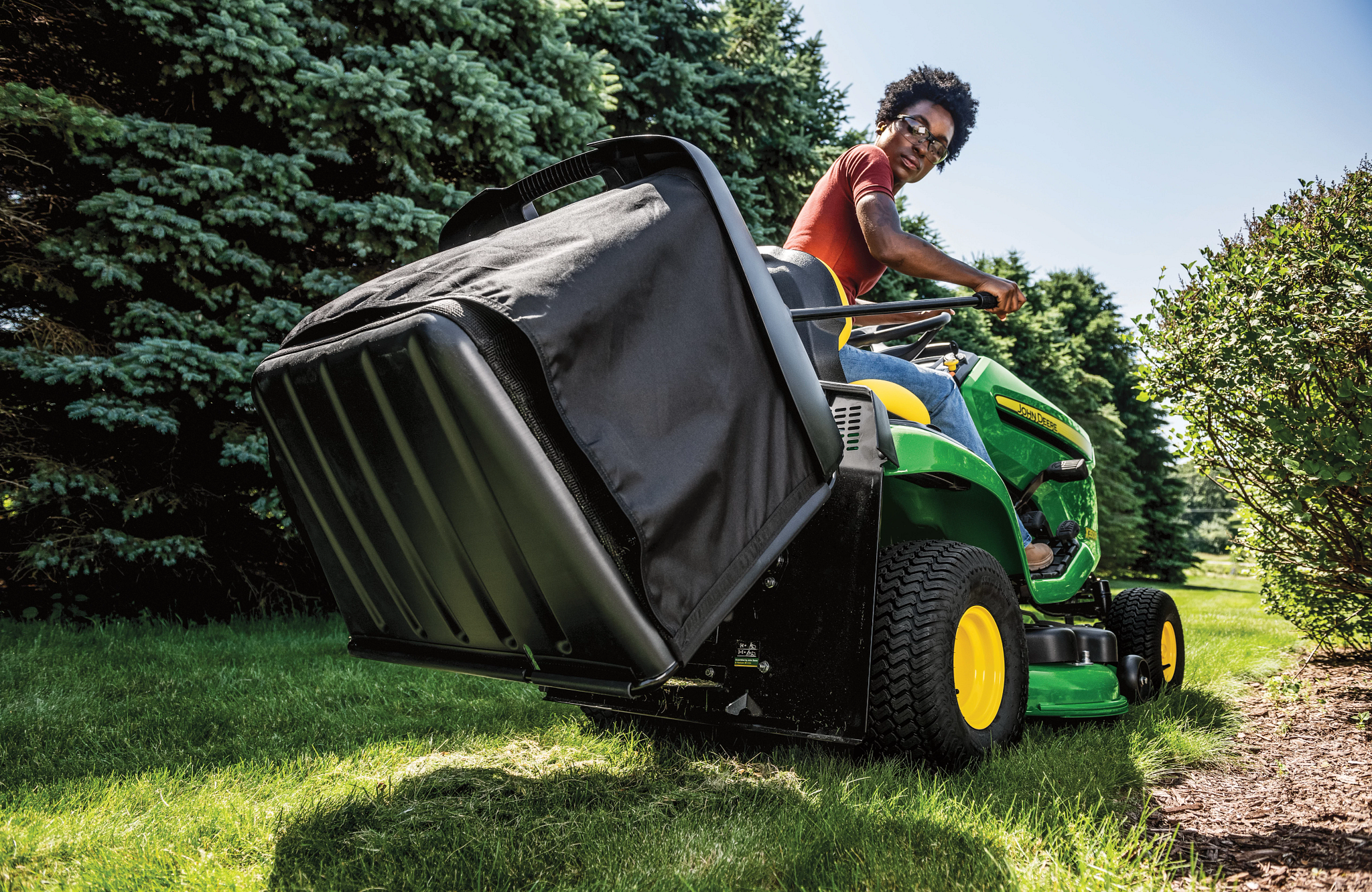

Rear Hopper with Large Capacity
The rear hopper has an 8.5-bushel (300-liter) capacity, allowing for high-volume collection of grass clippings. The hopper is made from durable materials and is easy to empty from the operator's seat. It's designed to seal effectively, minimizing dust and debris escaping.
Snow Removal Capability
The exclusive four‑wheel‑steer system delivers tight turns and precise control, making it easier to clear around driveways, sidewalks, and obstacles. A front‑mounted snow blower moves snow efficiently, helping you finish faster and comfortably.
Automotive Style Instrument Panel
Easy-to-read instrument panel keeps all of the information you need to mow at your best. Easy-to-read fuel gauge and battery voltage level indicator ensure you won’t get stuck far from home while a tachometer makes sure the engine RPMs are optimal for the best mowing performance. And always keep your tractor in top shape by help of the hour meter to tell you when maintenance is required.
Specifications
Mower Deck
| Type | Rear discharge, rear collect, mulch |
| Cutting Width | 107 cm |
| Cutting Width | 42 in. |
| Construction | Stamped steel deck shell |
| Mower Deck Material | 11 gauge |
| Mower Deck Material | 3 mm |
| Mower Deck Material | 0.12 in. |
| Mower Wash Port | Yes |
| Mower Drive System | Electric power take-off (PTO) clutch, in-line belt |
| Mower Wheels | Three |
| Mower Wheel Adjustment | Four-position, tool required |
| Mower Level Adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Seat
| Type | Open-back design with grasp |
| Seat Back Height | 38 cm |
| Seat Back Height | 15 in. |
| Armrests | No |
| Fore-Aft Adjustment | 17 cm |
| Fore-Aft Adjustment | 6.6 in. |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
Steering
| Type | Manual, sector and pinion |
| Four-Wheel Steer | Not available on this model |
| Steering Wheel | 35.6 cm |
| Steering Wheel | 14 in. |
| Tilt Steering Wheel | No |
| Turning Radius | 42 cm |
| Turning Radius | 16.5 in. |
| Uncut Circle Radius | 71.1 cm |
| Uncut Circle Radius | 28 in. |
Buyer's Notes
| Notes | Includes rear hopper and mulch plug, optional rear deflector available Fully enclosed, molded-in color material reduces sound, will not rust or dent Durable E-coat primer and powder-paint finish |
| Warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Chassis
| Frame | Welded heavy-duty |
| Primer/Paint | E-coat/powder |
| Weight Bracket | Optional front |
| Receiver Hitch | No |
| Front Axle | Cast iron front axle, front wheel ball bearings |
| Spindle Bushings | No |
| Front Tires | 15x6-6 |
| Rear Tires | 20x10-8 |
| Hood Material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Fender Deck Material | Stamped steel |
| Floor Mats | Sure-grip rubber |
| Storage | Yes, under seat and covered toolbox |
| Service Interval Decal | Yes |
| Fender Handles/Grips | No |
| Cup Holder | Yes |
| Equipment Mounting | Yes, front |
| Maximum Towing Capacity | 272 kg |
| Maximum Towing Capacity | 600 lb. |
Optional Equipment
| Mowers | Rear discharge, rear collect (standard), 42 in. / 107 cm |
| Rear Bagger | 300 L |
| Rear Bagger | 8.5 bu |
| Mulching System | Standard mulch plug |
| Front Thatcher | 137.2 cm |
| Front Thatcher | 54 in. |
| Front Blade | 111.8 cm |
| Front Blade | 44 in. |
| Snow Blower | 111.8 cm |
| Snow Blower | 44 in. |
| Sprayer - Tow-Behind | 94.6 L |
| Sprayer - Tow-Behind | 25 U.S. gal. |
| Spreader - Tow-Behind | 79.4 kg |
| Spreader - Tow-Behind | 175 lb. |
| Front Bumper | Styled bumper option |
| Brush Guard | Yes |
| Grass Striping | Lawn striping kit |
| Tractor Shovel | 101.6 cm |
| Tractor Shovel | 40 in. |
| Tow-Behind Tools | 16 |
Lift System
| Lift System Type | Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use) |
| Hydraulic Outlets | No |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 9.5 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | Yes |
Dimensions
| Height | 1171 mm |
| Height | 46.1 in. |
| Overall Length | 2468 mm |
| Overall Length | 97.2 in. |
| Wheelbase | 1275 mm |
| Wheelbase | 50.2 in. |
| Width With Mower | 1112 mm |
| Width With Mower | 43.8 in. |
| Width Without Mower | 962 mm |
| Width Without Mower | 37.9 in. |
| Weight | 293 kg |
| Weight | 646 lb. |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 340 CCA |
| Charging System | Flywheel alternator, regulated |
| Charging System | 12 amp |
| Engine Starter | Bendix |
| Hour Meter | Yes |
| Headlights | Two standard, incandescent, 27 W |
| Taillights Or Reflector | No |
| Backup Lights | No |
| Rear Work Lights | No |
| 12-V Outlet | Optional |
Fuel System
| Type | Gasoline |
| Fuel Delivery | Pulse pump, carburetor |
| Fuel Gauge | Low fuel indicator |
| Fuel Tank Location | Rear |
| Fuel Fill Opening | On left fender |
| Fuel Fill Opening | 7.6 cm |
| Fuel Fill Opening | 3 in. |
| Fuel Tank Capacity | 7.6 L |
| Fuel Tank Capacity | 2 U.S. gal. |
Safety
| Meets ANSI Standard | Yes |
| Meets OPEI Standard | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Safety Video | Yes |
Transaxle
| Transaxle Type | K46 hydrostatic integrated with transaxle |
| Transaxle Control | Twin Touch™ pedals |
| Cruise Control | Yes, button on dash |
| Oil Cooler | Fins and fan on transaxle |
| Oil Filter | Internal, not replaceable |
| Differential Lock | No |
| Forward Speed | 8.5 km/h |
| Forward Speed | 5.3 mph |
| Reverse Speed | 6.4 km/h |
| Reverse Speed | 4 mph |
| Brakes | Internal wet disc |
Additional Information
| Manufacturing Location | Horicon, Wisconsin, USA |
| Date Collected | 10/03/2022 00:00:00 |
Engine
| Engine Power | 16 kW |
| Engine Power | 21.5 hp |
| Displacement | 726 cc |
| Displacement | 44.3 cu in. |
| Engine Manufacturer/Model | FR651V |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/Speed Control | Separate levers, automatic choke return |
| Cooling Method | Air |
| Air Cleaner | Dry, replaceable |
| Oil Change | No-tools oil drain with replaceable filter |
Mower Attachability
| Type | Slide under tractor |
| Front Draft Arms | Attached with spring pins at two points |
| Rear Draft Arms | Two pins and spring clips |
| Mower Wheels Rotate | No |
| Drive System | Dual belt |
