Features

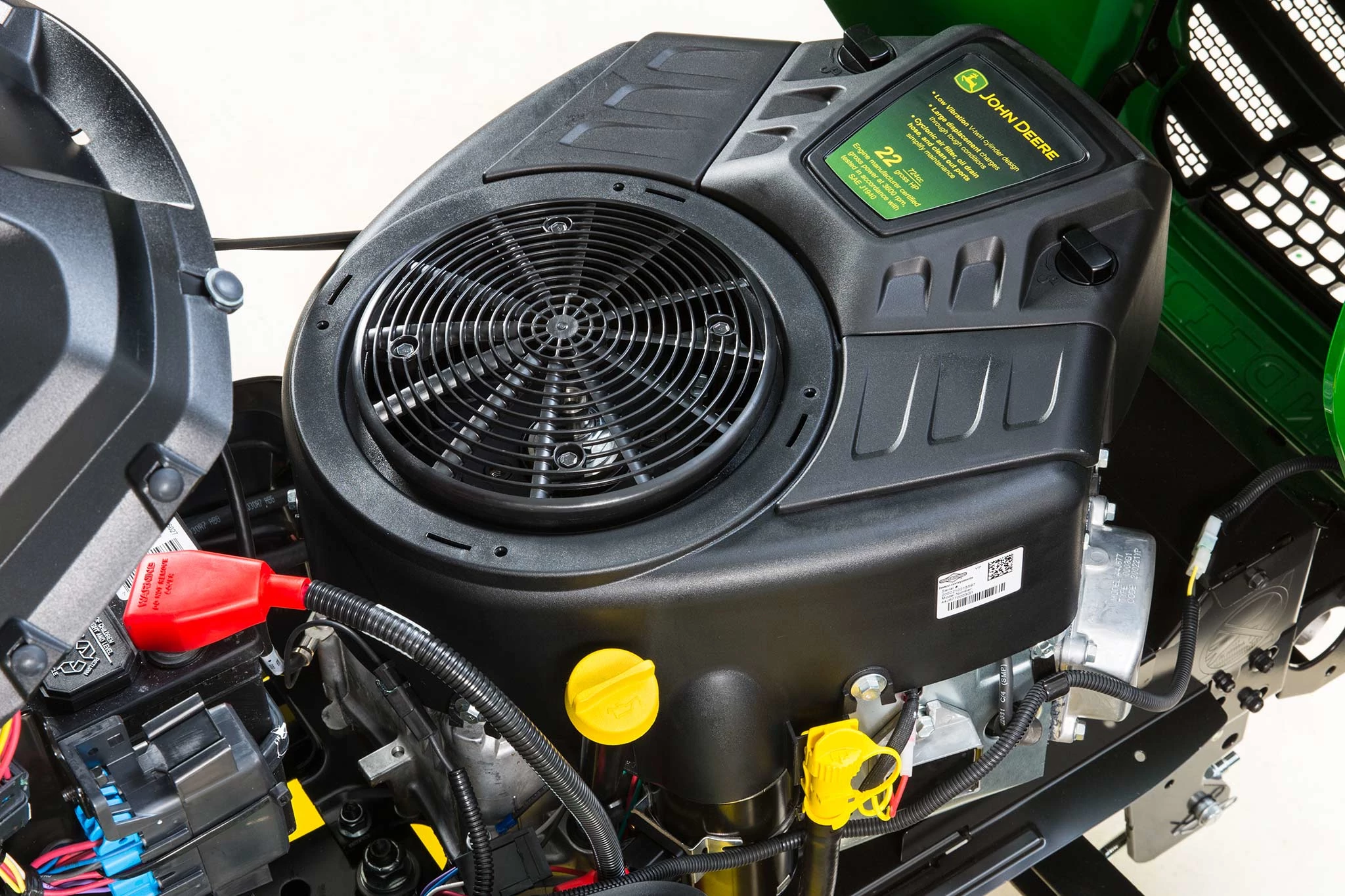

Powerful V-Twin
Equipped with a 22-hp (16.4-kW) V-twin engine, the S220 offers robust performance for smooth mowing, mulching, and bagging. The engine features electronic ignition for quick starts, cast-iron cylinder liners for longevity, and is designed for lower vibration and better sound.
Accel Deep™ Mower Deck Design
The 42-in. or 48-in. Accel Deep™ Mower Deck with optional MulchControl™ features a deep, flat-top design that provides excellent cut quality, even at faster mowing speeds or in tall grass. The deck's stamped-steel design allows for optimal clippings dispersion and is compatible with both mulching and bagging functionalities.

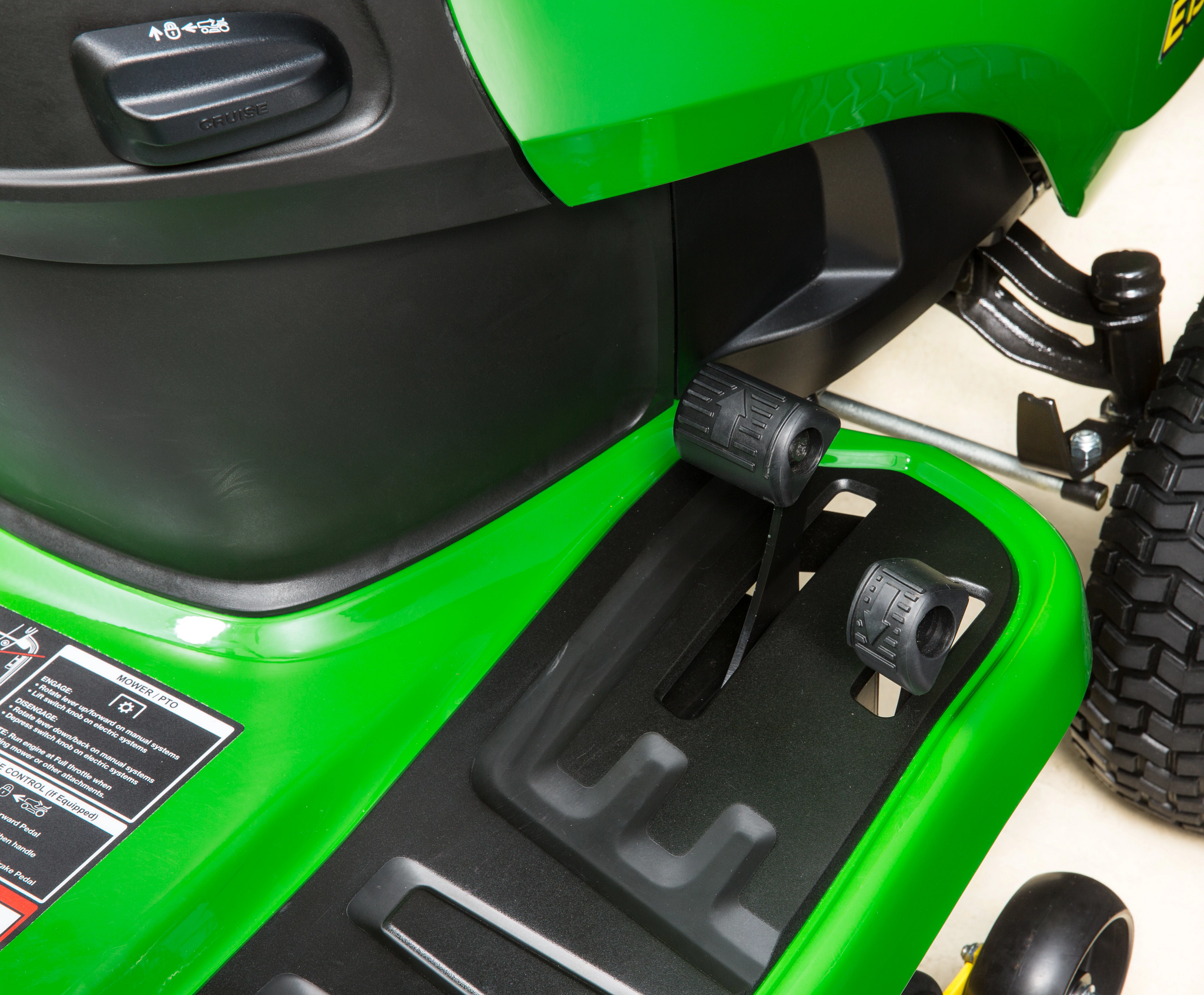

Hydrostatic/Automatic Drive Transmission
The S220 Lawn Tractor includes a Kanzaki® Tuff Torq® hydrostatic transmission which offers an infinite choice of ground speeds. This allows for easy direction changes without lifting your foot off the platform, providing superior operational comfort and flexibility.
Specifications
Mower Deck
| Type | Side discharge |
| Cutting Width | 107 cm |
| Cutting Width | 42 in. |
| Construction | Stamped steel deck shell |
| Mower Deck Material | 12 gauge |
| Mower Deck Material | 2.7 mm |
| Mower Deck Material | 0.105 in. |
| Mower Wash Port | Yes, with hose end |
| Mower Drive System | Manual power take-off (PTO) clutch |
| Mower Wheels | Two |
| Mower Wheel Adjustment | One bolt |
| Mower Level Adjustment | Easy-level deck |
Seat
| Type | Two-piece with open-back |
| Seat Back Height | 38.1 cm |
| Seat Back Height | 15 in. |
| Armrests | No |
| Fore-Aft Adjustment | 14 cm |
| Fore-Aft Adjustment | 5.5 in. |
| Seat Suspension | Tilt, two coil springs |
Steering
| Type | Sector and pinion with single drag link and tie rod |
| Four-Wheel Steer | Not available on this model |
| Steering Wheel | 30.5 cm |
| Steering Wheel | 12 in. |
| Tilt Steering Wheel | No |
| Turning Radius | 45.7 cm |
| Turning Radius | 18 in. |
| Uncut Circle Radius | 61 cm |
| Uncut Circle Radius | 24 in. |
Buyer's Notes
| Notes | Premium V-twin cyclonic engine; Productive Accel Deep™ mower deck; 3-year/200-hour warranty |
| Warranty | 3-year/200-hour bumper-to-bumper |
Chassis
| Frame | Full-length welded steel |
| Primer/Paint | E-coat/powder |
| Weight Bracket | Optional rear |
| Receiver Hitch | No |
| Front Axle | Cast iron front axle, front wheel sealed ball bearings |
| Spindle Bushings | No |
| Front Tires | 15x6-6 |
| Rear Tires | 20x10-8 |
| Hood Material | Molded-in color material reduces sound, will not rust or dent |
| Fender Deck Material | Stamped steel |
| Floor Mats | Yes, with debris removing channels |
| Storage | Storage tray with cover |
| Service Interval Decal | Yes |
| Fender Handles/Grips | No |
| Cup Holder | Yes |
| Equipment Mounting | CargO Mount™ system |
| Maximum Towing Capacity | 227 kg |
| Maximum Towing Capacity | 500 lb. |
Optional Equipment
| Rear Bagger | 229 L |
| Rear Bagger | 6.5 bu |
| Mulching System | Yes, MulchControl™ |
| Front Blade | 116.8 cm |
| Front Blade | 46 in. |
| Snow Blower | 111.8 cm |
| Snow Blower | 44 in. |
| Sprayer - Tow-Behind | 56.8 L |
| Sprayer - Tow-Behind | 15 U.S. gal. |
| Spreader - Tow-Behind | 57.7 kg |
| Spreader - Tow-Behind | 125 lb. |
| Front Bumper | Included |
| Weather Protection | Weather enclosure |
| Sun Canopy | Sun canopy |
| Bucket Holder | Yes, single bucket |
| Grass Striping | Lawn striping kit |
| Tow-Behind Tools | 16 |
Lift System
| Lift System Type | Spring-assisted hand-grip lever |
| Hydraulic Outlets | No |
| Mower Cut Height - Minimum | 2.5 cm |
| Mower Cut Height - Minimum | 1 in. |
| Mower Cut Height - Maximum | 10.2 cm |
| Mower Cut Height - Maximum | 4 in. |
| Cut Height Increments | 0.64 cm |
| Cut Height Increments | 0.25 in. |
| Preset Cut Height | No |
Dimensions
| Height | 1143 mm |
| Height | 45 in. |
| Overall Length | 1908 mm |
| Overall Length | 75.1 in. |
| Wheelbase | 1242 mm |
| Wheelbase | 48.9 in. |
| Width With Mower | 1270 mm |
| Width With Mower | 50 in. |
| Width With Mower (Deflector Raised For Storage) | 1244 mm |
| Width With Mower (Deflector Raised For Storage) | 49 in. |
| Width Without Mower | 1015 mm |
| Width Without Mower | 40 in. |
| Weight | 218 kg |
| Weight | 481 lb. |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Crank Amps | 300 CCA |
| Charging System | Flywheel alternator, regulated |
| Charging System | 14 amp |
| Engine Starter | Bendix type |
| Hour Meter | Yes |
| Headlights | Two standard, LED |
| Taillights Or Reflector | No |
| Backup Lights | No |
| Rear Work Lights | No |
| 12-V Outlet | No |
Fuel System
| Type | Gasoline |
| Fuel Delivery | Pulse pump and carburetor |
| Fuel Gauge | Mechanical, viewable from seat |
| Fuel Tank Location | Rear |
| Fuel Fill Opening | Center |
| Fuel Fill Opening | 4.45 cm |
| Fuel Fill Opening | 1.75 in. |
| Fuel Tank Capacity | 9.1 L |
| Fuel Tank Capacity | 2.4 U.S. gal. |
Safety
| Meets ANSI Standard | Yes |
| Meets OPEI Standard | Yes |
| Backup Protection | Reverse Implement Option (RIO) |
| Safety Video | Yes |
Transaxle
| Transaxle Type | TLT200 hydrostatic, two-wheel drive |
| Transaxle Control | Side-by-side pedals |
| Cruise Control | Standard |
| Oil Cooler | Fins and fan on transaxle |
| Oil Filter | Internal, not replaceable |
| Differential Lock | No |
| Forward Speed | 8.9 km/h |
| Forward Speed | 5.5 mph |
| Reverse Speed | 5.2 km/h |
| Reverse Speed | 3.2 mph |
| Brakes | Internal wet disk |
Additional Information
| Manufacturing Location | Greeneville, Tennessee, USA |
| Date Collected | 10/01/2025 00:00:00 |
Engine
| Engine Power | 16.4 kW |
| Engine Power | 22 hp |
| Displacement | 724 cc |
| Displacement | 44.2 cu in. |
| Engine Manufacturer/Model | 44J6 Cyclonic |
| Engine Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin, cast-iron liners |
| Governor | Mechanical |
| Choke/Speed Control | Separate levers, automatic choke return |
| Cooling Method | Air |
| Air Cleaner | Pleated paper cartridge filter with poly pre-filter |
| Oil Change | No-tools oil drain with replaceable filter |
Mower Attachability
| Type | Slide under tractor |
| Front Draft Arms | One spring clip |
| Rear Draft Arms | Two spring clips |
| Mower Wheels Rotate | No |
| Drive System | Single V-belt |
