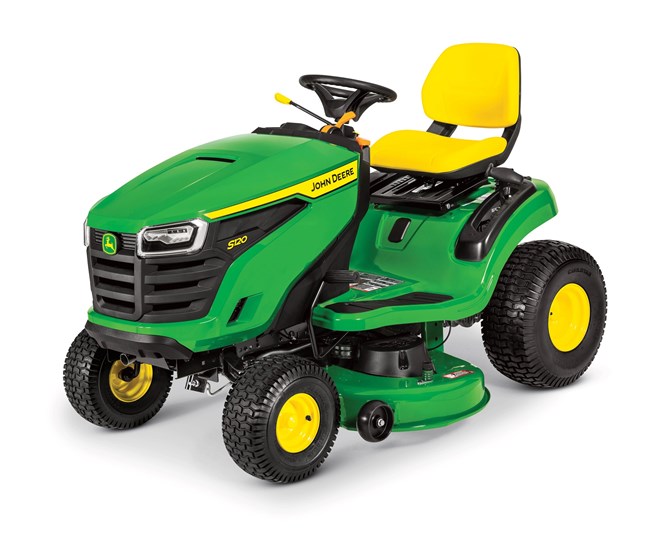

John Deere S120

New Products / John Deere / John Deere Products / Mowers / Residential Lawn Mowers / S120

Double tap to zoom



Features

Comfortable and Simple to Operate

Close-up of the MowerPlus Fuel Gauge on S100 series lawn tractors

A 15-in. (38 cm) open-back seat is comfortable and cool for all-day comfort. The Easy-read digital fuel gauge shows fuel level on the dashboard so you can keep an eye on fuel levels while mowing.

Hydrostatic Transmission With Side-by-Side Pedals

Top right studio view of an S100 series lawn tractor's two-pedal speed/direction controls

Use the side-by-side pedals to maneuver with precision without shifting or lifting your foot off the platform, enhancing operator comfort and ease of use.

Change the Oil in 30 Seconds

Close-up of a green “Easy Change” oil filter mounted inside an engine compartment next to a black battery and surrounding hoses and wiring.

The John Deere Easy Change™ oil change system makes changing the engine oil as easy as twisting on a new oil-filled filter. It's simple, quick, and clean.

Specifications

Mower Deck

TypeSide discharge
Cutting Width107 cm
Cutting Width42 in.
ConstructionStamped steel deck shell
Mower Deck Material13 gauge
Mower Deck Material2.3 mm
Mower Deck Material0.09 in.
Mower Wash PortYes
Mower Drive SystemManual power take-off (PTO)
Mower WheelsTwo
Mower Wheel AdjustmentOne bolt
Mower Level AdjustmentEasy-level deck

Seat

TypeTwo piece with open-back
Seat Back Height38 cm
Seat Back Height15 in.
ArmrestsNo
Fore-Aft Adjustment14 cm
Fore-Aft Adjustment5.5 in.
Seat SuspensionTilt, two coil springs

Steering

TypeSector and pinion with single drag link and tie rod
Four-Wheel SteerNot available on this model
Steering Wheel30.5 cm
Steering Wheel12 in.
Tilt Steering WheelNo
Turning Radius45.7 cm
Turning Radius18 in.
Uncut Circle Radius63.5 cm
Uncut Circle Radius25 in.

Buyer's Notes

NotesMolded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame Smooth V-twin engine John Deere Easy Change 30-second oil change system
Warranty2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Chassis

FrameFull-length welded steel
Primer/PaintE-coat/powder
Weight BracketOptional rear
Receiver HitchNo
Front AxleCast-iron front axle, front wheel sealed ball bearings
Spindle BushingsNo
Front Tires15x6-6
Rear Tires20x8-8
Hood MaterialMolded-in color material reduces sound, will not rust or dent
Fender Deck MaterialStamped steel
Floor MatsYes, with debris removing channels
StorageStorage tray with cover
Service Interval DecalYes
Fender Handles/GripsNo
Cup HolderYes
Equipment MountingCargO Mount™ system
Maximum Towing Capacity227 kg
Maximum Towing Capacity500 lb.

Optional Equipment

Rear Bagger229 L
Rear Bagger6.5 bu
Mulching SystemMulch cover or high-performance plug
Front Blade116.8 cm
Front Blade46 in.
Snow Blower111.8 cm
Snow Blower44 in.
Sprayer - Tow-Behind94.6 L
Sprayer - Tow-Behind25 U.S. gal.
Sprayer - Mounted56.8 L
Sprayer - Mounted15 U.S. gal.
Spreader - Tow-Behind80 kg
Spreader - Tow-Behind175 lb.
Front BumperStyled front bumper
Weather ProtectionWeather enclosure
Sun CanopySun canopy
Bucket HolderYes, single bucket
Grass StripingLawn striping kit
Tow-Behind Tools16

Lift System

Lift System TypeSpring-assisted hand-grip lever
Hydraulic OutletsNo
Mower Cut Height - Minimum2.5 cm
Mower Cut Height - Minimum1 in.
Mower Cut Height - Maximum10.2 cm
Mower Cut Height - Maximum4 in.
Cut Height Increments0.64 cm
Cut Height Increments0.25 in.
Preset Cut HeightNo

Dimensions

Height1118 mm
Height44 in.
Overall Length1770 mm
Overall Length69.7 in.
Wheelbase1242 mm
Wheelbase48.9 in.
Width With Mower1402 mm
Width With Mower55.2 in.
Width With Mower (Deflector Raised For Storage)1181 mm
Width With Mower (Deflector Raised For Storage)46.5 in.
Width Without Mower996 mm
Width Without Mower39.2 in.
Weight201 kg
Weight444 lb.

Electrical System

Battery Voltage 12 V
Battery Cold Crank Amps 300 CCA
Charging SystemRegulated
Charging System8 amp
Engine StarterBendix type
Hour MeterYes
HeadlightsTwo standard, LED
Taillights Or ReflectorNo
Backup LightsNo
Rear Work LightsNo
12-V OutletNo

Fuel System

TypeGasoline
Fuel DeliveryPulse pump and carburetor
Fuel GaugeEasy-read on dash
Fuel Tank LocationRear
Fuel Fill OpeningCenter
Fuel Fill Opening4.45 cm
Fuel Fill Opening1.75 in.
Fuel Tank Capacity9.1 L
Fuel Tank Capacity2.4 U.S. gal.

Safety

Meets ANSI StandardYes
Meets OPEI StandardYes
Backup ProtectionReverse Implement Option (RIO)
Safety VideoYes

Transaxle

Transaxle TypeHydrostatic, 2-wheel drive
Transaxle ControlSide-by-side pedals
Cruise ControlStandard
Oil CoolerFins and fan on transaxle
Oil FilterYes, not serviceable
Differential LockNo
Forward Speed8.9 km/h
Forward Speed5.5 mph
Reverse Speed5.2 km/h
Reverse Speed3.2 mph
BrakesInternal wet disk

Additional Information

Manufacturing LocationGreeneville, Tennessee, USA
Date Collected04/01/2024 00:00:00

Engine

Engine Power16.4 kW
Engine Power22 hp
Displacement724 cc
Displacement44.2 cu in.
Engine Manufacturer/Model44N677 (M44)
Engine TypeOverhead valve, full-pressure lube, oil filter
CylindersV-twin
GovernorMechanical
Choke/Speed ControlSingle lever with spring-return on choke
Cooling MethodAir
Air CleanerCartridge
Oil ChangeJohn Deere Easy Change 30-second oil change system

Mower Attachability

TypeSlide under tractor
Front Draft ArmsOne spring clip
Rear Draft ArmsTwo spring clips
Mower Wheels RotateNo
Drive SystemSingle belt
