John Deere 72D
Double tap to zoom
72D
Mower Attachments, Accessories and Implements
Overview:

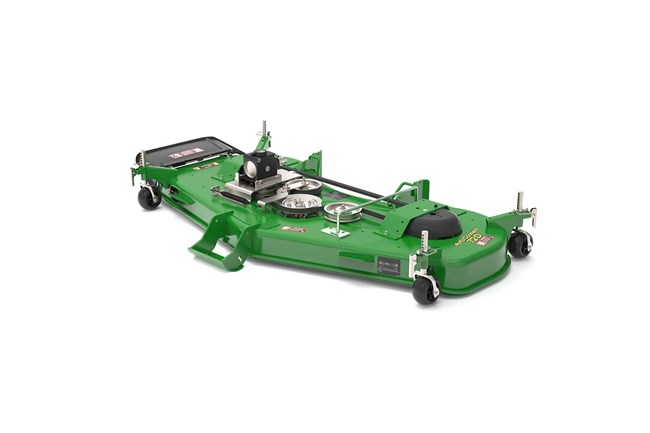

The 72D in. AutoConnect™ 7-Iron Mid-Mount Side Discharge Mower delivers seamless and efficient mowing performance tailored for 2R Large Frame, 3R Series, and 3120-3720 Tractors, ensuring quick attachment and superior cut quality for a pristine landscape.
- Easy Drive-Over Mower Deck Installation
- Compatible With Rear 3-Point Hitch Attachments, Backhoes, and Loaders So You Can Keep these Implements Attached While Mowing
- Simple, One Pin, Height-of-Cut Adjustment
- Mid-Power Take-off (PTO) Driven
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

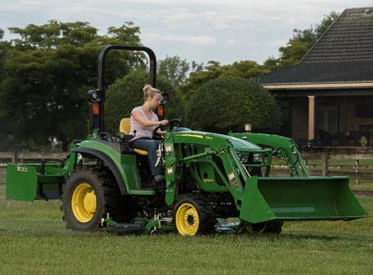

Compatible with Multiple Implements
AutoConnect™ Decks are compatible with rear 3-point hitch attachments, backhoes, loaders, and a front hitch. The operator can keep these extra implements attached to the tractor while mowing, if desired.

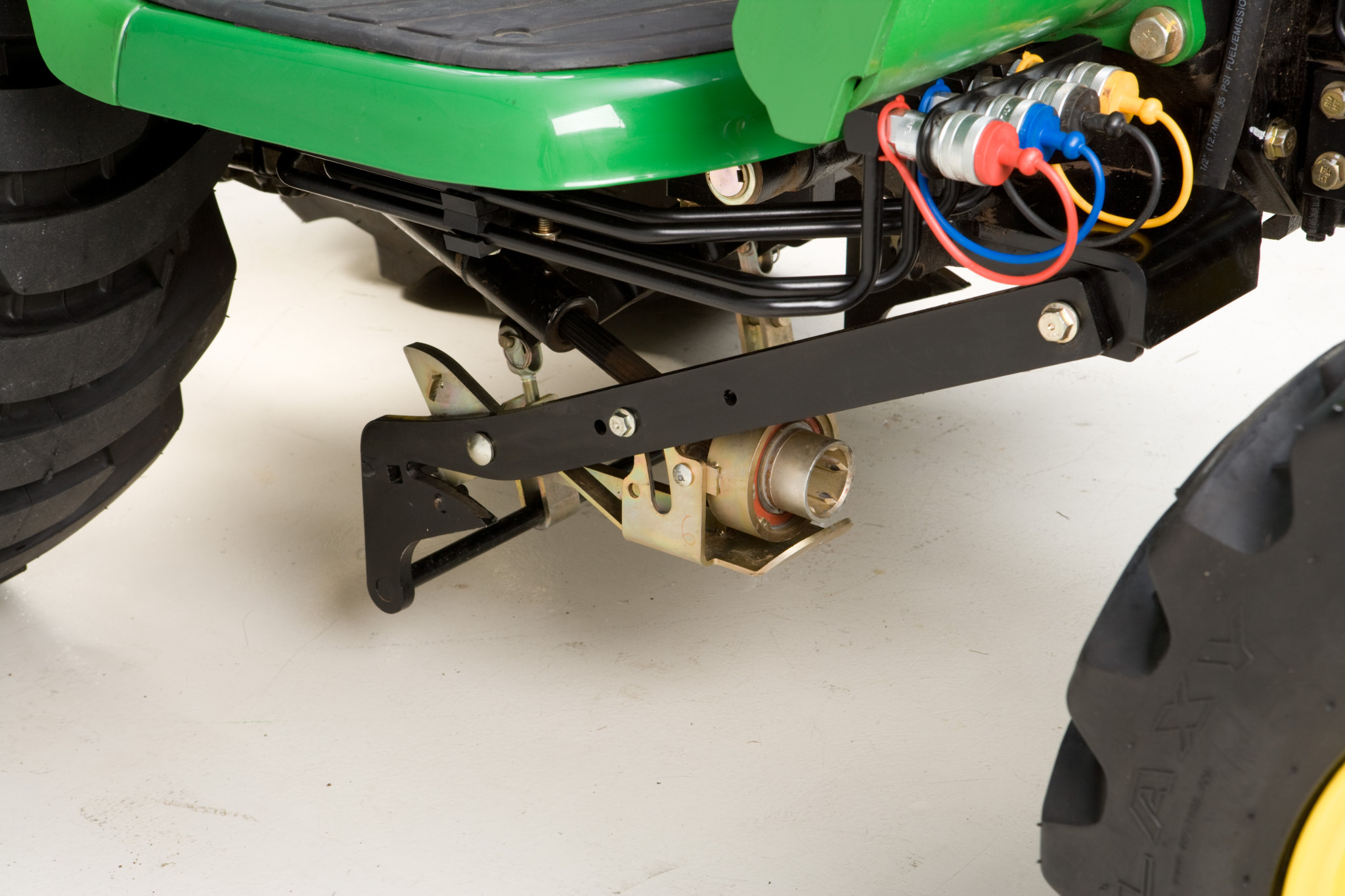

Mid-Power Take-Off (PTO) Driven
Mowers powered by the tractor's mid PTO offer key advantages: they leave the rear PTO free for other implements, use a reliable shaft drive instead of belts, and allow for quicker, easier deck installation.
Service and Durability Features
These mowers feature easily removable drive-over ramps for belt servicing, greaseable blade spindles to extend bearing life, reinforced deck edges for added strength, and plastic chute guards on the 60-in. (152.4-cm) and 72-in. (183-cm) 7Iron™ Mower Decks.
Specifications
Dimensions
| Cutting Width | 72.8 in. |
| Cutting Width | 185 cm |
| Overall Width - Deflector Up | 73.5 in. |
| Overall Width - Deflector Up | 187 cm |
| Overall Width - Deflector Down | 85.5 in. |
| Overall Width - Deflector Down | 217 cm |
| Cutting Height | 1 - 5.5 in. |
| Cutting Height | 2.5 - 13.9 cm |
| Deck Thickness | 0.1793 in. |
| Deck Thickness | 4.554 mm |
| Deck Thickness | 7 gauge |
Blades
| Number Of Blades | 3 |
| Length | 25 in. |
| Length | 63.6 cm |
| Thickness | 0.25 in. |
| Thickness | 0.63 cm |
| Blade Tip Speed (At 2600 rpm) | 14182 fpm |
| Blade Tip Speed (At 2600 rpm) | 4322.7 m/min |
Weight
| Approximate Weight | 345 lb. |
| Approximate Weight | 156 kg |
Wheels
| Front Gauge Wheel Size | 5 in. / 12.7 cm |
| Rear Gauge Wheel Size | 5 in. / 12.7 cm |
Spindles
| Diameter | 1 in. |
| Diameter | 2.54 cm |
Mulching
| Mulching Type | Optional |
