John Deere 60D AutoConnect™
Double tap to zoom
60D AutoConnect™
Mower Attachments, Accessories and Implements
Overview:

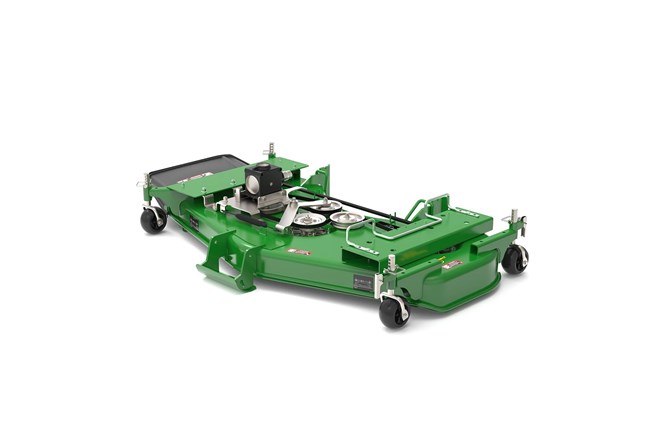

The 60D in. AutoConnect™ 7-Iron Mid-Mount Side Discharge Mower, compatible with 2R Large Frame, 3R Series, and 3120-3720 Tractors, offers unmatched efficiency and convenience with its quick auto-connect capabilities and superior cut quality, enhancing productivity and lawn aesthetics.
- Easy Drive-Over Mower Deck Installation
- Compatible With Rear 3-Point Hitch Attachments, Backhoes, and Loaders So You Can Keep these Implements Attached While Mowing
- Simple, One Pin, Height-of-Cut Adjustment
- Mid-Power Take-off (PTO) Driven
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Mower Driven by Mid-Power Take-Off (PTO)
The tractor’s mid PTO drives the mower via a shaft (not belts), allowing quick deck installation and keeping the rear PTO free for other implements.
Installation and Removal Ease
The AutoConnect™ system allows for easy installation and removal of the mower deck. Simply align the tractor, drive over the deck, and listen for clicks. This process minimizes downtime, enhancing convenience and efficiency for operators.
Compatible with Front and Rear Implements
AutoConnect™ Decks are compatible with rear 3-point hitch attachments, backhoes, loaders, and a front hitch. The operator can keep these extra implements attached to the tractor while mowing, if desired.
Specifications
Dimensions
| Cutting Width | 60.9 in. |
| Cutting Width | 155 cm |
| Overall Width - Deflector Up | 62.5 in. |
| Overall Width - Deflector Up | 159 cm |
| Overall Width - Deflector Down | 73 in. |
| Overall Width - Deflector Down | 185 cm |
| Cutting Height | 1 - 5.5 in. |
| Cutting Height | 2.5 - 13.9 cm |
| Deck Thickness | 0.1793 in. |
| Deck Thickness | 4.554 mm |
| Deck Thickness | 7 gauge |
Blades
| Number Of Blades | 3 |
| Length | 21.1 in. |
| Length | 53.5 cm |
| Thickness | 0.25 in. |
| Thickness | 0.63 cm |
| Blade Tip Speed (At 2600 rpm) | 15940 fpm |
| Blade Tip Speed (At 2600 rpm) | 4858.5 m/min |
Weight
| Approximate Weight | 324 lb. |
| Approximate Weight | 147 kg |
Wheels
| Front Gauge Wheel Size | 5 in. / 12.7 cm |
| Rear Gauge Wheel Size | 5 in. / 12.7 cm |
Spindles
| Diameter | 1 in. |
| Diameter | 2.54 cm |
Mulching
| Mulching Type | Optional |
