John Deere 60D (1023E, 1025R, 2025R)
Double tap to zoom
60D (1023E, 1025R, 2025R)
Mower Attachments, Accessories and Implements
Overview:

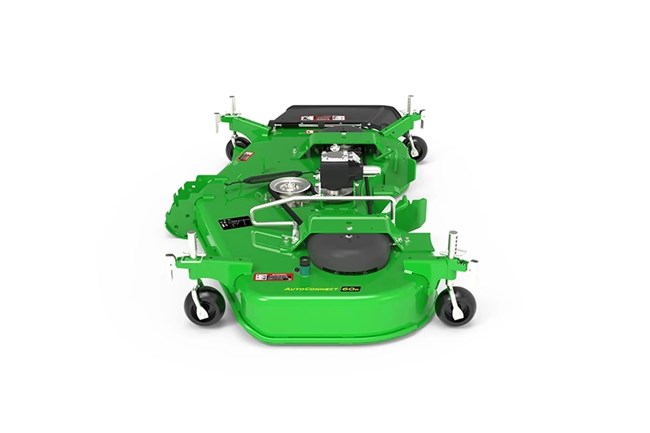

Easily install and remove the heavy-duty 60D AutoConnect™ Mower, compatible with 1023E, 1025R, and 2025R tractors, featuring a 60-inch cutting width.
- Easy Drive-Over Mower Deck Installation
- Compatible with Rear 3-Point Hitch Attachments, Backhoes, and Loaders so you can Keep These Implements Attached While Mowing
- Simple, one pin, Height-of-cut Adjustment
- Mid-Power Take-off (PTO) Driven
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Service and Durability

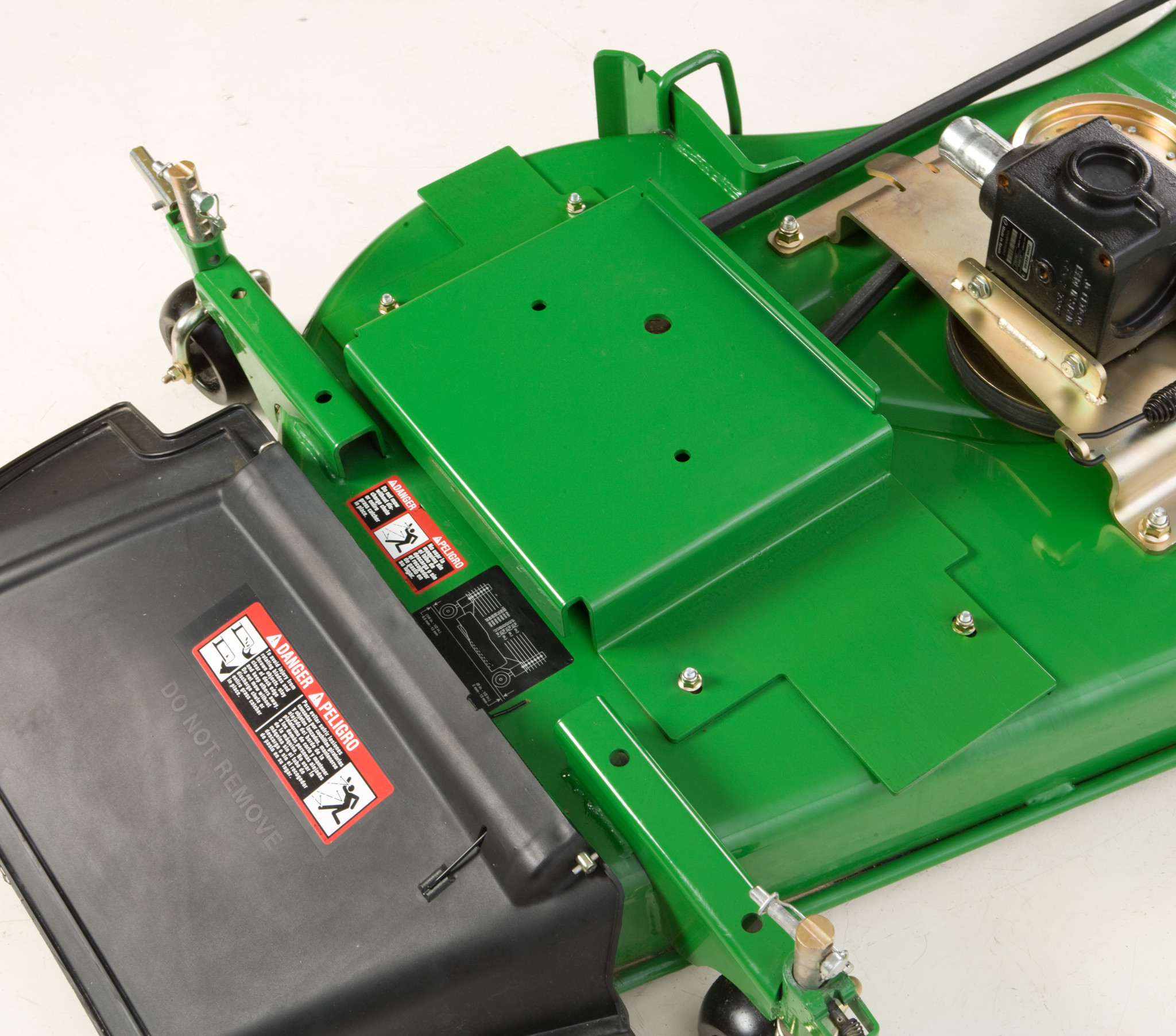

These mowers feature easily removable drive-over ramps for belt service, greaseable blade spindles and drive shaft to extend bearing life, reinforced deck edges for durability, and a plastic chute guard for added protection.
Compatible with Front/Rear Implements
The High-Capacity AutoConnect™ deck is compatible with rear 3-point hitch attachments, backhoes, and loaders. The operator can keep these extra implements attached while mowing.
Mower Height Adjustment
The height-of-cut (HOC) adjustment is located on the tractor and can easily be adjusted with the turn of the knob. To install/remove mower deck, the HOC adjustment knob must be set in the install position.
Specifications
Dimensions
| Cutting Width | 60 in. |
| Cutting Width | 152 cm |
| Overall Width - Deflector Up | 62.5 in. |
| Overall Width - Deflector Up | 159 cm |
| Overall Width - Deflector Down | 73 in. |
| Overall Width - Deflector Down | 185 cm |
| Cutting Height | 1 - 4 in. |
| Cutting Height | 2.54 - 10.16 cm |
| Deck Thickness | 0.1793 in. |
| Deck Thickness | 4.554 mm |
| Deck Thickness | 7 gauge |
Blades
| Number Of Blades | 3 |
| Length | 21.1 in. |
| Length | 53.5 cm |
| Thickness | 0.25 in. |
| Thickness | 0.63 cm |
| Blade Tip Speed (At 2600 rpm) | 15437 fpm |
| Blade Tip Speed (At 2600 rpm) | 4705.2 m/min |
Weight
| Approximate Weight | 258 lb. |
| Approximate Weight | 117 kg |
Compatibility
| Compatible Models | 1023E, 1025R, 1026R, and model year 2017 and new 2025R Tractors |
Wheels
| Front Gauge Wheel Size | 5 in. / 12.7 cm |
| Rear Gauge Wheel Size | 5 in. / 12.7 cm |
Spindles
| Diameter | 1 in. |
| Diameter | 2.54 cm |
Mulching
| Mulching Type | Optional |
