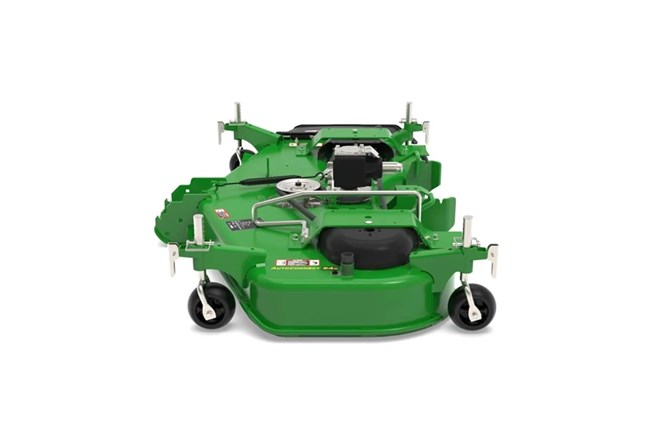

John Deere 54D
Double tap to zoom
54D
Mower Attachments, Accessories and Implements
Overview:
The 54D AutoConnect™ Mower offers tool-free hookup, durable build, and precise cutting, enhancing efficiency for large lawns with compatible tractors.
- Easy drive-over mower deck installation
- Compatible with rear 3-point hitch attachments, backhoes, and loaders so you can keep these implements attached while mowing
- Mid-power take-off (PTO) driven
- Height-of-cut is easily adjusted turning a knob located on the tractor
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

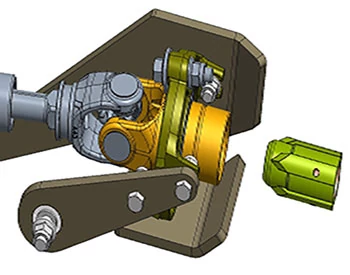

Mid-Mower Lift System
The mid-mower lift system features automatic front hanger connection, a self-adjusting PTO shaft, and a locking latch for stability. It offers three lift options: mechanical (linked to rear implements), hydraulic (independent of rear), and independent hydraulic (full control via joystick button).

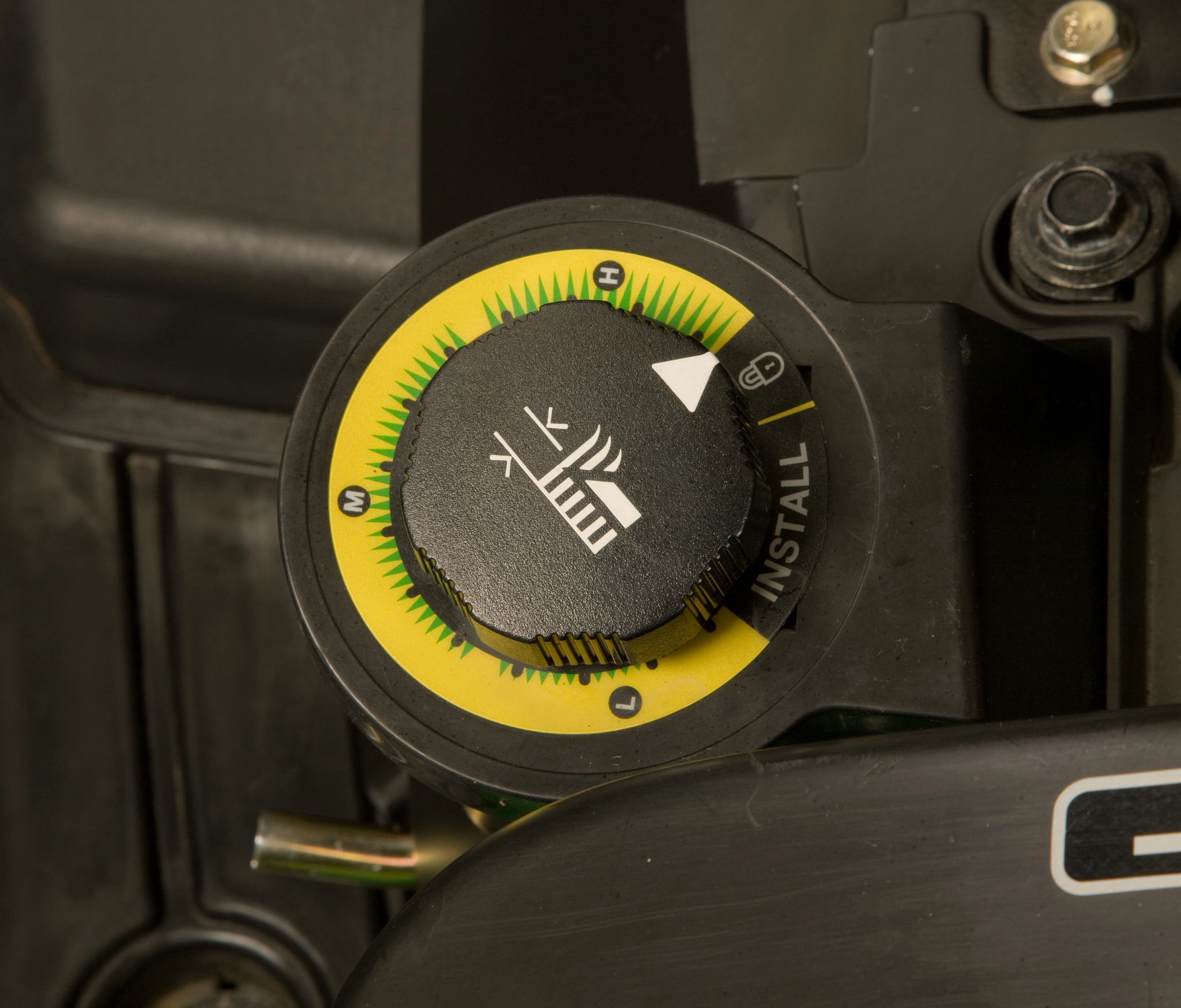

Mower Height Adjustment
The height-of-cut (HOC) adjustment is located on the tractor and can easily be adjusted with the turn of the knob. To install/remove mower deck, the HOC adjustment knob must be set in the install position.
Compatible with Front/Rear Implements
The High-Capacity AutoConnect™ deck is compatible with rear 3-point hitch attachments, backhoes, and loaders. The operator can keep these extra implements attached while mowing.
Specifications
Dimensions
| Cutting Width | 54 in. |
| Cutting Width | 137 cm |
| Overall Width - Deflector Up | 6 in. |
| Overall Width - Deflector Up | 152 cm |
| Overall Width - Deflector Down | 68.5 in. |
| Overall Width - Deflector Down | 174 cm |
| Cutting Height | 1 - 4 in. |
| Cutting Height | 2.54 - 10.16 cm |
| Deck Thickness | 0.1345 in. |
| Deck Thickness | 3.416 mm |
| Deck Thickness | 10 gauge |
Blades
| Number Of Blades | 3 |
| Length | 19.1 in. |
| Length | 48.5 cm |
| Thickness | 0.25 in. |
| Thickness | 0.63 cm |
| Blade Tip Speed (At 2600 rpm) | 16751 fpm |
| Blade Tip Speed (At 2600 rpm) | 5106 m/min |
Weight
| Approximate Weight | 197 lb. |
| Approximate Weight | 89 kg |
Compatibility
| Compatible Models | 1023E, 1025R, and 1026R |
Wheels
| Front Gauge Wheel Size | 5 in. / 12.7 cm |
| Rear Gauge Wheel Size | 5 in. / 12.7 cm |
Spindles
| Diameter | 0.787 in. |
| Diameter | 2 cm |
Mulching
| Mulching Type | Optional |
