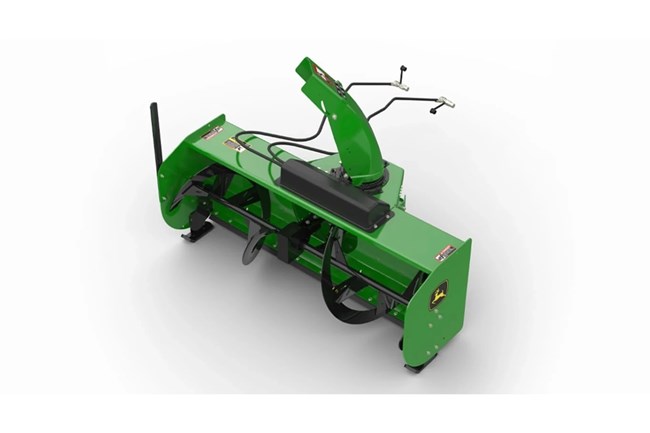

John Deere 54-in. Quick-Hitch Snow Blower

Double tap to zoom



Features

Heavy-Duty Drive

A close-up view of a black gearbox mounted inside a green equipment housing, showing bolts and a protruding shaft

The heavy-duty drive system includes a telescopic universal joint with a lock-back collar. The enclosed chain drive, reducing maintenance and enhancing durability, optimizes the use of engine power for excellent performance.

Two-Stage Design Highly Effective in Deep Snow

A compact tractor with an enclosed cab using a front-mounted snow blower to clear deep snow, throwing snow to the side.

The two-stage design features a low-speed auger that gathers snow and channels it toward a high-speed rotor, propelling it out of the discharge chute. This is especially effective in deep or drifted snow, making it more efficient than single-stage snow throwers in such conditions.

Hydraulic-Discharge Chute Rotor and Adjustable Spout Cap

Close-up of a snow blower showing the discharge chute throwing snow upward.

The hydraulic cylinder allows for 200-degree spout rotation from the tractor seat, enabling precise control over snow placement. The discharge spout's adjustable deflector cap permits control of snow-throw height and distance, with optional remote kits for on-the-go spout angle adjustments.

Specifications

Scraper Blade

TypeReversible and replaceable

Spout

Diameter15.2 cm
Diameter6 in.
Rotation200 degree (angle)
Rotation ControlHydraulic remote control

Dimensions

Width - Overall139.9 cm
Width - Overall55.1 in.
Width - Clearing137.2 cm
Width - Clearing54 in.
Height Of Opening508 mm
Height Of Opening20 in.
Height To Top Of Chute Deflector108 cm
Height To Top Of Chute Deflector42.5 in.
Housing Depth42.7 cm
Housing Depth16.8 in.
Housing Thickness1.9 mm
Housing Thickness0.075 in.
Side Panel Thickness4.94 mm
Side Panel Thickness0.194 in.

Lift System

TypeHydraulic with down pressure
Lift Height279 mm
Lift Height11 in.

Auger

Diameter40.6 cm
Diameter16 in.
Speed172 rpm
DriveSplined-coupler PTO shaft to enclosed roller chain
Auger Drive GearboxCast-iron bevel gearcase with 1-in. (25-mm) output shafts
ProtectionShear bolt for each auger half, four shell-mounted extra shear bolts
Drift KnifeOne in base, optional second

Weight

Approximate Weight120 kg
Approximate Weight260 lb.

Blower

Speed929 rpm
Blower Fan MaterialUltra-high molecular weight (UHMW) polyethylene
Blower Fan Size11.9x38.1 cm
Blower Fan Size4.67x15 in.

Setup Time

Attaching TimeNo tools required; 5 minutes

Additional Information

Date Collected2021-11-03
