John Deere 48-in. Front Blade
Double tap to zoom

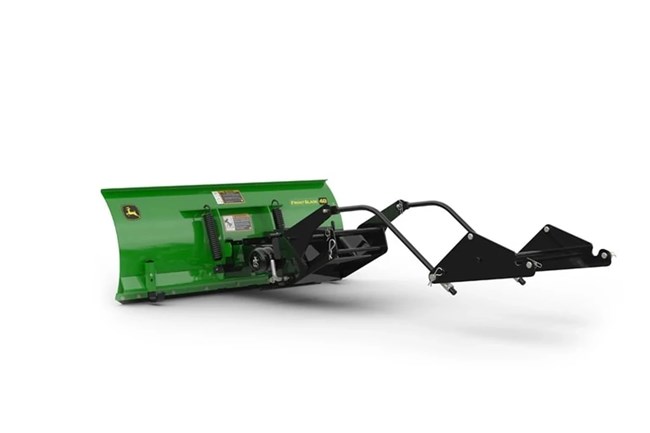

48-in. Front Blade
Mower Attachments, Accessories and Implements
Overview:
The 48‑in. Front Blade clears snow quickly and cleanly, with on‑seat angling, a floating design that follows ground contours, and easy lift via the tractor for efficient operation.
- Wide 48-in. Front Blade Completely Clears Material from the Path of the Tractor for Efficient Clearing
- 5-Position Blade Angling Provides Several Clearing Options
- Optional Blade Angling Kit Allows You to Position Blade from Seat
- Coil-Spring Breakaway Feature Reduces Blade Damage When Solid Objects are Struck
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

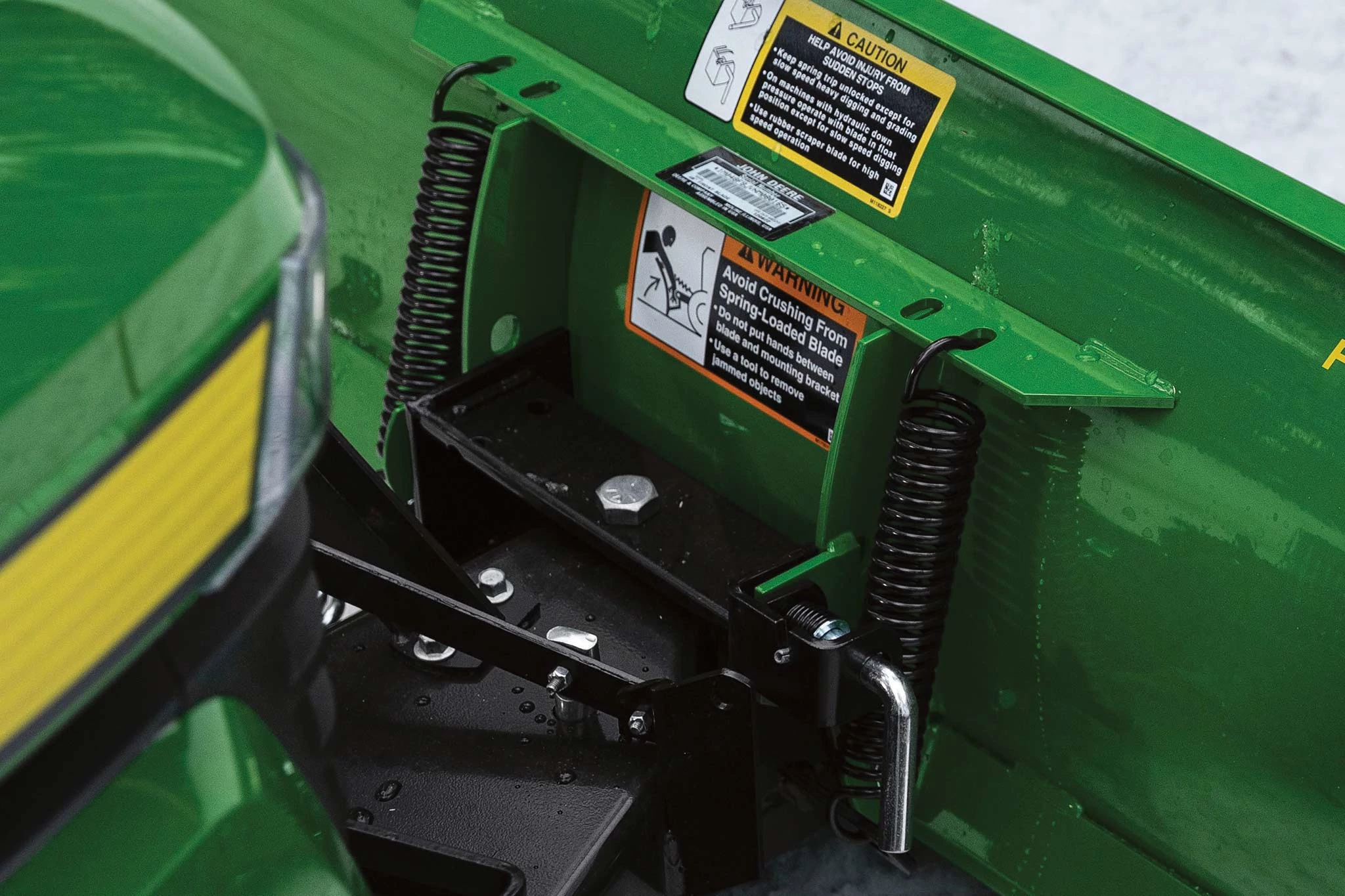

Breakaway Feature
The breakaway feature includes two large coil springs that help the blade edge retract when encountering a solid object. This reduces the operational shock experienced by the driver and minimizes the risk of blade damage. A locking pin keeps the blade secured in the desired position.
Heavy-Duty Construction
A reinforcing angle behind the blade's front edge ensures durability. The blade has a replaceable cutting edge that forms a continuous curve, rolling material rather than pushing it, which enhances capacity and extends the blade's life.
Adjustable Skid Shoes
Adjustable skid shoes offer eight different height settings, enabling operators to choose the appropriate blading height for various tasks. This adjustability simplifies achieving uniform grading and prolongs skid shoes' utility. Optional heavy-duty skid shoes available for purchase.
Specifications
Additional Information
| Removal Time | 5 min. |
| Attaching Time | 5 min. |
Angling Positions
| Right And Left | 15 degree (angle) / 30 degree (angle) |
| Number Of Positions | 5 |
Cutting Width
| Blade Straight | 122 cm |
| Blade Straight | 48 in. |
| Blade Angled | 47 in. |
| Blade Angled | 119 cm |
Blade Skid Shoes
| Type | Eight positions |
Material Thickness
| Replaceable Scraper Edge | 0.188 in. |
| Replaceable Scraper Edge | 4.76 mm |
| Blade | 3.05 mm |
| Blade | 0.12 in. |
Weight
| Approximate Weight | 110 lb. |
| Approximate Weight | 50 kg |
Blade Float
| Type | Built into tractor linkage |
Range Of Lift
| Garden Tractors - Above Ground Level | 13 cm |
| Garden Tractors - Above Ground Level | 5 in. |
| Garden Tractors - Below Ground Level | 7.6 cm |
| Garden Tractors - Below Ground Level | 3 in. |
Dimensions
| Overall Length | 218 cm |
| Overall Length | 17 in. |
| Overall Height | 86 in. |
| Overall Height | 43 cm |
Blade Trip
| Type | Spring-trip with lock |
