John Deere 47-in. Quick-Hitch Snow Blower
Double tap to zoom

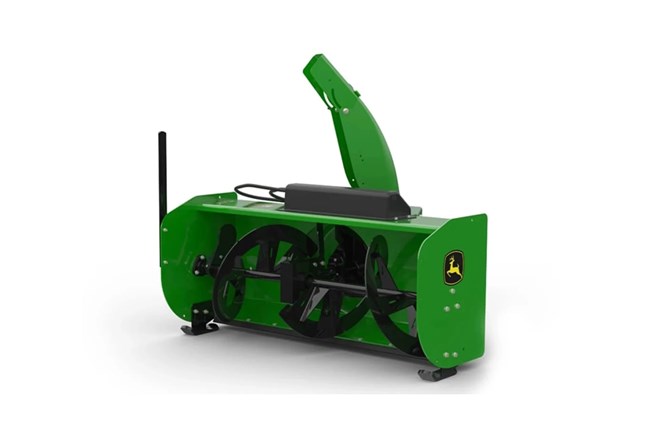

47-in. Quick-Hitch Snow Blower
Mower Attachments, Accessories and Implements
Overview:
The 47-in. (119-cm) Quick-Hitch Snow Blower offers exceptional snow removal efficiency with its robust design and easy mounting system, ensuring you can swiftly clear paths and driveways with minimal effort.
- Attach, Go and Blow With Required Quick-Hitch. No Tools Needed for a Quick Hookup
- Fingertip Control of Lifting/Lowering Blower
- Easily Rotate Chute From Your Seat, for Precise Snow Placement On-the-Go
- Optional Remote Chute Deflector Allows You to Change Snow Distance From the Seat
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Two-Stage Design Highly Effective in Deep Snow

The two-stage design features a low-speed auger that gathers snow and channels it toward a high-speed rotor, propelling it out of the discharge chute. This is especially effective in deep or drifted snow, making it more efficient than single-stage snow throwers in such conditions.

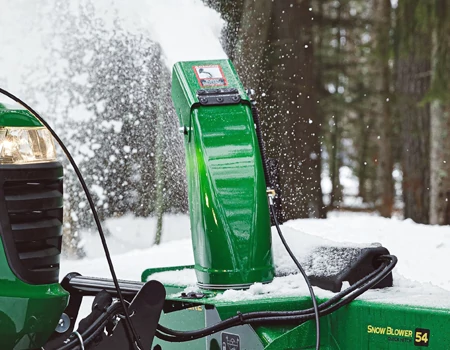

Hydraulic-Discharge Chute Rotor and Adjustable Spout Cap

The hydraulic cylinder allows for 200-degree spout rotation from the tractor seat, enabling precise control over snow placement. The discharge spout's adjustable deflector cap permits control of snow-throw height and distance, with optional remote kits for on-the-go spout angle adjustments.
Heavy-Duty Drive

The heavy-duty drive system includes a telescopic universal joint with a lock-back collar. The enclosed chain drive, reducing maintenance and enhancing durability, optimizes the use of engine power for excellent performance.
Specifications
Scraper Blade
| Type | Reversible and replaceable |
Spout
| Diameter | 15.2 cm |
| Diameter | 6 in. |
| Rotation | 200 degree (angle) |
| Rotation Control | Hydraulic remote control |
Dimensions
| Width - Overall | 1225 cm |
| Width - Overall | 48.2 in. |
| Width - Clearing | 1194 cm |
| Width - Clearing | 47 in. |
| Height Of Opening | 508 mm |
| Height Of Opening | 20 in. |
| Height To Top Of Chute Deflector | 108 cm |
| Height To Top Of Chute Deflector | 42.5 in. |
| Housing Depth | 42.7 cm |
| Housing Depth | 16.8 in. |
| Housing Thickness | 1.9 mm |
| Housing Thickness | 0.075 in. |
| Side Panel Thickness | 4.94 mm |
| Side Panel Thickness | 0.194 in. |
Lift System
| Type | Hydraulic with down pressure |
| Lift Height | 279 mm |
| Lift Height | 11 in. |
Auger
| Diameter | 40.6 cm |
| Diameter | 16 in. |
| Speed | 172 rpm |
| Drive | Splined-coupler PTO shaft to enclosed roller chain |
| Auger Drive Gearbox | Cast-iron bevel gearcase with 1-in. (25-mm) output shafts |
| Protection | Shear bolt for each auger half, four shell-mounted extra shear bolts |
| Drift Knife | One in base, optional second |
Weight
| Approximate Weight | 110 kg |
| Approximate Weight | 240 lb. |
Blower
| Speed | 929 rpm |
| Blower Fan Material | Ultra-high molecular weight (UHMW) polyethylene |
| Blower Fan Size | 11.9x38.1 cm |
| Blower Fan Size | 4.67x15 in. |
Setup Time
| Attaching Time | No tools required: 5 minutes |
Additional Information
| Date Collected | 2021-11-03 |
