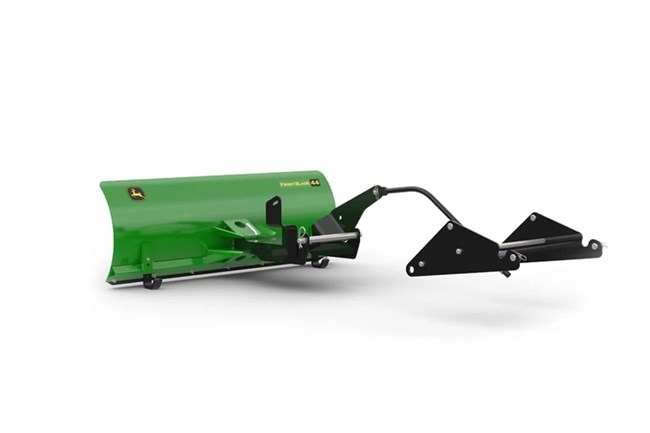

John Deere 44-in. Front Blade

Double tap to zoom



Features

Heavy-Duty Construction

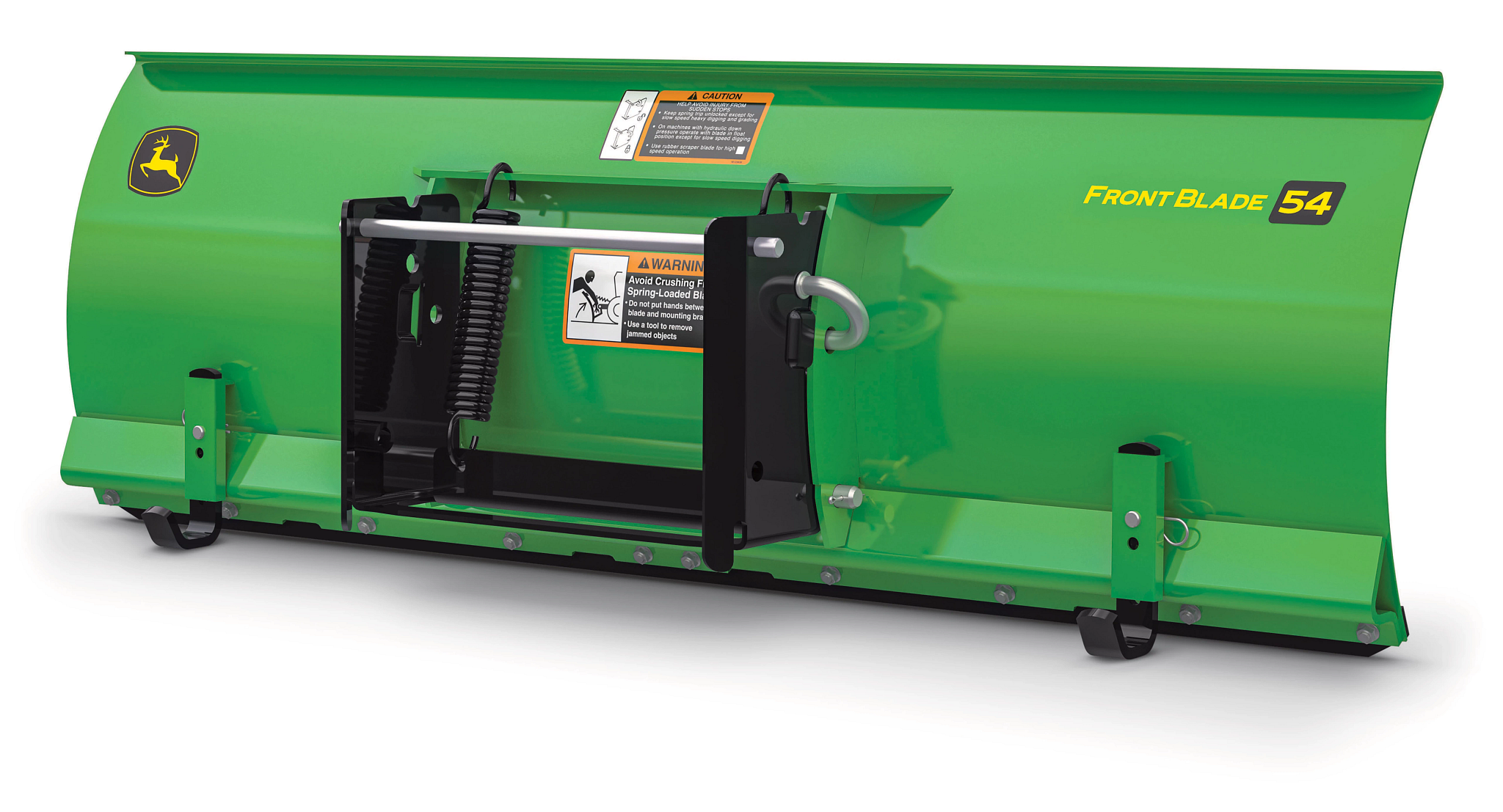

Adjustable skid shoes on the 54 Front Blade in studio

A reinforcing angle behind the blade's front edge ensures durability. The blade has a replaceable cutting edge that forms a continuous curve, rolling material rather than pushing it, which enhances capacity and extends the blade's life.

Adjustable Skid Shoes

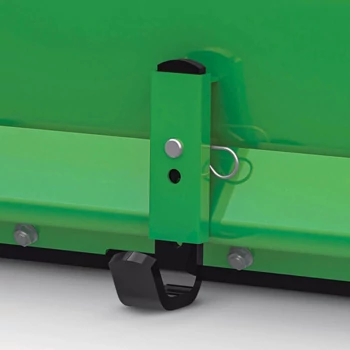

Close‑up of a green equipment attachment bracket showing a vertical mounting tab with a spring‑clip pin and black hook beneath.

Adjustable skid shoes offer eight different height settings, enabling operators to choose the appropriate blading height for various tasks. This adjustability simplifies achieving uniform grading and prolongs skid shoes' utility. Optional heavy-duty skid shoes available for purchase.

Full Working Range, Smoother Results

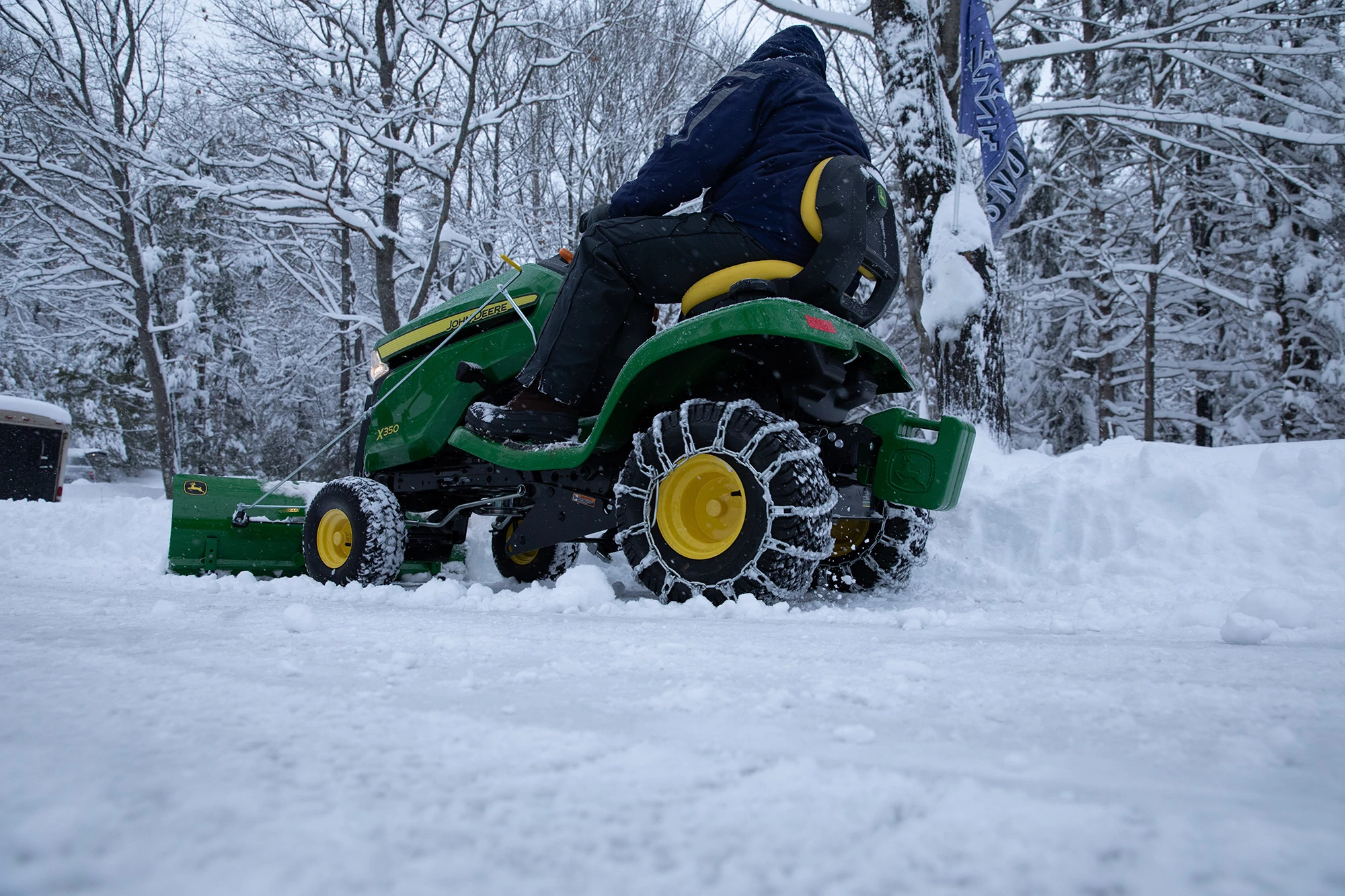

The 112-cm (44-in.) Front Blade can be operated from 2.5 cm (1 in.) below ground level to 12.7 cm (5 in.) above ground level.

The 44-in. (112-cm) Front Blade can be operated from 1 in. (2.5 cm) below ground level to 5 in. (13 cm) above ground level. It follows ground contour for cleaner pushing and back‑dragging, and can be installed or removed from the tractor in minutes.

Specifications

Range Of Lift

Garden Tractors - Above Ground Level12.7 cm
Garden Tractors - Above Ground Level5 in.
Garden Tractors - Below Ground Level2.54 cm
Garden Tractors - Below Ground Level1 in.

Angling Positions

Number Of Positions3
Right And Left25 degree (angle)

Material Thickness

Blade3.05 mm
Blade0.12 in.
Replaceable Scraper Edge4.76 mm
Replaceable Scraper Edge0.188 in.

Cutting Width

Blade Straight112 cm
Blade Straight44 in.
Blade Angled102 cm
Blade Angled40 in.

Weight

Approximate Weight34 kg
Approximate Weight74 lb.

Dimensions

Overall Height38 cm
Overall Height15 in.
