John Deere TD1316
Double tap to zoom
TD1316
Tedding
Overview:

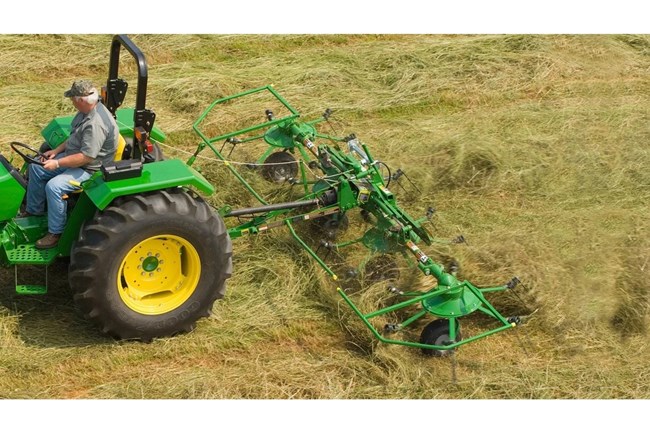

The Frontier TD1316 Hay Tedder fluffs and spreads hay evenly to speed up drying and improve forage quality.
- Tedding Width: 16 ft, 5 in. (5 m)
- Number of Rotors: 4
- Digidrive® Drive System Ensures Maximum Life
- Hydraulic Working Angle Adjustment
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

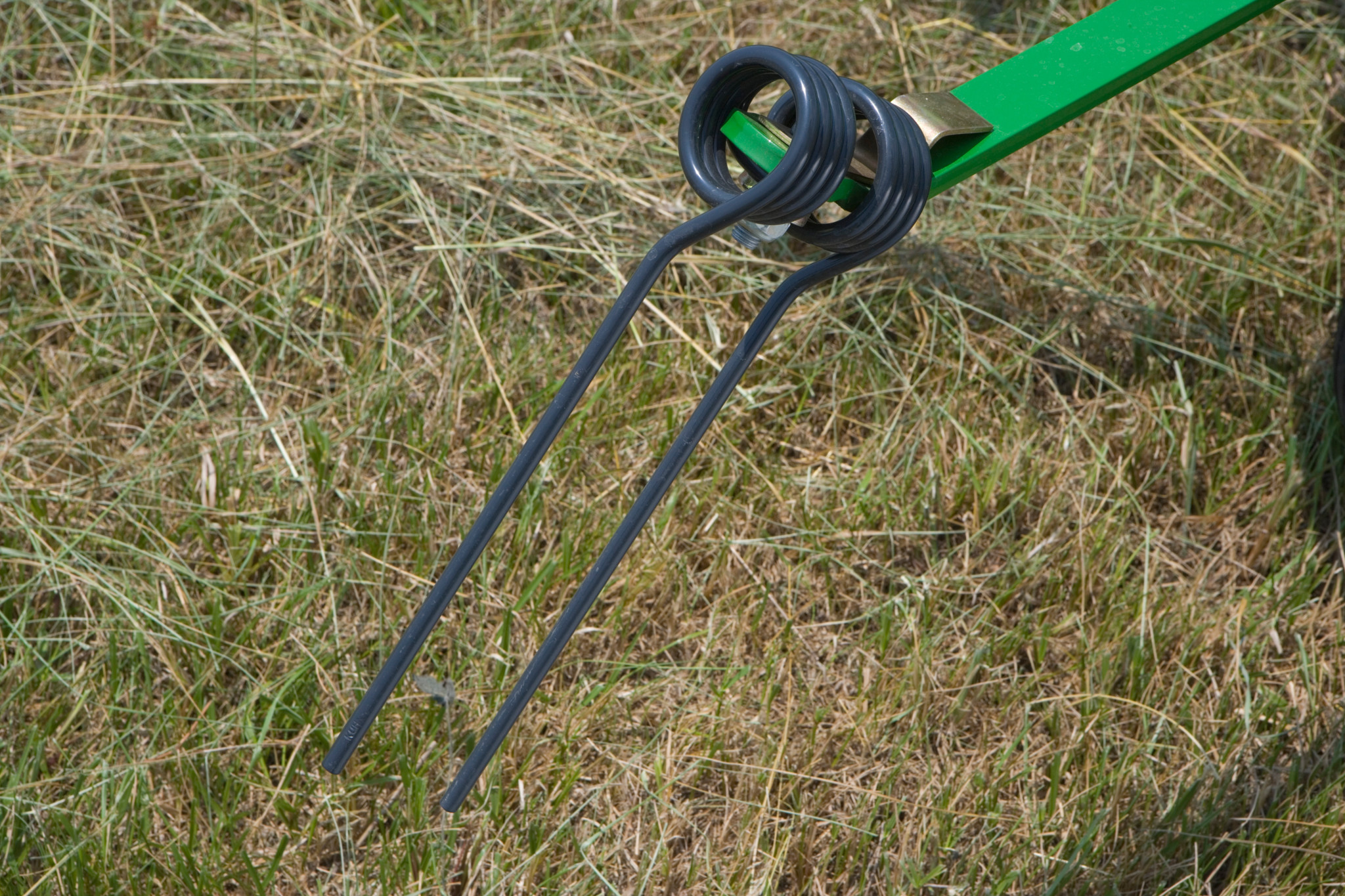

Durable Steel Tines
The TD1316 Hay Tedder features flexible, heat-treated steel tines that resist fatigue and promise long-lasting durability. These tines ensure effective performance in various field conditions, maintaining consistent tedding quality without frequent replacements.

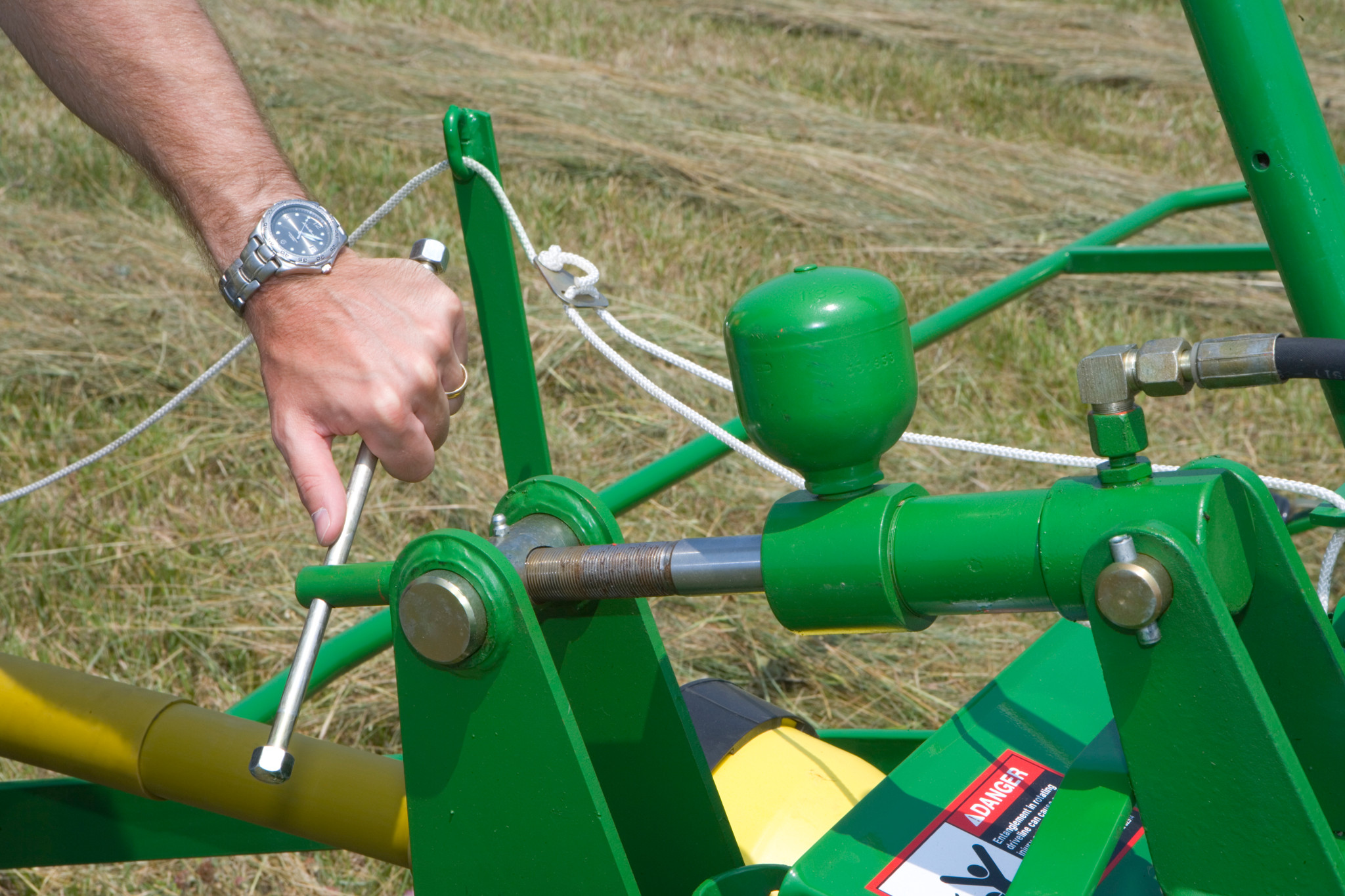

Rotor Adjustment
Equipped with hydraulic angle adjustment, the TD1316 Hay Tedder allows operators to easily transition between transport and working positions. This feature ensures efficient repositioning using tractor hydraulics for seamless transition between fields, enhancing operational efficiency.

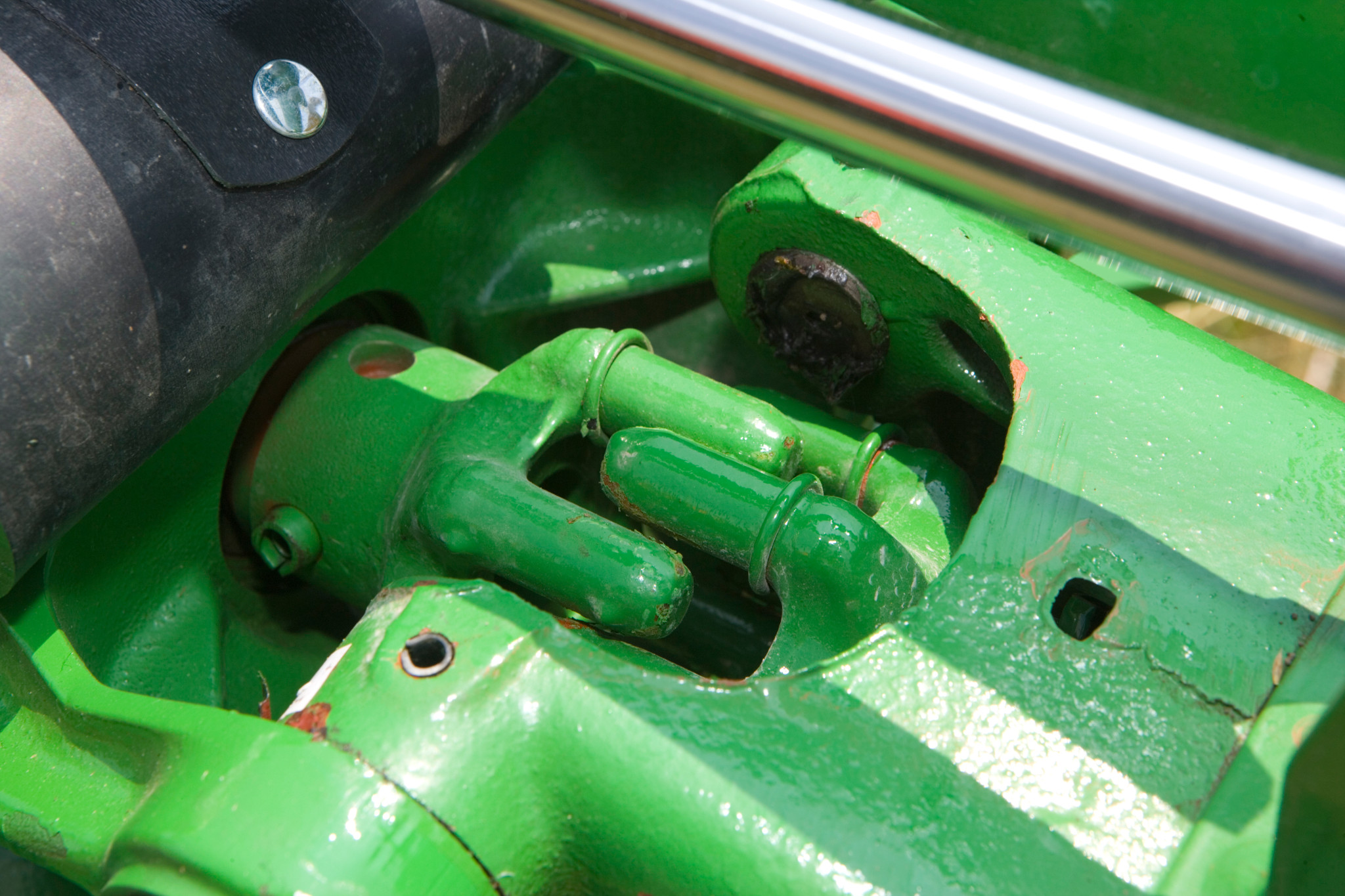

Digidrive® Drive System
The exclusive Digidrive rotor drive fingers on the TD1316 Hay Tedder are made from forged, case-hardened, heat-treated steel. This design offers maximum life and smooth power transmission, ensuring minimal wear and consistent performance across extensive operational periods.
Specifications
PTO
| RPM | 540 rpm |
| Type | Torque Limiter |
Tine
| Height Adjustment | Hydraulic tilt |
Tine Arms
| Quantity Per Rotor | 6 |
| Type | Round tubular |
Tractor Requirements
| Hydraulic Valves (SCVs) Required | 1 |
| Minimum Power | 14.9 kW |
| Minimum Power | 20 hp |
Dimensions
| Transport Height | 8.7 ft |
| Transport Height | 2.7 m |
| Transport Width | 2.8 m |
| Transport Width | 9.2 ft |
| Width In Working Position | 17.7 ft |
| Width In Working Position | 5.4 m |
| Tedding Width | 16.4 ft |
| Tedding Width | 5 m |
| Transport Length | 7.6 ft |
| Transport Length | 2.3 m |
Lighting and Safety
| Safety Chain | Standard |
| Safety Guards | Standard |
| SMV | Standard |
Tires
| Working Size | 6 ply: 38x15 cm / 15x6 in. |
| Working Type | Balloon |
Working Position For Other Crop Flow
| Straight, Right-Hand, Left-Hand Angles | Standard |
Setup Time
| Labor Hours | 6 |
Rotor
| Quantity | 4 |
Transport position
| Hydraulic Vertical Fold With Hydraulic Tilt | Standard |
Hitch
| Type | Drawbar |
Warranty
| Time Period | 1 year |
Weight
| Shipping | 1005 lb. |
| Shipping | 456 kg |
