John Deere WR5417
Double tap to zoom
WR5417
Raking
Overview:

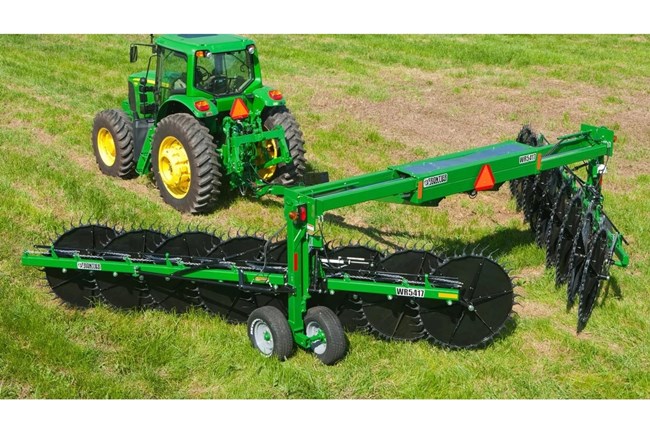

The Frontier™ WR5417 High-Capacity Wheel Rake is a heavy-duty rake designed to rake more hay in less time. Large, wind-panel rake wheels gather hay faster so you can start baling sooner.
- Easily Adjustable Raking Beams
- 17 Rake Wheels
- 29-ft Maximum Raking Width
- Master Control System Controls Various Rake Wheel Functions From Inside Cab
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

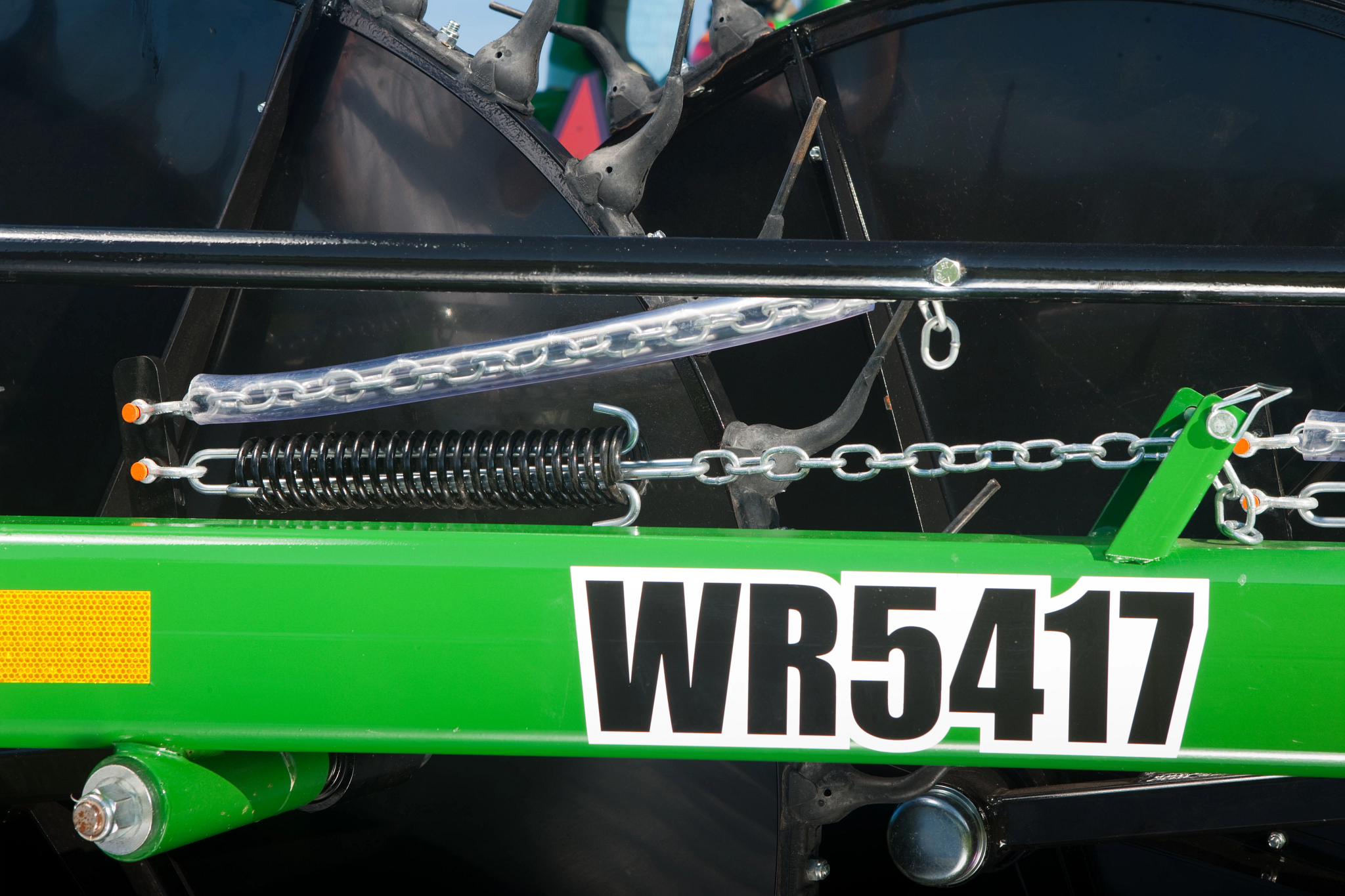

Free-Floating Rake Wheels
The 60-in. (152.4-cm) rake wheels float freely due to individual dampening springs. These springs are standard equipment, and an optional bi-directional spring is available for precise adjustment. Rake wheels can raise independently or together.

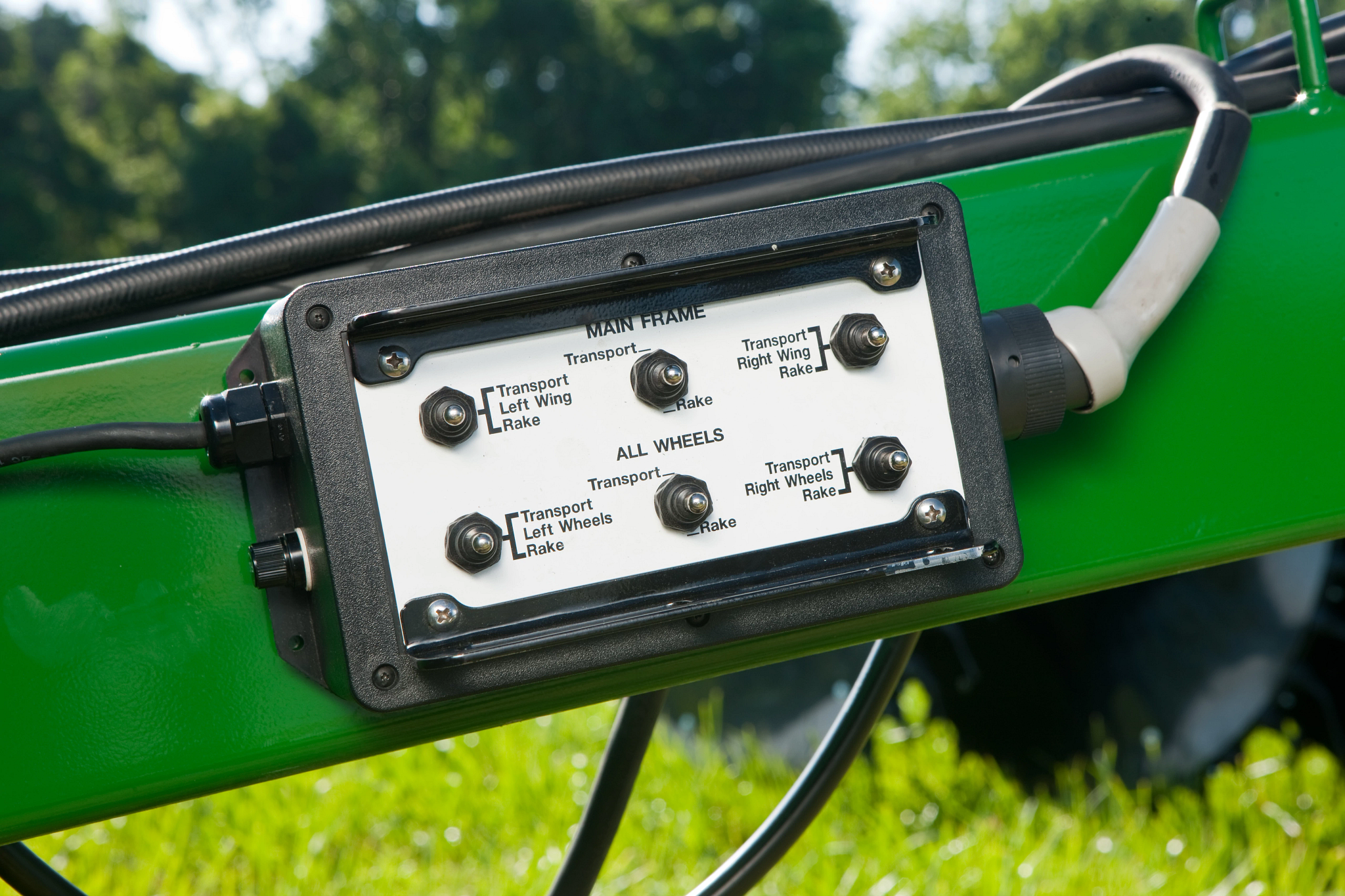

Master Control
The master control system allows operators to manage various rake-wheel functions with a switch flip, facilitating ease of operation.

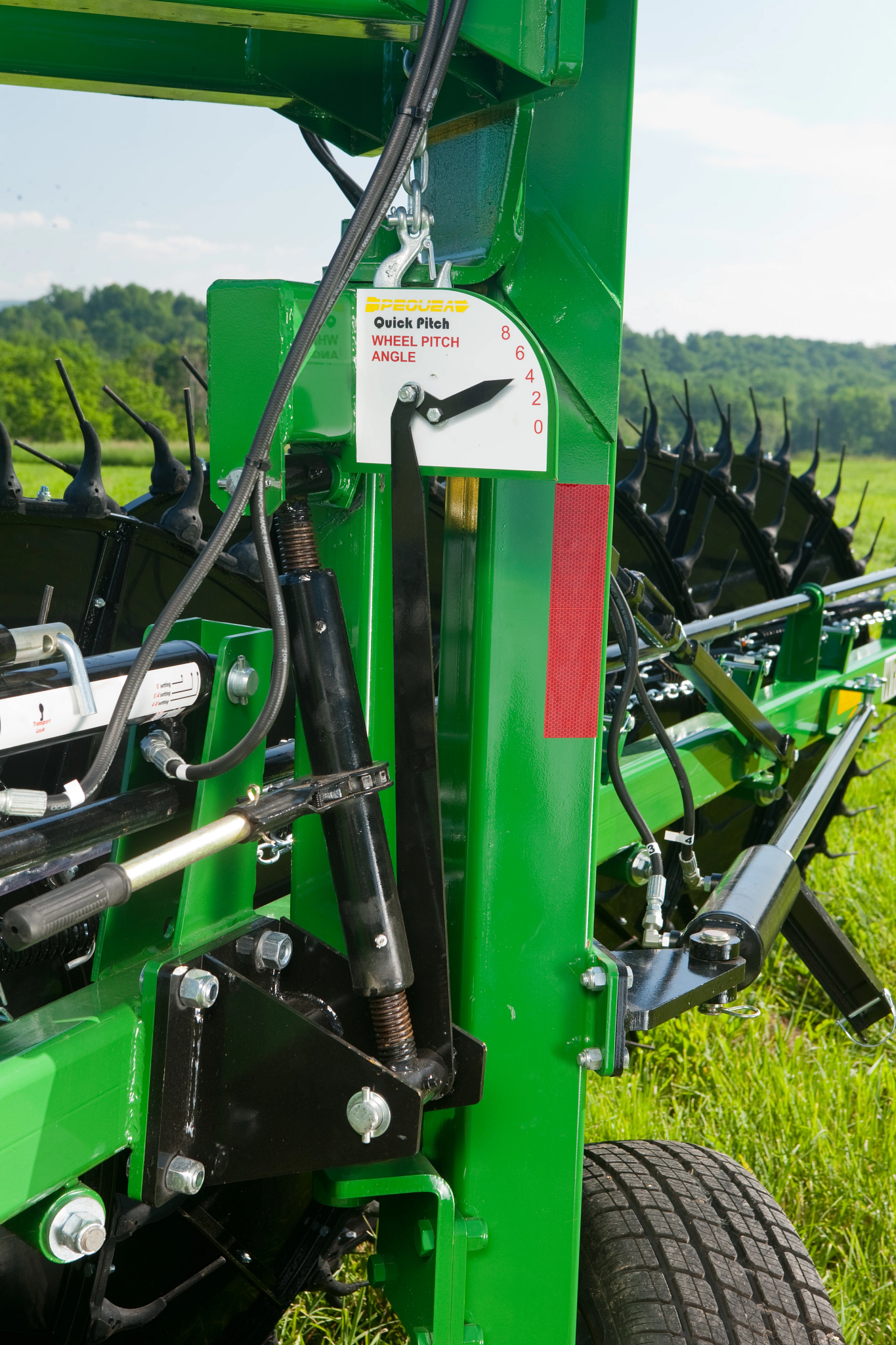

Adjustable Raking Beams
Rake beams adjust to set wheels from 0 to 8 degrees, allowing for more or less aggressive raking. The 0-degree setting is ideal for dry crops, up to 8 degrees suits short, wet, or matted-down crops. Durable wind boards prevent hay from getting caught in wheels.
Specifications
Rake wheel
| Rake Wheel Quantity | 17 |
| Rake Wheel Diameter | 60 in. |
| Rake Wheel Diameter | 152.4 cm |
| Rake Wheel Hubs | Tapered roller bearings (2 per wheel) |
| Rake Wheel Teeth Per Wheel | 36 |
| Rake Wheel Teeth Diameter | 0.276 in. |
| Rake Wheel Teeth Diameter | 0.7 cm |
Dimensions
| Transport Width | 12.33 ft |
| Transport Width | 3.75 m |
| Transport Length | 28.33 ft |
| Transport Length | 8.63 m |
| Transport Height | 7.42 ft |
| Transport Height | 2.26 m |
| Windrow Width - Minimum | 24 in. |
| Windrow Width - Minimum | 60.96 cm |
| Windrow Width - Maximum | 72.3 in. |
| Windrow Width - Maximum | 183.64 cm |
Wheels
| Transport Wheel Quantity | Four |
| Transport Wheel Size | 9.5L-15 (24.0 x 38.1) |
Safety
| Safety Lights | Standard |
| Hitch Jack | Standard |
| Safety Chain | Standard |
Weight
| Implement Weight | 5900 lb. |
| Implement Weight | 2676 kg |
| Shipping Weight | 6100 lb. |
| Shipping Weight | 2766 kg |
Tractor Compatibility
| SCV | One double acting SVC |
| SCV Type | Closed Center; Open Center Kit Available |
| SCV Quantity | 1 |
| Minimum Tractor Size | 3933 lb. |
| Minimum Tractor Size | 1784 kg |
Warranty
| Warranty Time Period | 1 year |
Setup Time
| Labor Hours | 12 |
