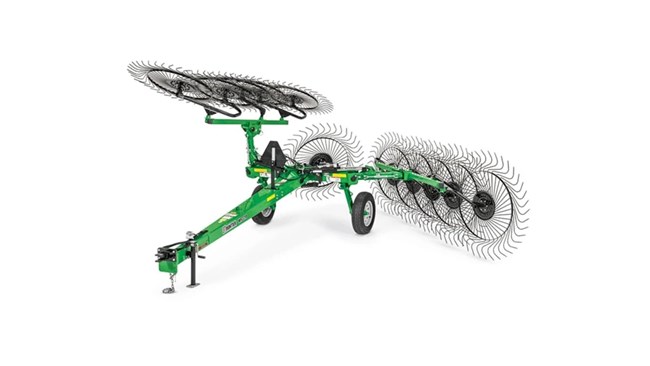

John Deere WR3208

Double tap to zoom



Features

Quick and Easy Rake Adjustments Points

Close-up studio view of the adjustment point on green wheel rake bar with circular rake in the background

The WR32 Series features three adjustment points for windrows, allowing for optimal hay gathering in various conditions. The adjustments include rake width, windrow width, and rake wheel down pressure, enhancing efficiency and performance on uneven terrain.

Designed for High-Capacity and a Uniform Finish

Side left view of a WR3212 wheel rake at work on hay in a field

The WR32 Series High-Capacity Carted Wheel Rake offers high under-frame clearance and ample space between transport and raking wheels, allowing a high volume of crop to pass through without plugging. This enhances productivity and ensures a consistent windrow finish when the wings are raised.

Larger Raking Wheels for Added Productivity

Side left view of a WR3212 wheel rake on hay with attached 5E tractor in the background

The 60-in. (152.4-cm) raking wheels rotate more slowly than 55-in. (139.7-cm) wheels at the same ground speed, reducing leaf loss and producing cleaner windrows for higher quality hay. Their larger diameter also extends tine life.

Specifications

Rake wheel

Rake Wheel Quantity8
Rake Wheel Diameter60 in.
Rake Wheel Diameter150 cm
Rake Wheel HubsTapered Bearings
Raking Width/Scratch - Min/Max (Dependent on Raking Width)16.5–17.67 ft
Raking Width/Scratch - Min/Max (Dependent on Raking Width)5–5.7 m
Rake Wheel Teeth Per Wheel40
Rake Wheel Teeth Diameter0.295 in.
Rake Wheel Teeth Diameter0.75 cm

Dimensions

Transport Length19.08 ft
Transport Length5.8 m
Frame Clearance39 in.
Frame Clearance99.06 cm
Weight (Operating)1437 lb.
Weight (Operating)652 kg
Transport Height8 ft
Transport Height2.4 m
Transport Width (Rake Wheels Removed)8.5 ft
Transport Width (Rake Wheels Removed)2.6 m
Transport Width (Rake Wheels Setup)12.2 ft
Transport Width (Rake Wheels Setup)3.7 m
Transport Wheels2 (ST205/75R15)
HitchClevis
JackStandard
Ground Pressure Rake WheelThreaded Rod Adjust for Pressure
Wing Cylinders2½” x 1⅛” x 16” in.
Wing Cylinders6.35 x 2.86 x 40.6 cm
Hydraulic GPMs (Required)7 GPM's
Hydraulic Pressure (Required)1900 psi
Tractor Hydraulics (Required)2 Hose; 1 Remote
Wing Flex (Up & Down)Limited
Windrow Width - Minimum130 cm
Windrow Width - Maximum210 cm
Windrow Width - Maximum82 in.
Windrow Width - Minimum53 in.

Wing

Adjustable HitchOptional
Center Kicker WheelOptional
One-Sided Valve KitOptional
Road Transport Lighting KitOptional
Turnbuckle KitN/A
Wind Panel KitOptional

Safety

Safety LightsOptional
Safety MarkingSMV
Hitch JackStandard
Safety ChainStandard

Tractor Compatibility

SCV TypeDual-acting (DA) valve
SCV Quantity1

Warranty

Warranty Time Period1 year
