John Deere LW1166
Double tap to zoom
LW1166
Handling
Overview:

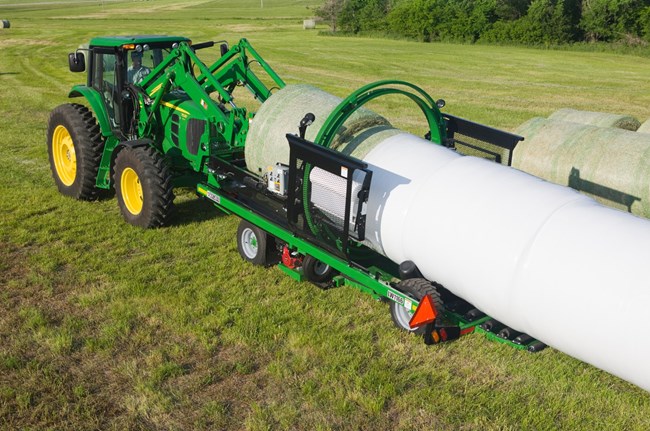

The Frontier™ LW1166 Inline Bale Wrapper wraps round bales keeping them protected from harsh weather and preserving nutrients for ideal livestock feed.
- Bale Push Is Integrated Into Machine
- Wrapping Cycle Shuts Down When Out of Film
- Wrapping Capacity of 120 Bales per Hour
- Central Control Box Operates All Hydraulic Functions
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

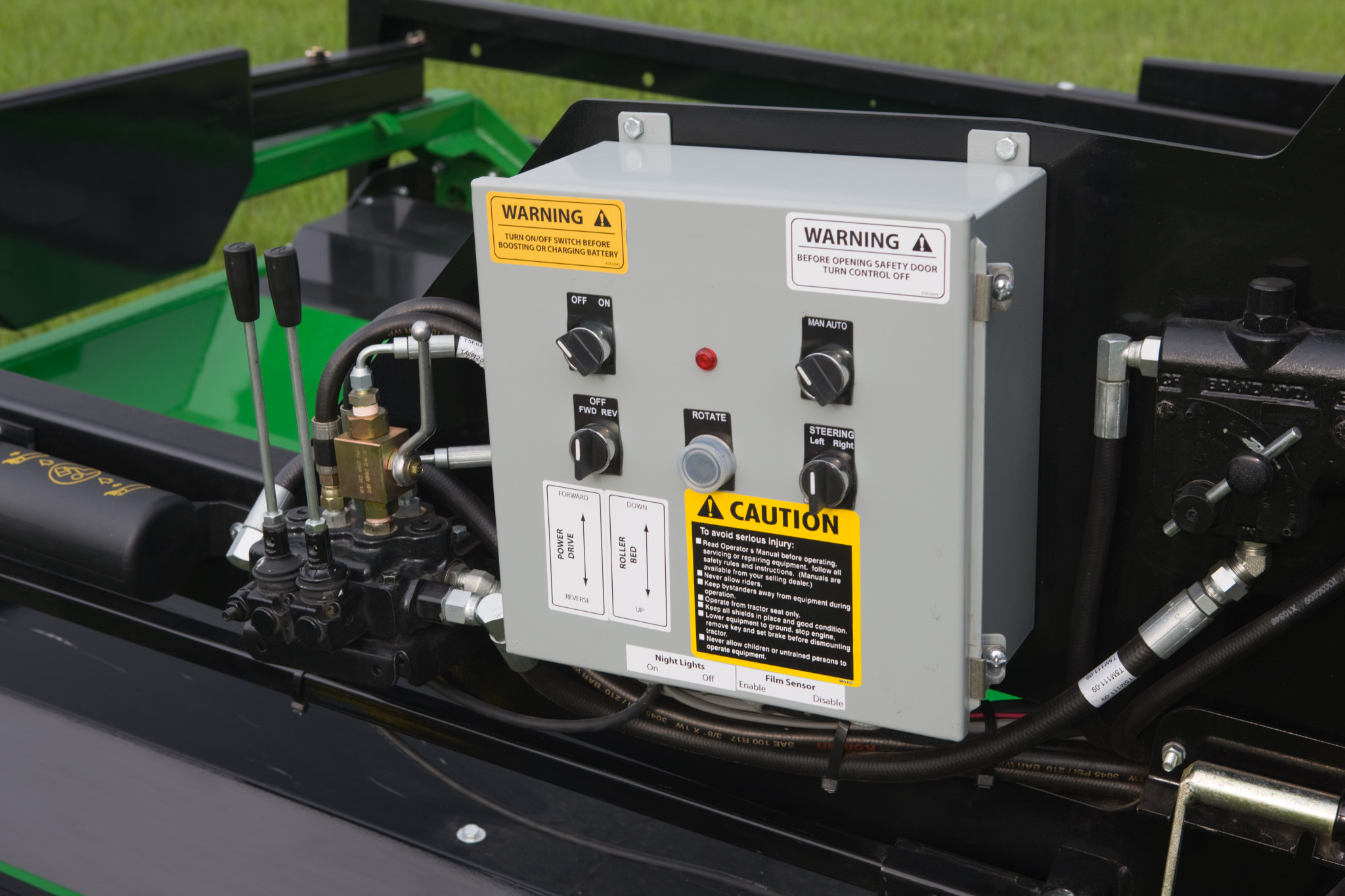

Control Center
The control box and levers serve as the machine’s control center, allowing users to turn the unit on and off and manage the bale ramp and push. This centralized control enhances operational efficiency.

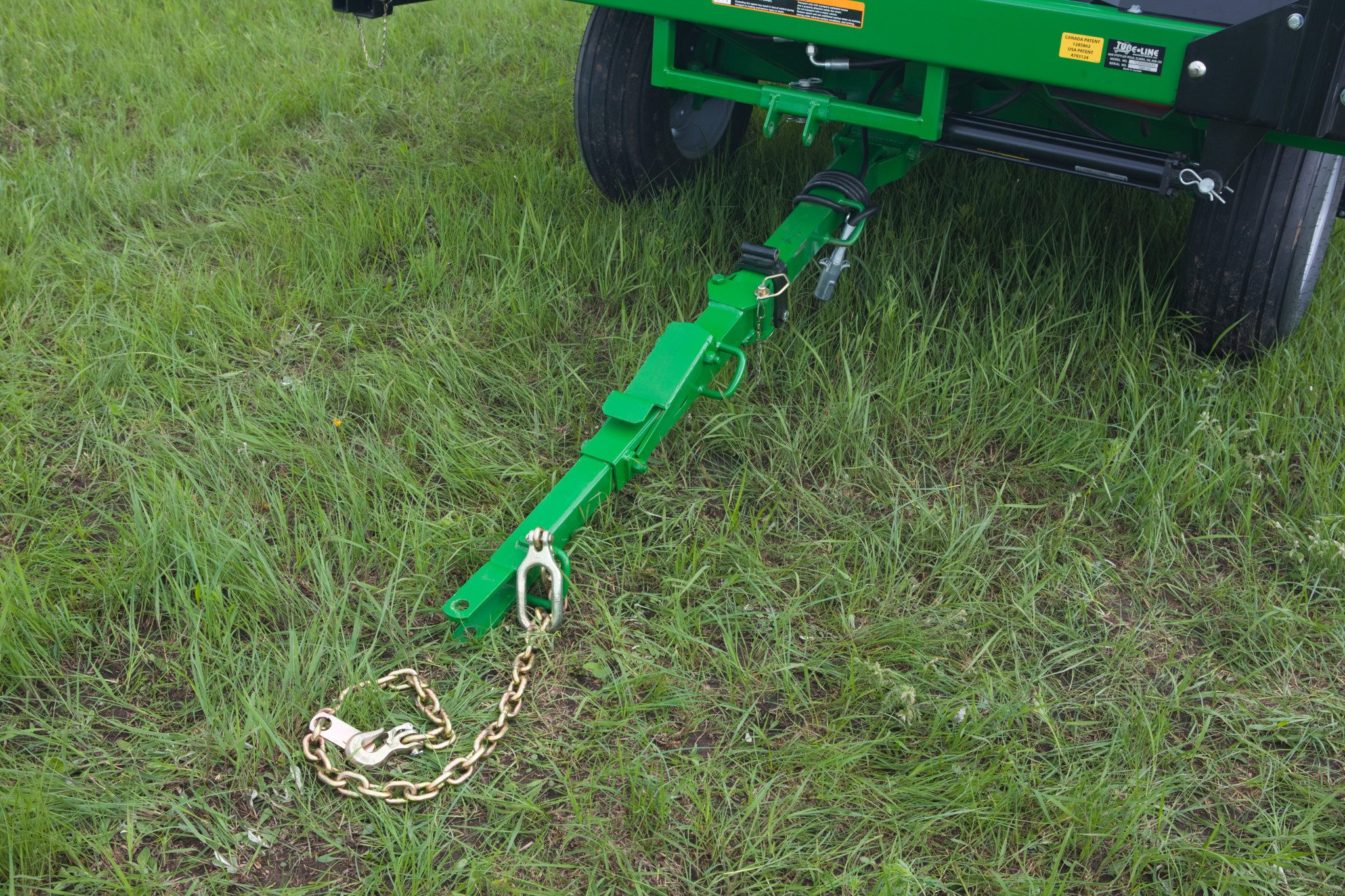

Adjustable Tongue
The adjustable tongue folds neatly out of the way for wrapping, making it easy to reposition the machine. This feature aids in quick and easy movement, saving time and money during operation.
Integrated Bale Push
An integrated bale push feature moves the bale to the back of the wrapper. Operators can use an optional push-off arm to extend and push the bale onto the ground, simplifying the bale unloading process.
Specifications
Bale Capacity
| Round Bale Diameter | 1.7 m |
| Round Bale Diameter | 5.5 ft |
Wrapping System
| Bale Guide Rollers | Two standard |
| Cycle Time | Adjustable with limit switches |
| Bale Alignment | Fixed bale guides |
| Hoop Speed | Adjustable flow control valve |
| Film Tensioners | Two aluminum rollers: 76.2 cm / 30 in. with stretch: 55 percent |
| Wrapping Capacity | 120 bales per hour |
Hitch
| Hitch Length | Adjustable |
| Hitch Type | Folding |
Warranty
| Machine Warranty | 1 year |
Weight
| Weight | 2268 kg |
| Weight | 5000 lb. |
| Towing Unit Minimum Weight | 3333 lb. |
| Towing Unit Minimum Weight | 1511.8 kg |
Controls
| Control Type | Electric over hydraulic 12 V |
| Steering | Hydraulic with optional remote control |
| Hydraulic System | Self-contained |
| Lift Mechanism | Hydraulic rear axle rotation |
| Power Drive | Optional, hydraulic single or dual wheel |
Setup Time
| Set-Up Time Labor Hours | 1 hr |
Lighting, Marking, And Safety
| Transport Safety Lights | Standard |
| Markings | SMV and reflectors |
| Safety Tow Chain | Standard |
| Jack | Standard |
Power
| Alternator Size | 18 amp |
| Start Type | Electric |
| Engine Type | Honda |
| Engine Size | 9.7 kW |
| Engine Size | 13 hp |
Dimensions
| Overall Machine Length | 5.5 m |
| Overall Machine Length | 18 ft |
| Overall Machine Height | 9 ft |
| Overall Machine Height | 2.7 m |
| Overall Machine Width | 2.7 m |
| Overall Machine Width | 9 ft |
| Overall Machine Shipping Length | 5 m |
| Overall Machine Shipping Length | 16.4 ft |
Final Bale Push Off
| Bale Unloading | Manual cross tube |
| Bale Pusher | Self-contained scissor linkage |
Tires
| Tire Quantity | 4 |
| Tire Size (Rear) | 27x10.5 Traction |
| Tire Size (Front) | 11L-15 Implement |
