John Deere HS2001
Double tap to zoom
HS2001
Handling
Overview:

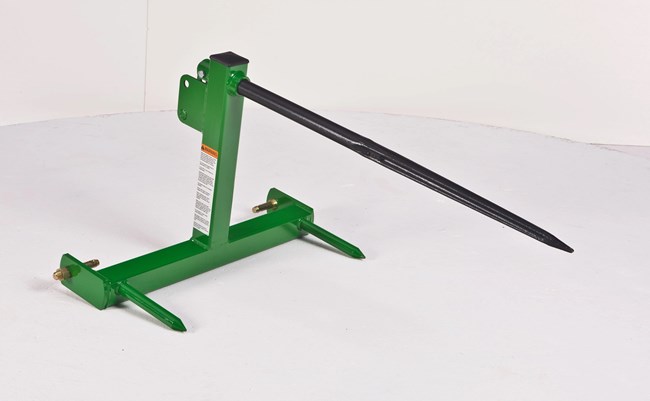

The Frontier™ HS2001 3-point hitch, single tine bale spear is rear-mounted and designed to help you easily move round bales around your operation. It is built with welded components and high-tensile, heavy-gauge steel to deliver years of dependable service.
- Forged-Steel Bale Spear Tine
- Hitch Provides a Fast Connection
- Strong Tubular Frame
- Can Handle 1 Round Bale Up to 2200 lb.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Tubular Frame is Built Strong
The strong tubular frame on the HS20 Series 3-Point Bale Spears can handle up to a 5-ft x 6-ft (1.5-m x 1.8-m) round bale. The frame is made of 4" x 4" square tubing. Note: Picture is representative of a two tine HS2002 bale spear. Number of tines will vary based on model selected.
Forged-Steel Bale Spear Tines are Strong and Long Wearing
Bale spear tines are made of forged steel to resist bending and provide longer wear capability. These spear tines attach to the frame with a bolt fastener, making them much easier to replace if a tine is damaged.
Hitch Provides a Super-Quick Connection
The single-spear HS2001 model is iMatch™ hitch system and quick-hitch compatible with Category 1 and 2 hitches.
Specifications
Bale Handling
| Bale Handling Type | Large round |
| Bale Handling Quantity | 1 |
| Capacity at 24 in. | 2200 lb. |
| Capacity at 24 in. | 997.9 kg |
Frame
| Framing Tube Size | 3x3 in. |
| Framing Tube Size | 7.6x7.6 cm |
Weight
| Operating Weight | 72 lb. |
| Operating Weight | 32.7 kg |
| Shipping Weight | 112 lb. |
| Shipping Weight | 50.8 kg |
Spears
| Primary Spears Quantity | 1 |
| Primary Spears Location | Top |
| Primary Spears Size (IMP) | 1.65x47 in. |
| Primary Spears Size (MTC) | 4.2x119.4 cm |
| Stabilizing Spears Quantity | 4 |
| Stabilizing Spears Location | Bottom |
| Stabilizing Spears Size (IMP) | 1.25x10 in. |
| Stabilizing Spears Size (MTC) | 3.2x25.4 cm |
Dimensions
| Height | 24.75 in. |
| Height | 62.9 cm |
| Width | 37.5 in. |
| Width | 95.3 cm |
| Length | 49.5 in. |
| Length | 125.7 cm |
Hitch
| Hitch Type Category | Category 1, Category 2 |
| Cat. 2 Quick Hitch | Yes |
Setup Time
| Set-Up Time Labor Hours | 0.25 |
Warranty
| Warranty Time Period | 1 year |
