Features
Designed to Keep You Comfortable All Day Long
With the shocks placed at each corner of the cab, the entire cab can go up or down from the resting position. This suspension makes the the machine one of the most comfortable cabs in the industry.
Precision Technology That Can Drive Efficiency
Integrated with advanced precision ag technology, including a high‑definition touchscreen display paired with a StarFire™ receiver and AutoTrac™ guidance, help to improve accuracy and reduce overlaps.

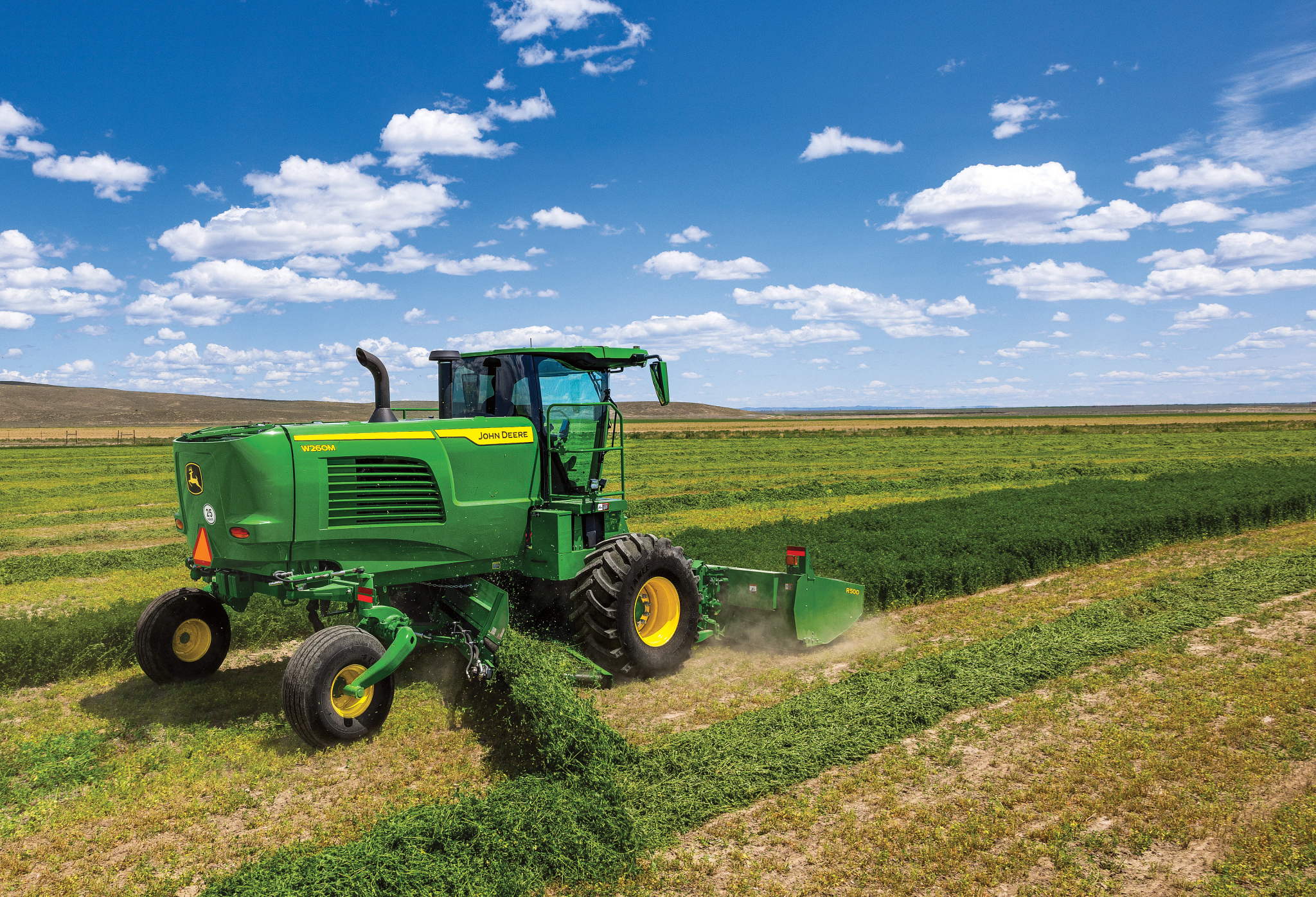

Merger Attachments Can Help Streamline Harvest
A merger attachment enables you to combine crops from multiple windrows into one, improving harvest efficiency and reducing passes. It helps maintain consistent feed into the machine, boosting productivity while minimizing field time and preserving crop quality in varying conditions.
Specifications
Engine
| Make | John Deere |
| Model | PowerTech™ PVS Final Tier 4 |
| Horsepower At 2,400 rpm | 235 hp |
| Horsepower At 2,400 rpm | 175 kW |
| Horsepower Peak At 2,200 rpm | 255 hp |
| Horsepower Peak At 2,200 rpm | 190 kW |
| Number Of Cylinders | 6 |
| Exhaust Direction | Vertical |
| Engine Displacement | 415 cu in. |
| Engine Displacement | 6.8 L |
| Low Idle Engine Speed | 900 rpm |
| Variable Idle Engine Speed | Electronic adjustable from 1,700 to 2,450 rpm |
| High Idle (No Load) Engine Speed | 2450 rpm |
| Rated Engine Speed | 2450 rpm |
| Oil Crankcase Capacity (With Filter) | 33.2 U.S. qt |
| Oil Crankcase Capacity (With Filter) | 31.4 L |
| Cooling System | 13 U.S. gal. |
| Cooling System | 49.2 L |
Electrical System
| Alternator | 240 amp |
| Battery | Heavy-duty 12 V |
Dimensions (With Platform Installed)
| Overall Length Without Platform | 225.5 in. |
| Overall Length Without Platform | 590 cm |
| Overall Height | 148 in. |
| Overall Height | 376 cm |
| Under Frame Clearance | 44 in. |
| Under Frame Clearance | 112 cm |
| Wheelbase | 146 in. |
| Wheelbase | 371 cm |
| Track Width | 133 in. |
| Track Width | 340 cm |
Weight
| Front Axle Weight | 9636 lb. |
| Front Axle Weight | 4370 kg |
| Rear Axle Weight | 5792 lb. |
| Real Axle Weight | 2627 kg |
| Total Weight | 15428 lb. |
| Total Weight | 6998 kg |
Hydraulics
| Reservoir Capacity | 25 U.S. gal. |
| Reservoir Capacity | 94.5 L |
Display And Input
| Display Type | Electronic touchscreen |
| Display Size | 8.4 in. |
| Display Size | 21.4 cm |
Fuel
| Fuel Capacity | 150 U.S. gal. |
| Fuel Capacity | 568 L |
| DEF Capacity | 7 U.S. gal. |
| DEF Capacity | 26.5 L |
Brakes
| Brake Type/Activation | Manual parking brake engage button on armrest; Parking brake automatically engages and disengages, integrated into multi-function lever |
Final Drives
| Final Drives Type | Direct drive heavy-duty wheel motors |
Cab
| Cab Construction | Uni-body, welded |
| Cab Glass | 58.7 sq ft |
| Cab Glass | 5.45 m² |
| Cab Seat | Air suspension |
| Steering Column | Dual-tilt telescoping |
| Cab Instructional Seat | Standard |
| Cab Windshield Wiper | Single blade |
| Air Conditioner | Standard with manual temperature control |
| Air Conditioner Refrigerant | R134a |
| Air Conditioner Capacity | 5.5 lb. |
| Air Conditioner Capacity | 2.5 kg |
| Air Conditioner Filters | Dry type, reusable |
| Air Conditioner Compressor | Rotary |
| Air Conditioner Overload Protection | Low-pressure and high-pressure cut off |
Hydraulic Platform Drive
| Number Of Pumps (Rotary/Auger) | 1 |
| Number Of Motors (Rotary/Auger) | 1 |
| Speed Control System | Electronic adjusted from cab |
| Pump Displacement | 7.02 cu in. |
| Pump Displacement | 115 cc |
| Motor Displacement (Per Revolution) | 4.6 cu in. |
| Motor Displacement (Per Revolution) | 75.4 cm³ |
Warranty
| Manufacturer's Warranty | Full machine: 1 year; Engine: 2 years or 2,000 hours |
| Service Plan (Extended Warranty) | PowerGard™ Protection Plan |
Speeds
| Low Range - With Single Speed | 18 mph |
| Low Range - With Single Speed | 28.8 km/h |
| Low Range - With Two Speed | 15 mph |
| Low Range - With Two Speed | 24.1 km/h |
| High Range 2-Speed/Mid Range 3-Speed - With Two Speed | 24 mph |
| High Range 2-Speed/Mid Range 3-Speed - With Two Speed | 38.4 km/h |
Tires
| Drive Wheel Standard | 620/75R26 Bar |
| Drive Wheel Option | Hybrid tires: 480/80R34; Radial button: 23.1R26 R3 |
| Caster Wheels | 14Lx16.1 8-ply ribbed |
Suspension
| Vehicle Suspension | Suspended rear axle in base |
| Cab Suspension | Air-ride seat suspension for smooth ride |
Platform Float System
| Platform Float System Type | Hydraulic piston accumulator |
| Platform Float System Control | Resume on header lower |
Ground Drive
| Ground Drive Type | Base: Single-speed hydrostatic; Optional: Two-speed hydrostatic |
Lights
| Front Lights | Six halogen |
| Side Lights | Four optional |
| Back Lights | Standard: Two halogen |
| Delayed Egress Lights | Yes |
Technology
| Automatic Steering Technology | John Deere GreenStar™ with integrated AutoTrac™ system |
