John Deere S300
Double tap to zoom
S300
Mowing
Overview:
Time is critical when it comes to mowing and drying down your hay crop. Cover more acres, with greater tractor compatibility and Quick Change Knives. All with the redesigned John Deere Zero Series Mower-Conditioners.
- Reduce Service Time With Quick Change Knives
- Updated Design and Styling
- Impeller, Urethane or V-10 Conditioners
- Cutting Platform Is Gear-Driven
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

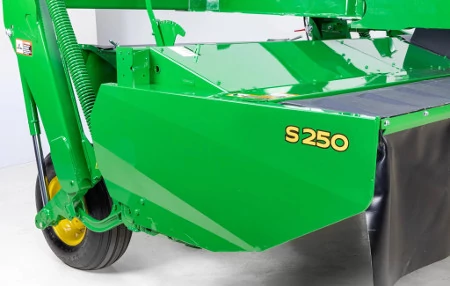

Compact Size and Versatility
The side-pull rotary mower-conditioner is compatible with a range of tractors due to its compact size. Requiring just 55 PTO hp (41 PTO kW), it offers simple hookup with a standard clevis hitch and enhanced maneuverability, making it suitable for various field conditions.

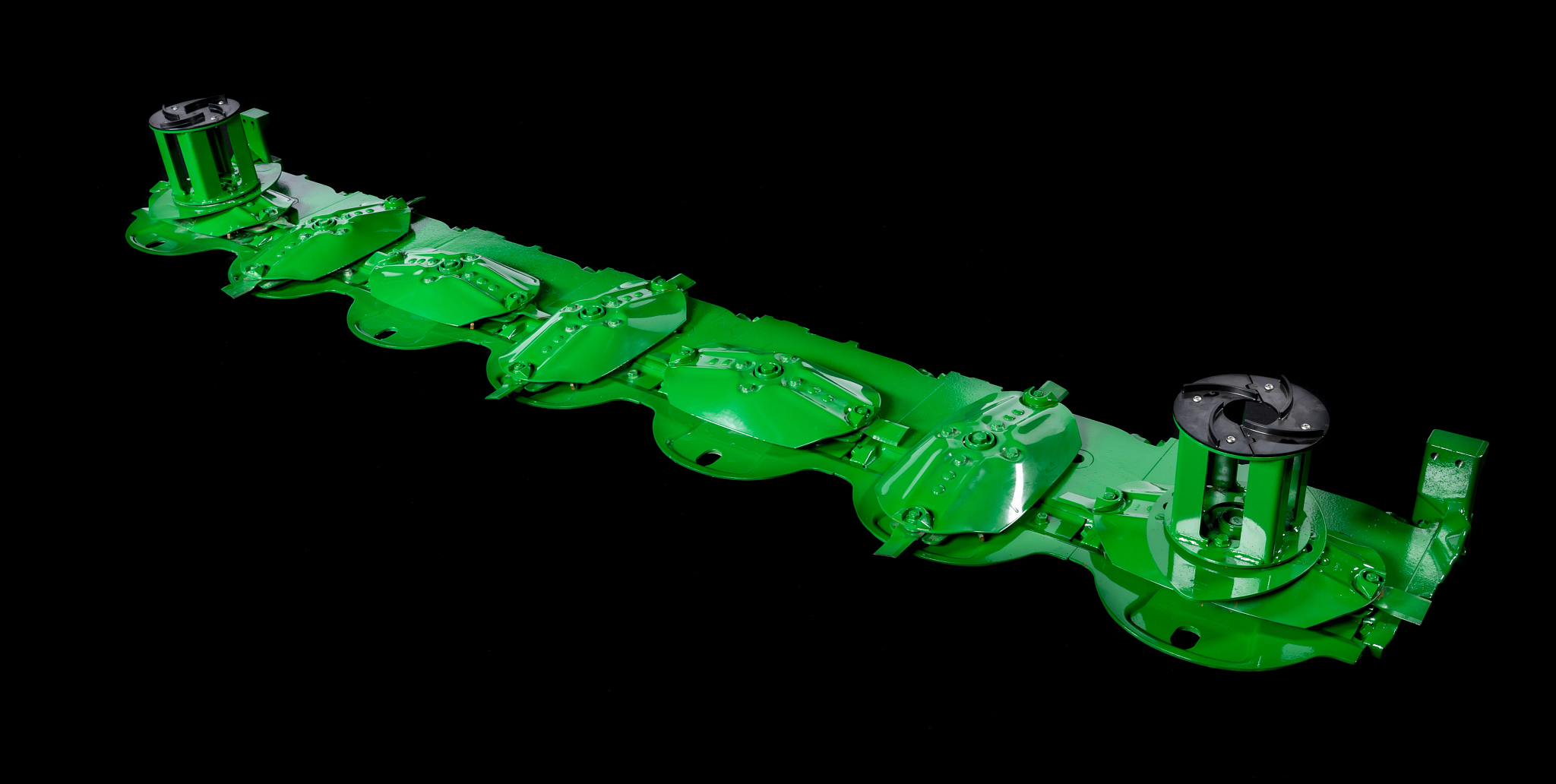

Robust Cutterbar Design
John Deere's patented cutterbar design consists of individual, diagonal-cut modules. This design facilitates easy serviceability, and each module offers protection against impact, minimizing maintenance and enhancing reliability over time.

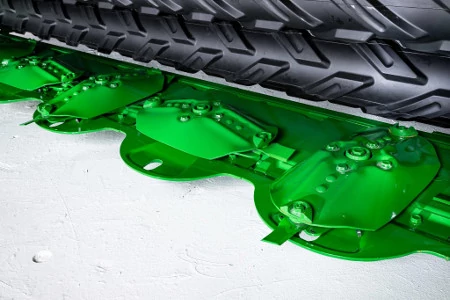

Efficient and Fast Adjustments
The quick-change knives and adjustable cutterbar and flotation settings allow the operator to easily adapt to field conditions, ensuring optimal performance without the need for extensive tools or time-consuming adjustments.
Specifications
Power Requirements
| Power Take-Off (PTO) Speed | 540, 1000 rpm |
| 540 RPM PTO | 48-60 kW |
| 540 RPM PTO | 65-81 hp |
| 1000 RPM 1-3/8 in PTO | 48-112 kW |
| 1000 RPM 1-3/8 in PTO | 65-150 hp |
Rolls Conditioner
| Width | 187.8 cm |
| Width | 73 in. |
| Type Of Material | Urethane or steel |
| Design | Urethane: Recessed cleat; Steel: Intermeshing flutes V-10 |
| Speed | 664 rpm |
| Drive | Telescoping shaft |
Tractor Equipment
| Tractor Connection | 21 spline |
| Standard Hitch | Clevis |
| Optional Hitch | Equal angle, Rockshaft swivel or Drawbar swivel |
| Hydraulic Pressure Required | 13790 kPa |
| Hydraulic Pressure Required | 2000 psi |
Cutterbar
| Type | John Deere |
| Cutting Width | 3 m |
| Cutting Width | 9.75 ft |
| Cutting Height | 2.8-9.8 cm |
| Cutting Height | 1.1-3.8 in. |
| Number Of Disks | 6 |
| Number Of Knives | 12 |
| Disk Speed | 2650 rpm |
| Knife Tip Speed | 307 km/h |
| Knife Tip Speed | 191 mph |
| Disk Drive | Gear |
| Lubrication | Hy-Gard oil |
| Oil Reservoir Capacity | 7 L |
| Oil Reservoir Capacity | 7.4 U.S. qt |
| Cutterbar Oil Check | Combination check, drain plug |
| Angle Adjustment | Manual or hydraulic |
| Angle Range - Minimum | 2 degree (angle) |
| Angle Range - Maximum | 8 degree (angle) |
| Cutterbar Protection | Shear hub |
| Adjustable Gauge Shoes | Yes |
Impeller Conditioner
| Width | 185.4 cm |
| Width | 73 in. |
| Diameter | 59.4 cm |
| Diameter | 23.4 in. |
| Tines Type | V-tines |
| Number Of Tines | 45 |
| Number Of Speeds | 2 |
| Drive | 3-V powerband belt and sheaves |
Dimensions
| Transport Width | 3 m |
| Transport Width | 9.75 ft |
| Transport Length | 6.2 m |
| Transport Length | 20.6 ft |
| Weight, Roll Conditioner | With Urethane roll conditioner: 2,272 kg 5,012 lb; With Steel roll conditioner: 2,322 kg 5,120 lb |
| Weight, Impeller Conditioner | 2130 kg |
| Weight, Impeller Conditioner | 4696 lb. |
| Standard Tires | 11L-15 standard, 31x13.5L optional |
Additional Information
| Date Collected | 2020-08-24 |
