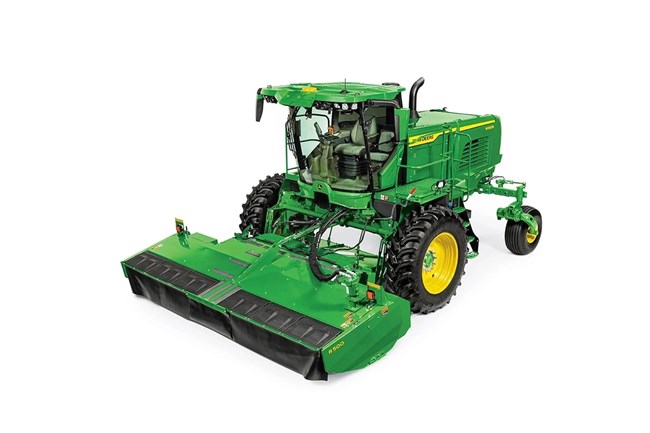

John Deere R500
Double tap to zoom
R500
Mowing
Overview:
The R500 Rotary Platform offers versatile conditioners, boosting drydown and quality via Tri-Lobe rolls and tine impeller.
- 16 Ft. (5 M) Cut Width
- Compatible With W200M, W235M, W235R and W260R
- Optional touchset™ Adjustments
- Impeller, Urethane, V10 or Tri-Lobe Conditioning Options
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Even Crop Flow with Overshot Cross Auger
The overshot cross auger improves windrow formation and cut quality by promoting even crop flow. Its aggressive design pulls in more crop from the edges, improving windrow uniformity and cut quality.
Modular-Designed Cutterbar
The John Deere cutterbar uses diagonal-cut, high-strength modules that can be individually removed without detaching the frame. Large idler gears transmit power between modules for durability, while reversible disk rotation and a shared oil reservoir enhance performance.
Uniform Windrow Formation
The R400 and R500 Platforms enhance windrow formation and uniformity with features like an angled frame for smoother crop merging, a rigid swathboard to prevent bunching, and tool-free adjustable forming shields that allow windrow widths from 36 to 85 in. (91.4 to 215.9 cm).
Specifications
Steel Conditioner Rolls
| Width | 105.5 in. |
| Width | 268 cm |
| Diameter | 10 in. |
| Diameter | 25.4 cm |
| Material | Steel |
| Surface | Intermeshing flutes |
| Speed | 1000 rpm |
| Drive | 4-V powerband belt, sheaves, gearcase, and drivelines |
Urethane Conditioner Rolls
| Width | 105.5 in. |
| Width | 268 cm |
| Diameter | 10 in. |
| Diameter | 25.4 cm |
| Material | Urethane |
| Surface | Intermeshing, intermittent recessed cleats |
| Speed | 1000 rpm |
| Drive | 4-V powerband belt, sheaves, gearcase, and drivelines |
Rotary Disk Cutterbar
| Number Of Disks | 10 |
| Reservoir Capacity | 12 U.S. qt |
| Reservoir Capacity | 11.4 L |
| Guard Angle | Adjustable |
| Guard Angle | 0-8 degree (angle) |
Dimensions
| Cutting Width | 16 ft |
| Cutting Width | 4.9 m |
| Cutting Height | 0.6-7 in. |
| Cutting Height | 17-178 mm |
| Overall Width (Transport) | 16.5 ft |
| Overall Width (Transport) | 5.3 m |
| Weight - With Impeller Conditioner | 4972 lb. |
| Weight - With Impeller Conditioner | 2255 kg |
| Weight - With Fluted Steel Conditioner | 4875 lb. |
| Weight - With Fluted Steel Conditioner | 2211 kg |
| Weight - With Urethane Conditioner | 4695 lb. |
| Weight - With Urethane Conditioner | 2130 kg |
| Weight - With Tri-Lobe Conditioner | 5000 lb. |
| Weight - With Tri-Lobe Conditioner | 2268 kg |
| Windrower Width (Depending On Crop Conditions) | 48-96 in. |
| Windrower Width (Depending On Crop Conditions) | 112-244 cm |
Impeller Conditioner
| Width | 105.5 in. |
| Width | 268 cm |
| Diameter | 19.7 in. |
| Diameter | 50 cm |
| Number Of V-Tines | 162 |
| Number Of Speeds | 1000 rpm |
| Drive | 4-V powerband belt, sheaves, and drivelines |
| Conditioner Hood | Adjustable, one lever |
Windrower
| Compatibility | W235, W260, W200M, W235M, W235R, W260R |
| Formation | TouchSet™ option: Adjustable swath board and forming shields from the operator's station; Less TouchSet: Manual adjustable swath board and forming shields |
