John Deere DM5050
Double tap to zoom
DM5050
Mowing
Overview:
The DM5050 Disc Mower is designed to support reliable performance, efficient operation, and operator confidence, combining practical features to help customers work productively across a wide range of conditions.
- Rope System Transport Latch
- Quick-Remove Shear Hub Assembly
- DM5050 & 5060 iMatch™ and Quick Coupler Compatible
- DM5070 Cat. 2 Quick Coupler Compatible
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

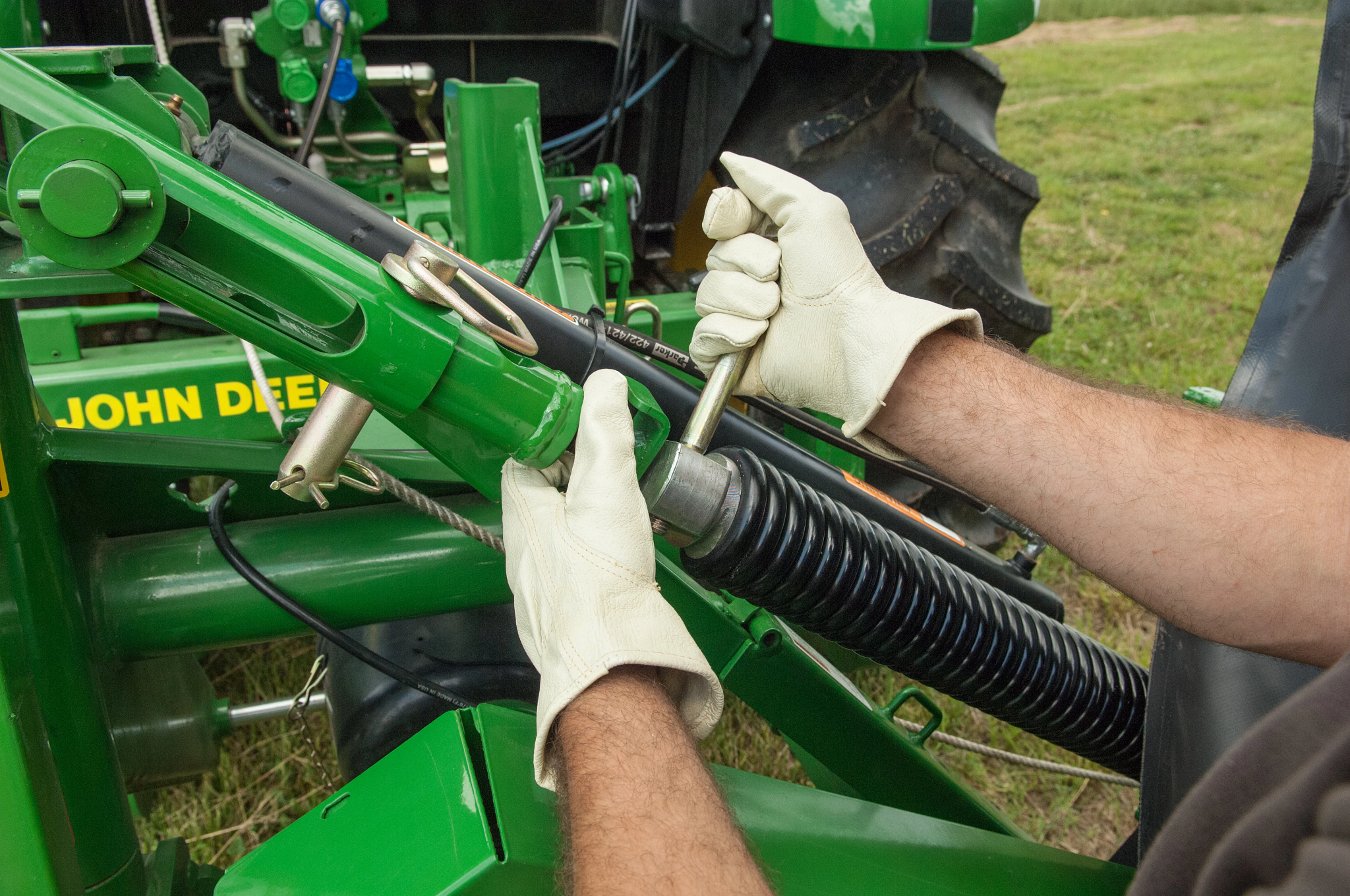

Simple Float Spring Tension Adjustment
Set the float spring to get maximum performance during operation. Adjust properly so the down pressure does not damage crop stubble as the skid shoes pass through the field.

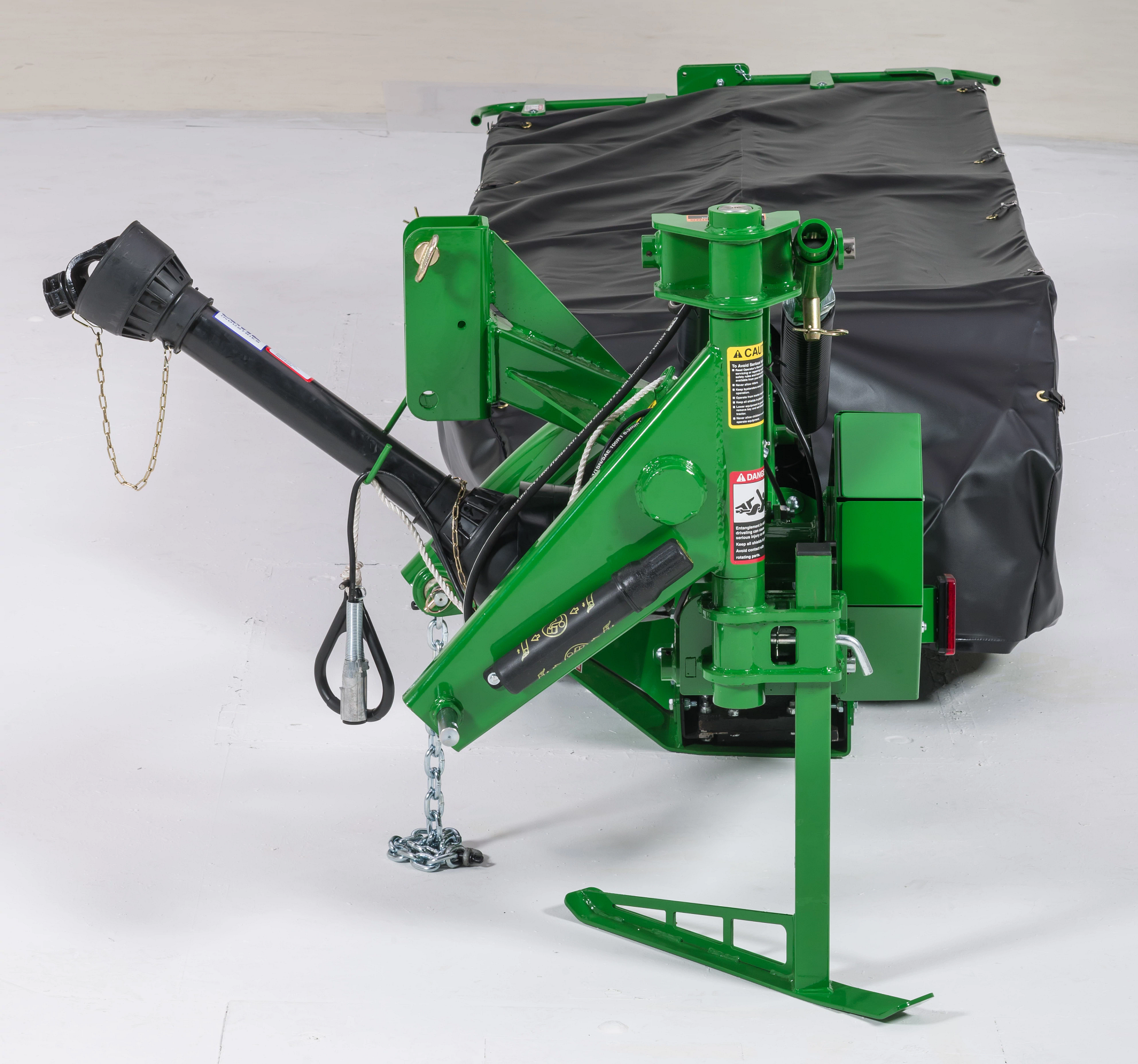

Park Stand and Arm System
The DM50 Series Disc Mower park stand and parking arm work together to transfer the mower’s weight to the cutterbar while in the parked position. This makes the attachment process easier, saving time and frustration.
Shear Hub Assembly Serviceability
The DM50 Series makes cutterbar service simple with only four bolts needed to remove each disc, and another four for the shear hub assembly. This design minimizes the time and cost associated with shear hub replacements, enhancing maintenance efficiency.
Specifications
Setup Time
| Setup Time Labor Hours | 1 hr |
Dimensions
| Cutting Width | 6.6 ft |
| Cutting Width | 1.98 m |
| Swath Width | 4.6 ft |
| Swath Width | 1.4 m |
| Operation Of Cutting Angle | +/- 25 degree (angle) |
Tractor Compatibility
| Minimum PTO | 40 hp |
| Minimum PTO | 29.8 kW |
| PTO Drive Rpm | 540 rpm |
Hitch
| Hitch Category | Category 1, Category 2 - iMatch and Quick-Coupler compatible |
| Hitch Type | 3-point |
Weight
| Weight Per Machine | 874 lb. |
| Weight Per Machine | 396 kg |
| Shipping Weight (1 Unit And Crate) | 2100 lb. |
| Shipping Weight (1 Unit And Crate) | 953 kg |
Warranty
| Warranty Time Period | 1 year |
Cutting Discs
| Cutting Disc Quantity | 5 |
| Cutting Disc Rpm | 3000 rpm |
Knives
| Knives Quantity | 10 |
Cutterbar
| Cutterbar Lift Mechanism | Hydraulic |
V-belts with Tensioner
| V-Belts With Tensioner Quantity | 4 |
