John Deere DC1000
Double tap to zoom
DC1000
Mowing
Overview:
The DC1000 Disc Mower Caddy by John Deere offers unparalleled efficiency and ease of use, making mowing operations more productive and convenient for operators looking to streamline their hay harvesting processes.
- Adjustable Height Clevis Hitch
- Hydraulic Lift 3-Point Hitch
- Ribbed Tires for Smooth Ride
- Improved Stability with Standard John Deere Weights
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Hydraulic Lift 3-Point Hitch
Equipped with a hydraulic lift 3-point hitch and complete with a cylinder, hoses, and tips, the task of raising and lowering the caddy is efficient and straightforward.
Adjustable Height Clevis Hitch
The DC1000 Series Disc Mower Caddy includes an adjustable clevis hitch that aligns with the tractor drawbar height, enhancing compatibility and ease of attachment.

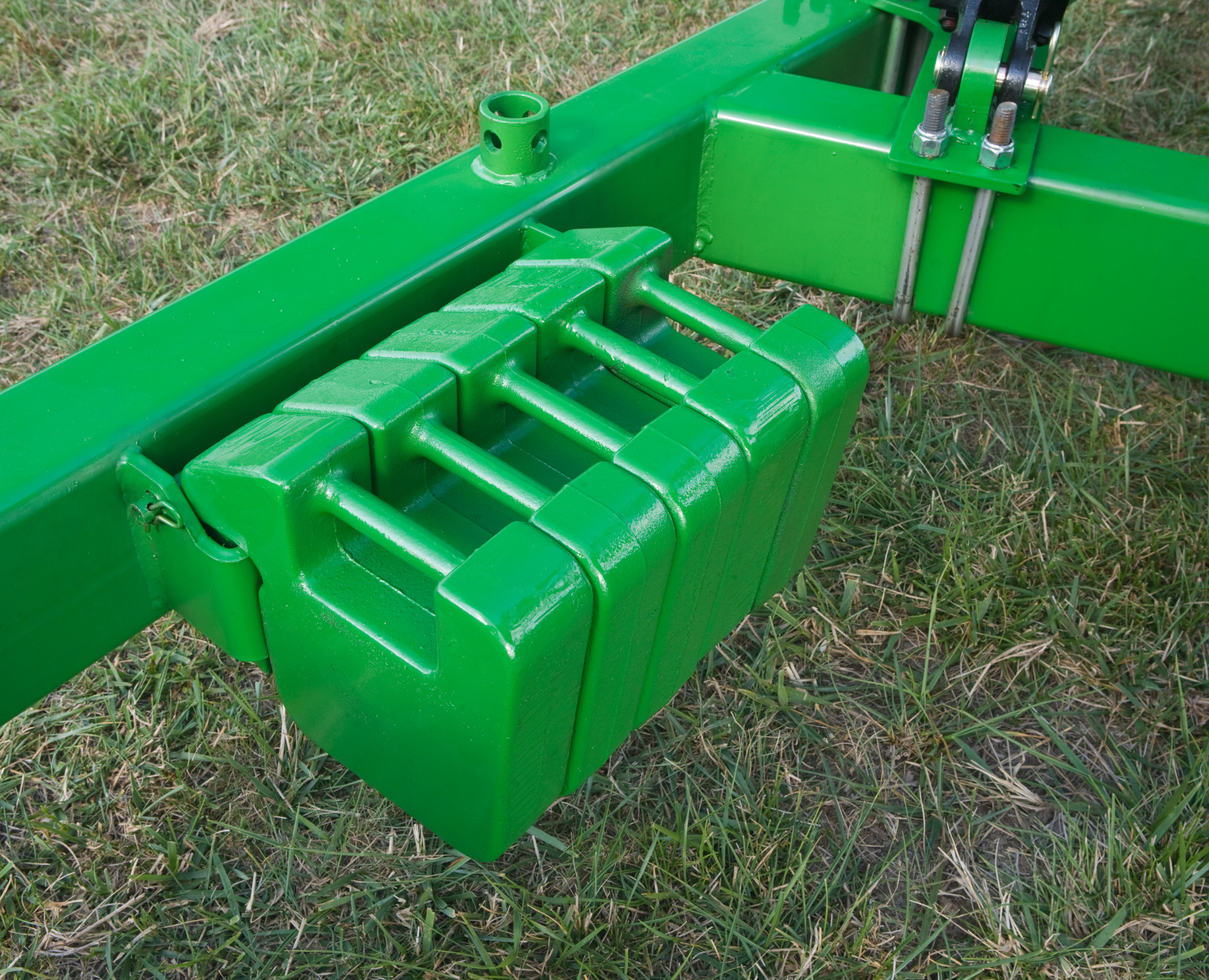

Improved Stability with Standard Weights
The caddy employs standard John Deere weights to enable variable integrated ballasting, enhancing stability during operation.
Specifications
Tractor Compatibility
| Minimum Power | 15 hp |
| Minimum Power | 11.2 kW |
| PTO Speed | 540 rpm |
| PTO Type | Equal angle Category 4 |
Ballast Requirements
| Internal Ballasting | Standard |
| External Ballasting | Up to 10 suitcase weights |
Lighting and Safety
| Transport Lights | 11L x 15SL |
| Safety Chain | Standard |
| Safety Guards | Standard |
| Markings | SMV |
| Jack Type | Screw-adjustment |
Dimensions
| Transport Height | 3.6 ft |
| Transport Height | 1.1 m |
| Transport Width | 6.9 ft |
| Transport Width | 2.1 m |
| Transport Length | 11.67 ft |
| Transport Length | 3.6 m |
| Transport Clearance | 0.88 ft |
| Transport Clearance | 0.26 m |
| Maximum Compatible Disc Mower Cutting Width | 10.17 ft |
| Maximum Compatible Disc Mower Cutting Width | 3.1 m |
Weight
| Base Machine Weight | 1580 lb. |
| Base Machine Weight | 719 kg |
| Fully Ballasted Machine Weight | 2020 lb. |
| Fully Ballasted Machine Weight | 916 kg |
| Maximum Compatible Disc Mower Weight | 1421 lb. |
| Maximum Compatible Disc Mower Weight | 645 kg |
| Shipping Weight | 1803 lb. |
| Shipping Weight | 818 kg |
Tires
| Tire Hubs | 6 - Bolt |
| Tire Type | Ribbed implement |
| Tire Size | 11L x 15SL L |
Frame
| Frame Type | Tubular: 10x15 cm (4x6 in.) |
Setup Time
| Setup Time Labor Hours | 3 hours |
Warranty
| Warranty Time Period | 1 year |
Hitch
| Front Hitch Type | Drawn |
| Rear Hitch Type | Integral - Category 2 |
