John Deere D636

New Products / John Deere / John Deere Products / Hay and Forage Equipment / Mowing / D636

Double tap to zoom



Features

Interchangeable with Rotary Platforms

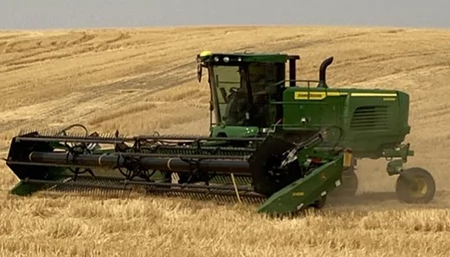

A self‑propelled windrower operating in a field of cut grain, showing its wide header collecting crop as it moves across the stubble

An interchangeable rotary platform can be swapped on W200M and R Series units in 30 minutes or less. Growers can use one traction unit for harvesting both small grains and hay.

Center-Driven Belts

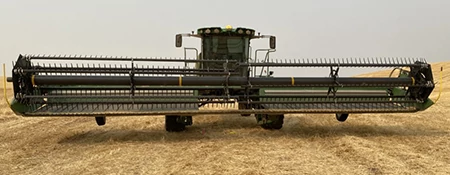

A front view of a wide draper platform attached to a self‑propelled windrower, positioned in a cut wheat field

The center-driven draper belts deliver increased torque and belt performance, enabling greater productivity with minimal slippage and enhanced performance in heavy crop conditions.

Positive-Feeding Reel Handles All Crop Conditions

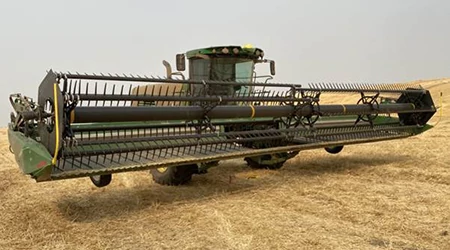

A wide draper platform attached to a self‑propelled windrower, viewed from a front angle while positioned in a cut wheat field

An improved reel boosts durability in heavy crop conditions and a dual drive provides operators with greater versatility and increased reel torque. Additionally, the system can be quickly reconfigured for higher reel speeds to suit lighter crop conditions by changing quick couplers.

Specifications

Reel

Reel TypeHydraulic
Number Of Bats6
FingersPlastic
Diameter44 in.
Diameter111.8 cm
Height ControlHydraulic, adjustable from cab
Speed ControlMulti-function lever, in cab
Reel LiftHydraulic, adjustable from cab
Reel Fore And AftHydraulic, adjustable from cab

Draper And Decks

Belt WidthV-guided draper belt
Belt Width42 in.
Belt Width106.7 cm
Delivery Opening Width - Single Swath Opening80 in.
Delivery Opening Width - Single Swath Opening203.2 cm
Delivery Opening Width - Double Swath Opening54 in.
Delivery Opening Width - Double Swath Opening137.2 cm

Cutterbar

Cutterbar TypeJohn Deere double-cut knives: 10.2 cm, 4 in.
Cut Width (Length)30 ft
Cut Width (Length)9.1 m
Knife DriveTwo hydraulic motors and two knife drives; Optional: Two hydraulic motors and two knife drives
Knife Speed520 rpm
Stroke Length3.9 in.
Stroke Length98 mm
Cutterbar TiltHydraulic, adjustable from cab

Weight

Approximate Weight - Base Platform Without Reel3513 lb.
Approximate Weight - Base Platform Without Reel1232 kg
Approximate Weight - Base Platform With Reel5975 lb.
Approximate Weight - Base Platform With Reel2710 kg

Dimensions

Operating Width30 ft
Operating Width9.1 m
Transport Width - Reel Fully Retracted8.5 ft
Transport Width - Reel Fully Retracted2.6 m
Transport Height29.6 ft
Transport Height2.44 m
Transport Length - Hitch Extended40.8 ft
Transport Length - Hitch Extended12.5 m

Gauge Wheels And Transportation

Gauge Wheels Optional: Adjustable castoring gauge wheel
Integrated Slow Speed Transport SystemSelf-contained transport, including hitch, jack and axle, is conveniently stored on the swather table

Auxiliary Top Auger

Auxiliary Top Auger TypeOptional: Factory-installed cross-auger
