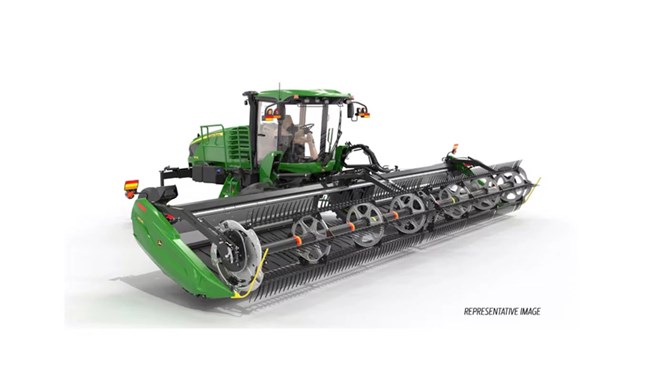

Features
Cutterbar and Frame Profile
The C-shaped cutterbar profile aids in smooth crop flow. It creates a high-quality seal between the draper and cutterbar, reducing material accumulation under the belts to help minimize crop loss, especially in shatter-prone conditions.
Positive-Feeding Reel
The robust reel design includes heavy-duty plastic fingers, enabling smooth and reliable operation across various crop conditions. This design reduces wear on components and minimizes crop shattering, promoting efficient and quieter operations at elevated reel speeds.
Excellent Visibility Across the Full Range of Tilt
The cutterbar design affords excellent visibility across all tilt ranges, allowing operators to easily see the cutterbar and belt from the cab, even with the optional top-crop conveying auger installed. Operators can tilt the cutterbar mechanically or hydraulically from the cab, adjusting the angle to suit varying crop and field conditions.
Specifications
Cutterbar
| Cut Width (Length) | 25 ft |
| Cut Width (Length) | 7.6 m |
| Knife Drive | Double knife drive |
| Knife Speed | 1400-1800 spm |
| Stroke Length | 3 in. |
| Stroke Length | 76 mm |
| Guards | Plug free |
| Hold Downs | Sheet metal - adjustment bolt |
Draper And Decks
| Belt Width | 50 in. |
| Belt Width | 127 cm |
| Delivery Opening Width | 69.9-75 in. |
| Delivery Opening Width | 177.5-190.5 cm |
| Delivery Opening Height - Center Link Fully Retracted | 47.2 in. |
| Delivery Opening Height - Center Link Fully Retracted | 119.9 cm |
| Delivery Opening Height - Center Link Fully Extended | 50.7 in. |
| Delivery Opening Height - Center Link Fully Extended | 128.7 cm |
| Draper Drive | Hydraulic |
| Operating Speed | 822 fpm |
| Operating Speed | 250 m/min |
| Deck Tilt | Hydraulic |
Reel
| Reel Type | Hydraulic |
| Number Of Bats | 6 only |
| Span | Single reel only |
| Finger Length | 11 in. |
| Finger Length | 290 mm |
| Finger Spacing (Staggered On Alternate Bats) | 4 in. |
| Finger Spacing (Staggered On Alternate Bats) | 100 mm |
| Center Tube Diameter (All Reel Sizes) | 8 in. |
| Center Tube Diameter (All Reel Sizes) | 203 mm |
| Finger Tip Radius (Adjustment Range - Factory Assembled) | 30.2-31.5 in. |
| Finger Tip Radius (Adjustment Range - Factory Assembled) | 76.6-80 cm |
| Diameter | 65 in. |
| Diameter | 165 cm |
| Operating Speeds | 822 fpm |
| Operating Speeds | 250 m/min |
Weight
| Platform Weight - 6 Bat | 4768 lb. |
| Platform Weight - 6 Bat | 2163 kg |
Knife Sections
| Knife Sections | Fine serration (14 teeth per inch) |
| Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted) | 49.8 in. |
| Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted) | 126.5 cm |
| Center Link Retracted | 5.1 degree (angle) |
| Center Link Extended | 12.5 degree (angle) |
Dimensions
| Platform Length | 25 ft |
| Platform Length | 7.6 m |
Gauge Wheels And Transportation
| Integrated Slow Speed Transport System | Not available |
