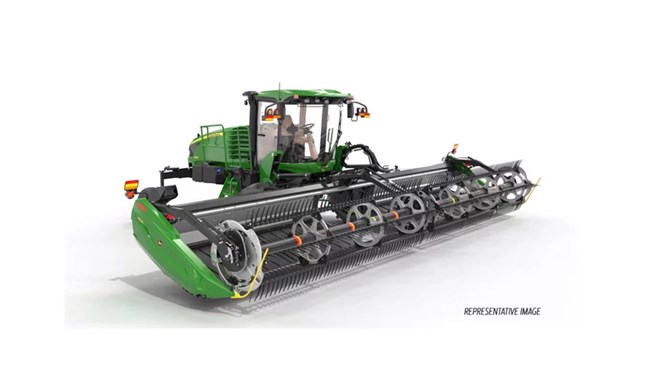

John Deere D1520

New Products / John Deere / John Deere Products / Hay and Forage Equipment / Mowing / D1520

Double tap to zoom



Features

Cutterbar and Frame Profile

Close-up of a windrower header showing the cutterbar with sharp triangular knives and the belt behind it, with pickup tines visible at the top edge

The C-shaped cutterbar profile aids in smooth crop flow. It creates a high-quality seal between the draper and cutterbar, reducing material accumulation under the belts to help minimize crop loss, especially in shatter-prone conditions.

Positive-Feeding Reel

Close-up of the end of a windrower header, showing the circular drive mechanism, reel arms with tines, and safety and lighting components

The robust reel design includes heavy-duty plastic fingers, enabling smooth and reliable operation across various crop conditions. This design reduces wear on components and minimizes crop shattering, promoting efficient and quieter operations at elevated reel speeds.

Excellent Visibility Across the Full Range of Tilt

View from inside a windrower cab looking over the header as it cuts through a tall crop field, with rows of harvested plants visible

The cutterbar design affords excellent visibility across all tilt ranges, allowing operators to easily see the cutterbar and belt from the cab, even with the optional top-crop conveying auger installed. Operators can tilt the cutterbar mechanically or hydraulically from the cab, adjusting the angle to suit varying crop and field conditions.

Specifications

Cutterbar

Cut Width (Length)20 ft
Cut Width (Length)6.1 m
Knife DriveDouble knife drive
Knife Speed1400-1800 spm
Stroke Length3 in.
Stroke Length76 mm
GuardsPlug free
Hold DownsSheet metal - adjustment bolt

Draper And Decks

Belt Width50 in.
Belt Width127 cm
Delivery Opening Width69.9-75 in.
Delivery Opening Width177.5-190.5 cm
Delivery Opening Height - Center Link Fully Retracted47.2 in.
Delivery Opening Height - Center Link Fully Retracted119.9 cm
Delivery Opening Height - Center Link Fully Extended50.7 in.
Delivery Opening Height - Center Link Fully Extended128.7 cm
Draper DriveHydraulic
Operating Speed 822 fpm
Operating Speed250 m/min
Deck TiltManual

Reel

Reel TypeHydraulic
Number Of Bats6
SpanSingle reel only
Finger Length11 in.
Finger Length290 mm
Finger Spacing (Staggered On Alternate Bats)4 in.
Finger Spacing (Staggered On Alternate Bats)100 mm
Center Tube Diameter (All Reel Sizes)8 in.
Center Tube Diameter (All Reel Sizes)203 mm
Finger Tip Radius (Adjustment Range - Factory Assembled)30.2-31.5 in.
Finger Tip Radius (Adjustment Range - Factory Assembled)76.6-80 cm
Diameter65 in.
Diameter165 cm
Operating Speeds822 fpm
Operating Speeds250 m/min

Weight

Platform Weight - 6 Bat3989 lb.
Platform Weight - 6 Bat1810 kg

Knife Sections

Knife SectionsFine serration (14 teeth per inch)
Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted)49.8 in.
Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted)126.5 cm
Center Link Retracted5.1 degree (angle)
Center Link Extended12.5 degree (angle)

Dimensions

Platform Length20 ft
Platform Length6.1 m

Gauge Wheels And Transportation

Integrated Slow Speed Transport SystemNot available
