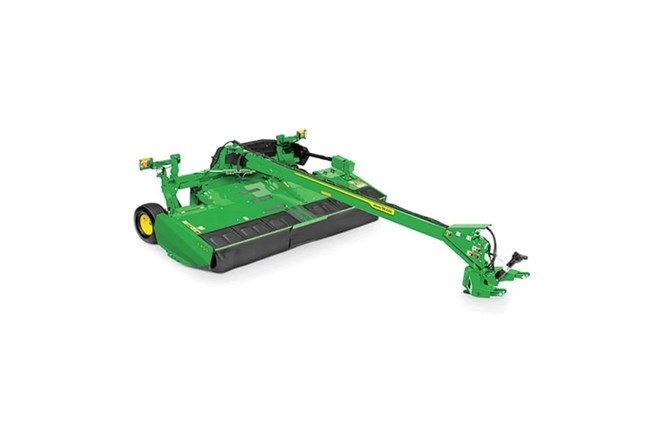

John Deere C450
Double tap to zoom
C450
Mowing
Overview:
Time is critical when it comes to mowing and drying down your hay crop. Cover more acres, with greater tractor compatibility and Quick Change Knives. All with the redesigned John Deere Zero Series Mower-Conditioners.
- Easier Serviceability with Modular-Design Cutterbar
- Reduce Service Time with Quick Change Knives
- Steel Roll Conditioners
- Impeller, Urethane, V-10 Conditioners or Tri-Lobe Conditioners
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Increased Performance and Durability with Cutterbar Protection
The mower-conditioner features several parts built to protect the cutterbar, enhancing cut performance and machine longevity. These include a low-profile design, gauge shoe, steel runners, rock guards, shear hub, overrunning clutch, and free-swinging knives.
Swap Out Knives Quickly
Changing dull or bent knives is no longer a time-consuming job with the John Deere quick-change knife (QCK) system. Simply insert the QCK tool into the disk and press down. The knives can be swapped out in seconds.
Crop Convergence System
The mower-conditioner utilizes a crop convergence system with open-style converging end drums. This system improves crop flow into the conditioner, minimizing recutting and clump formation. The design results in better mat consistency for conditioning and even windrow formation for more efficient harvesting.
Specifications
Power Requirements
| Power Take-Off (PTO) Speed | 1000 rpm |
| 1000 RPM 1-3/8 in PTO | 75-112 kW |
| 1000 RPM 1-3/8 in PTO | 100-150 hp |
Rolls Conditioner
| Width | 269 cm |
| Width | 106 in. |
| Diameter | 25.4 cm |
| Diameter | 10 in. |
| Type Of Material | Urethane or Steel |
| Design | Urethane: Recessed cleat; Steel Intermeshing flutes (V-10 and Tri-Lobe) |
| Speed | 800 rpm |
| Drive | Telescoping shaft |
Tractor Equipment
| Tractor Connection | 21 spline |
| Standard Hitch | Rockshaft swivel |
| Optional Hitch | Drawbar swivel |
| Hydraulic Pressure Required | 15513 kPa |
| Hydraulic Pressure Required | 2250 psi |
Cutterbar
| Type | John Deere |
| Cutting Width | 4.5 m |
| Cutting Width | 14.5 ft |
| Cutting Height | 1.6-11.8 cm |
| Cutting Height | 0.63-6.7 in. |
| Number Of Disks | 9 |
| Number Of Knives | 18 |
| Disk Speed | 2650 rpm |
| Knife Tip Speed | 307 km/h |
| Knife Tip Speed | 191 mph |
| Disk Drive | Gear |
| Lubrication | Hy-Gard oil |
| Oil Reservoir Capacity | 10.4 L |
| Oil Reservoir Capacity | 11 U.S. qt |
| Cutterbar Oil Check | Combination sight glass, drain plug |
| Angle Adjustment | Manual or hydraulic |
| Angle Range - Minimum | 2 degree (angle) |
| Angle Range - Maximum | 8 degree (angle) |
| Cutterbar Protection | Shear hub |
| Adjustable Gauge Shoes | Yes |
Impeller Conditioner
| Width | 268 cm |
| Width | 106 in. |
| Diameter | 59.5 cm |
| Diameter | 23.4 in. |
| Tines Type | V-tines |
| Number Of Tines | 72 |
| Number Of Speeds | 2 |
| Drive | 3-V powerband belt and sheaves |
Dimensions
| Transport Width | 4.5 m |
| Transport Width | 14.5 ft |
| Transport Length | 8.8 m |
| Transport Length | 28.9 ft |
| Weight, Roll Conditioner | With Urethane roll conditioner: 3,161 kg 6,969 lb; With V-10 steel roll conditioner: 3,270 kg 7,209 lb; With tri-lobe steel roll conditioner: 3,325 kg 7,330 lb |
| Weight, Impeller Conditioner | 3078 kg |
| Weight, Impeller Conditioner | 6785 lb. |
| Standard Tires | 31x13.5-15, 8PR |
Additional Information
| Date Collected | 2020-08-24 |
