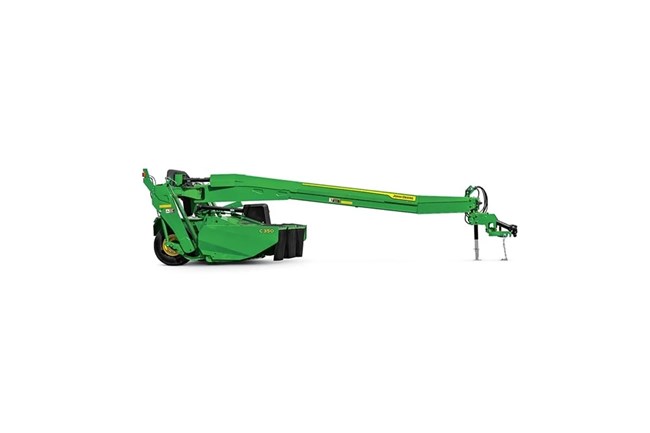

John Deere C350
Double tap to zoom
C350
Mowing
Overview:
Time is critical when it comes to mowing and drying down your hay crop. Cover more acres, with greater tractor compatibility and Quick Change Knives. All with the redesigned John Deere Zero Series Mower-Conditioners.
- Reduce Service Time with Quick Change Knives
- Impeller, Urethane or V-10 Conditioners
- Forming Canes Provide the Option of Wider Windrows
- Easier Serviceability with Modular-Design Cutterbar
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Increased Performance and Durability with Cutterbar Protection
The mower-conditioner features several parts built to protect the cutterbar, enhancing cut performance and machine longevity. These include a low-profile design, gauge shoe, steel runners, rock guards, shear hub, overrunning clutch, and free-swinging knives.
Crop Convergence System
The mower-conditioner utilizes a crop convergence system with open-style converging end drums. This system improves crop flow into the conditioner, minimizing recutting and clump formation. The design results in better mat consistency for conditioning and even windrow formation for more efficient harvesting.
Swap Out Knives Quickly
Changing dull or bent knives is no longer a time-consuming job with the John Deere quick-change knife (QCK) system. Simply insert the QCK tool into the disk and press down. The knives can be swapped out in seconds.
Specifications
Power Requirements
| Power Take-Off (PTO) Speed | 1000 rpm |
| 1000 RPM 1-3/8 in PTO | 68-112 kW |
| 1000 RPM 1-3/8 in PTO | 90-150 hp |
Rolls Conditioner
| Width | 236 cm |
| Width | 92.7 in. |
| Diameter | 25.4 cm |
| Diameter | 10 in. |
| Type Of Material | Urethane or Steel |
| Design | Urethane: Recessed cleat; Steel: Intermeshing flutes V-10 |
| Speed | 664 rpm |
| Drive | Telescoping shaft |
Tractor Equipment
| Tractor Connection | 21 spline |
| Standard Hitch | Equal angle |
| Optional Hitch | Rockshaft swivel or Drawbar swivel |
| Hydraulic Pressure Required | 13790 kPa |
| Hydraulic Pressure Required | 2000 psi |
Dimensions
| Transport Width | 3.5 m |
| Transport Width | 11.5 ft |
| Transport Length | 6.3 m |
| Transport Length | 20.6 ft |
| Weight, Roll Conditioner | With Urethane roll conditioner: 2633 kg 2633 lb, Swivel - 2916 kg 6429 lb; With Steel roll conditioner: Equal angle - 2695 kg 5941 lb |
| Weight, Impeller Conditioner | With Equal angle - 2479 kg 5465 lb; Swivel - 2762 kg 6089 lb |
| Standard Tires | 11L-15 standard, 31x13.5L 15 optional |
Cutterbar
| Type | John Deere |
| Cutting Width | 3.5 m |
| Cutting Width | 11.5 ft |
| Cutting Height | 2.0-9.5 cm |
| Cutting Height | 0.8-3.8 in. |
| Number Of Disks | 7 |
| Number Of Knives | 14 |
| Disk Speed | 2650 rpm |
| Knife Tip Speed | 307 km/h |
| Knife Tip Speed | 191 mph |
| Disk Drive | Gear |
| Lubrication | Hy-Gard oil |
| Oil Reservoir Capacity | 8.5 L |
| Oil Reservoir Capacity | 9 U.S. qt |
| Cutterbar Oil Check | Combination check, drain plug |
| Angle Adjustment | Manual or hydraulic |
| Angle Range - Minimum | 2 degree (angle) |
| Angle Range - Maximum | 8 degree (angle) |
| Cutterbar Protection | Shear hub |
| Adjustable Gauge Shoes | Yes |
Impeller Conditioner
| Width | 236 cm |
| Width | 92.7 in. |
| Diameter | 60 cm |
| Diameter | 23.5 in. |
| Tines Type | V-tines |
| Number Of Tines | 57 |
| Number Of Speeds | 2 |
| Drive | 3-V powerband belt and sheaves |
Additional Information
| Date Collected | 2020-08-24 |
