Features

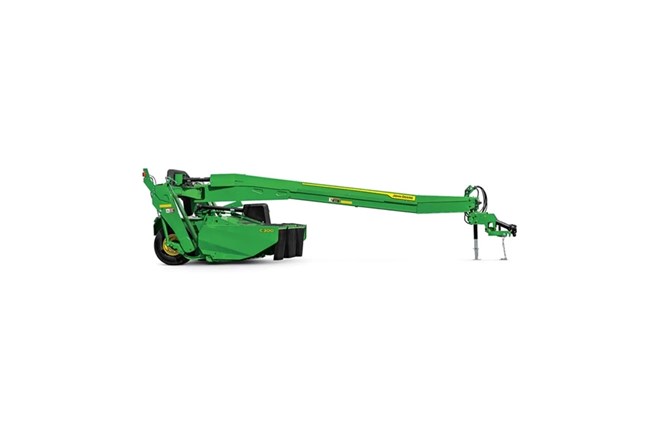

Increased Performance and Durability with Cutterbar Protection
The mower-conditioner features several parts built to protect the cutterbar, enhancing cut performance and machine longevity. These include a low-profile design, gauge shoe, steel runners, rock guards, shear hub, overrunning clutch, and free-swinging knives.
Crop Convergence System
The mower-conditioner utilizes a crop convergence system with open-style converging end drums. This system improves crop flow into the conditioner, minimizing recutting and clump formation. The design results in better mat consistency for conditioning and even windrow formation for more efficient harvesting.
Swap Out Knives Quickly
Changing dull or bent knives is no longer a time-consuming job with the John Deere quick-change knife (QCK) system. Simply insert the QCK tool into the disk and press down. The knives can be swapped out in seconds.
Specifications
Power Requirements
| Power Take-Off (PTO) Speed | 540, 1000 rpm |
| 540 RPM PTO | 52-60 kW |
| 540 RPM PTO | 70-81 hp |
| 1000 RPM 1-3/8 in PTO | 52-112 kW |
| 1000 RPM 1-3/8 in PTO | 70-150 hp |
| PTO Power Requirements | 52-60 kW |
| PTO Power Requirements | 70-81 hp |
Rolls Conditioner
| Width | 185 cm |
| Width | 73 in. |
| Diameter | 25.4 cm |
| Diameter | 10 in. |
| Type Of Material | Urethane or steel |
| Design | Urethane: Recessed cleat; Steel: Intermeshing flutes V-10 |
| Speed | 664 rpm |
| Drive | Telescoping shaft |
Tractor Equipment
| Tractor Connection | 21 spline |
| Standard Hitch | Equal angle |
| Optional Hitch | Rockshaft swivel or Drawbar swivel |
| Hydraulic Pressure Required | 13790 kPa |
| Hydraulic Pressure Required | 2000 psi |
Dimensions
| Transport Width | 3 m |
| Transport Width | 9.8 ft |
| Transport Length | 6.3 m |
| Transport Length | 20.6 ft |
| Weight, Roll Conditioner | With Urethane roll conditioner: Equal angle - 2,519 kg 5,553 lb Swivel - 2,851 kg 6,285 lb; With Steel roll conditioner: Equal angle - 2,568 kg 5,561 lb |
| Weight, Impeller Conditioner | With equal angle: 2,376 kg 5,238 lb; Swivel: 2,659 kg 5,826 lb |
| Standard Tires | 11L-15 standard, 31x13.5L 15 optional |
Cutterbar
| Type | John Deere |
| Cutting Width | 3 m |
| Cutting Width | 9.8 ft |
| Cutting Height | 2.0-9.5 cm |
| Cutting Height | 0.8-3.8 in. |
| Number Of Disks | 6 |
| Number Of Knives | 12 |
| Disk Speed | 2650 rpm |
| Knife Tip Speed | 307 km/h |
| Knife Tip Speed | 191 mph |
| Disk Drive | Gear |
| Lubrication | Hy-Gard oil |
| Oil Reservoir Capacity | 7 L |
| Oil Reservoir Capacity | 7.4 U.S. qt |
| Cutterbar Oil Check | Combination check, drain plug |
| Angle Adjustment | Manual or hydraulic |
| Angle Range - Minimum | 2 degree (angle) |
| Angle Range - Maximum | 8 degree (angle) |
| Cutterbar Protection | Shear hub |
| Adjustable Gauge Shoes | Yes |
Impeller Conditioner
| Width | 185 cm |
| Width | 73 in. |
| Diameter | 60 cm |
| Diameter | 23.5 in. |
| Tines Type | V-tines |
| Number Of Tines | 45 |
| Number Of Speeds | 2 |
| Drive | 3-V powerband belt and sheaves |
Additional Information
| Date Collected | 2020-08-24 |
