John Deere 1180A
Double tap to zoom
1180A
Mowing
Overview:

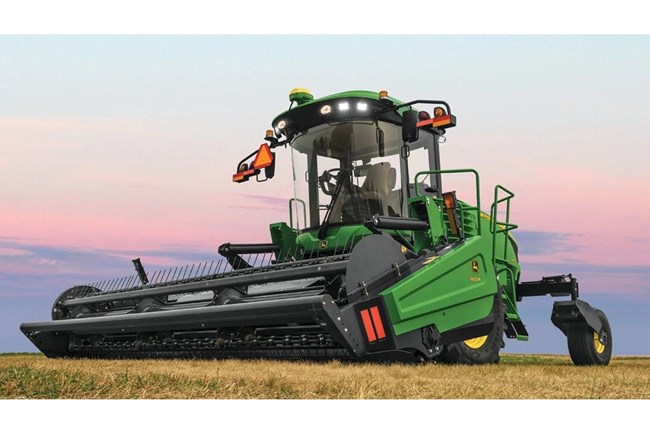

The 1180A Auger Platform offers unmatched efficiency and versatility in hay and forage operations with its robust construction, adjustable swathboard, and adaptable windrow formation designed for the W170 Windrower.
- Heavy-Duty Knife Drive and Cutterbar for Increased Reliability
- Heavy-Duty Multi-Bat Reel Improves Crop Flow
- Adjustable Reel-Cam Track to Control Crop Release
- Header Index Ensures Optimum Platform Speeds
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Center-Feed Auger with Poly Auger Pans
A 20-in. (508-mm) center-feed auger sits over durable poly auger pans. The poly material, resistant to mud and rock damage, supports smooth feeding even in challenging conditions and is easier to clean.
Knife Drive and Cutterbar
The twin-knife design uses two counter-stroking knives with two sections that overlap in the center of the platform, reducing cutting loads for increased stability and reducing vibrations with counter-stroking.
Multi-Bat Reel
Large-diameter, 1/4 in. (6.35 mm) reel teeth are stiff enough to maintain control of the crop from the cutterbar to the augers for even feeding, even in heavy crop conditions. The teeth nearest to the reel cam are formed to improve crop flow by the reel ends.
Specifications
Hydraulically Driven, Variable-Speed Reel
| Adjustable | Up and down, fore and aft |
| Tooth Bars | Six sectioned with regreasable bearings and six reel bats with end caps, seventh bat available for dealer installation |
| Variable Speed | 51-85 rpm |
| Diameter | 44 in. |
| Diameter | 112 cm |
| Drive | Hydraulic |
Dimensions
| Platform Cutting Width | 17.75 ft |
| Platform Cutting Width | 5.41 m |
| Platform Overall Width | 19.25 ft |
| Platform Overall Width | 5.87 m |
| Platform Weight | 6020 lb. |
| Platform Weight | 2733 kg |
| Windrower Width (Depending On Crop Conditions) | 36-100 in. |
| Windrower Width (Depending On Crop Conditions) | 91.5-254 cm |
Angled-Steel Conditioner Rolls
| Angled Steel Conditioner Rolls - Type | Intermeshing steel rolls |
| Diameter | 9.17 in. |
| Diameter | 23.3 cm |
| Speed | 601-810 rpm |
| Length | 102 in. |
| Length | 259 cm |
| Drive | Hydraulic motor to enclosed gearbox |
Augers
| Auger Diameter | Single auger |
| Auger Diameter | 20 in. |
| Auger Diameter | 50.8 cm |
| Auger Drive | Hydraulic direct-drive |
| Auger Speed | Variable hydraulic |
| Auger Speed | 230-320 rpm |
Cutterbar
| Cutterbar Drive | Timed dual knife |
| Cutterbar Speed | Variable |
| Cutterbar Speed | 1400-1950 spm |
| Cutterbar Guards | Two-tine, double heat treated forged pointed guards; Non-clog guards optional |
| Cutterbar Knife (Chrome) | Over-serrated, 9 serrations per inch or 14 serrations per inch available |
Windrower
| Compatibility | W170 Windrower |
| Formation | Adjustable swathboard (plus adjustable forming shields on windrower) |
