Features

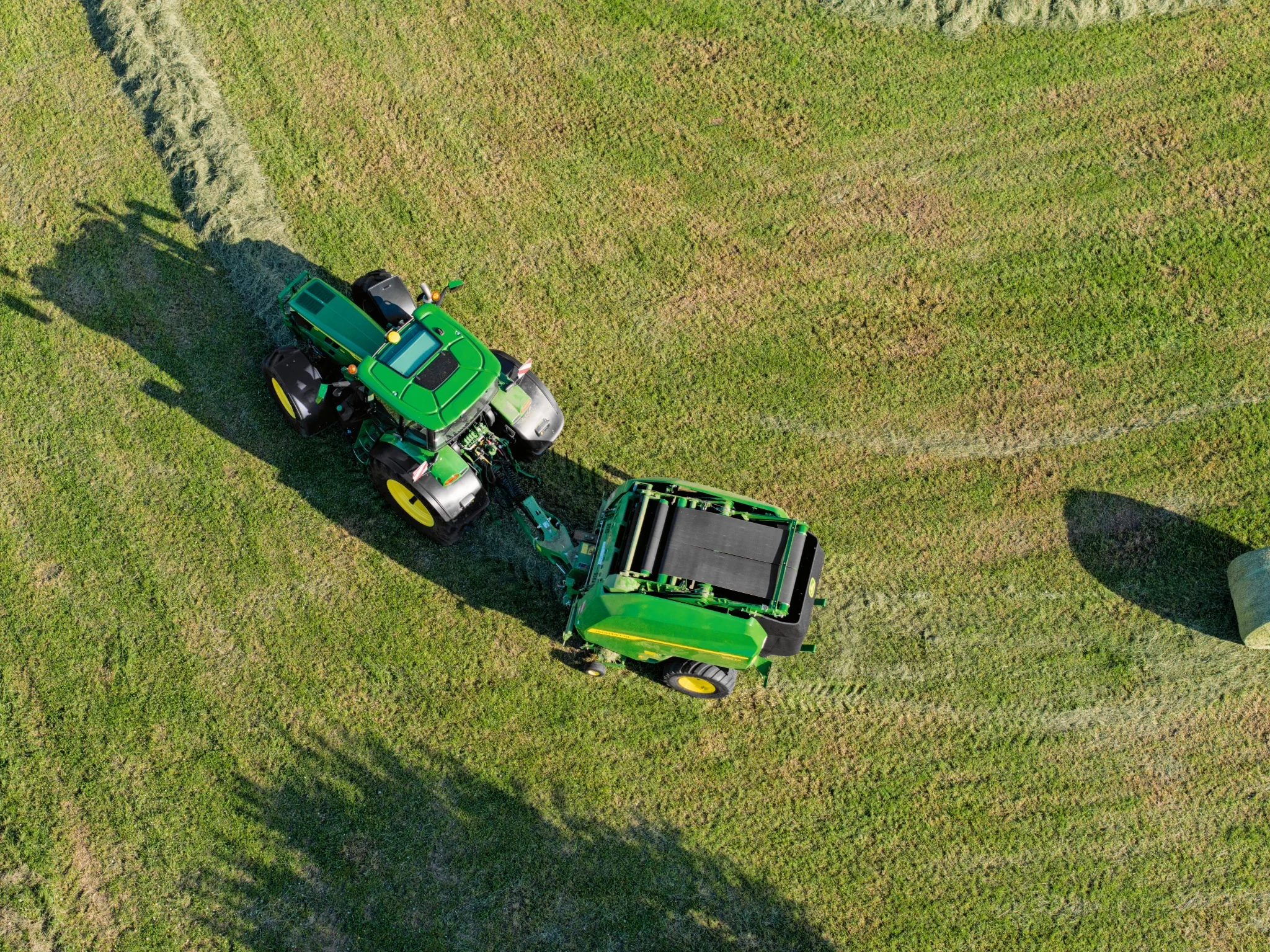

Weave Automation
This smart feature automatically guides your baler left and right along the windrow, creating consistently well-shaped bales without constant operator input. In addition, the active hitch automatically follows curved windrows, even in corners. The baler precisely tracks the windrow, eliminating missed crop and reducing tractor maneuvers.
Consistent Bales with Little Manual Effort
Baler Automation helps streamline operation by coordinating tractor and baler functions to optimize feeding, bale shape, and density. It helps reduce manual input, minimizes plugging, and improves consistency, allowing operators to maintain efficient, high-quality baling during a long day.
Compatible with specific tractors
Hydraulic Drop Floor for Fast Unplugging
The full-width hydraulic drop floor allows operators to quickly clear blockages from the cab. It drops to create extra space beneath the rotor, helping restore crop flow fast when working in heavy or high-moisture crop conditions.
Specifications
Pickup
| Working Width (DIN 11220) | 2200 (2120) mm |
| Working Width (DIN 11220) | 86.6 (83.46) in. |
| Pickup Design | Cam-track |
| Number of Tine Bars | 5 |
| Tines Diameter | 6 mm |
| Tines Diameter | 0.24 in. |
| Pickup Tine Spacing | 66 mm |
| Pickup Tine Spacing | 2.6 in. |
| Pickup Stripper Material | Stainless steel |
| Pickup Lift | Hydraulic |
| Pickup Gauge Wheels (Pneumatic) | Standard - Fixed / Option - Caster action |
| Windrow Roll Compressor | Standard |
Rotor
| Standard Feeder Rotor | Standard - RotoFlow HC (In-Line Rotor - 3 tines per revolution) |
| Standard Precutter Rotor | Option - MaxiCut™ HC68 (In-Line Rotor - 3 tines per revolution) |
| Standard Precutter Rotor- Maximum Number of Knives | 15 |
| Standard Precutter Rotor- Theoretical Length of Cut | 68 mm |
| Standard Precutter Rotor- Theoretical Length of Cut | 2.68 in. |
| Standard Precutter Rotor- Knives Group Selection | Option - (0-7-8-15) |
| Premium Precutter Rotor | Option - MaxiCut™ HC40 (In-Line Rotor - 3 tines per revolution) |
| Premium Precutter Rotor- Maximum Number of Knives | 25 |
| Premium Precutter Rotor- Theoretical Length of Cut | 40 mm |
| Premium Precutter Rotor- Theoretical Length of Cut | 1.57 in. |
| Premium Precutter Rotor- Knives Group Selection | Yes (0-12-13-25) |
| Knife Control | Control from the display |
| Knives Protection | Hydraulic protection |
| Dropfloor | Full-width dropfloor |
| Dropfloor Control | Control from the display |
| Knife Storage and Knife Filler Plates | Standard with MaxiCut™ HC |
Bale Chamber
| Bale Chamber Width | 1210 mm |
| Bale Chamber Width | 47.64 in. |
| Bale Diameter | 800 - 1600 mm |
| Bale Diameter | 31.50 - 62.99 in. |
| Maximum Bale Chamber Volume | 2.43 m³ |
| Maximum Bale Chamber Volume | 85.81 cu ft |
| Bale Formation | 3 starter rolls + 2 Heavy-Duty endless belts |
| Number of Belt Driving Rolls | 2 |
| Density System | Hydraulic - hydraulic cylinders + 1 spring |
| Diameter Control | Control from the display |
| Density Control | Control from the display |
| Softcore Control | Control from the display |
| Gate Lockout | Mechanical |
Transmission and Driveline
| Gearbox | T-Shape gearbox |
| Main Drive Protection | Cam-clutch on PTO |
| Pickup Protection | Integrated on pick-up tines |
| Power Take-Off | Standard - 540 | Option - 1000 rpm |
| Number of Baler Chains | 6 |
| Bale Chamber Chains Size | 1 ½-in. (24A) / 1 ¼-in. (20A) |
| Chain Lubrication | Automatic - Continuous Lubrication |
| Check Tensioner Straps | Standard |
Dimensions & Weights
| Length | 5.1 m |
| Length | 16.73 ft |
| Width | 2.72 m |
| Width | 8.92 ft |
| Height | 2.86 m |
| Height | 9.38 ft |
| Weight | 5325 kg |
| Weight | 11740 lb. |
Control System
| ISOBUS Compatibility | Standard |
| Display | Standard - G5e Display | Option - G5 Universal Display or Less Display |
| Bale Shape Indicators | Standard |
| Camera and Lights | Option - Vision Pack (1x camera + 2x service lights) |
| Automation | Standard - Gate & Speed Automation | Option - Weave Automation / Universal Gate Automation |
| Aux-Control | Standard |
Axles, Brakes, and Tires
| Axle Type | Straight axle (6 wheel nuts) |
| Brakes System | With brakes |
| Standard Tires | 500/55-20 |
| Conventional Tire Options | Not available |
| Radial Tire Options | 520/55R22,5 or 600/50R22,5 |
Tractor Requirements
| Minimum Tractor Power Requirements | 95 kW |
| Minimum Tractor Power Requirements | 130 hp |
| Hydraulic Requirements | 2x DE |
| Minimum Required Hydraulic Flow | 60 L/min |
| Minimum Required Hydraulic Flow | 15.85 gpm |
Binding System
| Binding Technology | Standard - Net binding | Option - Twine tying |
| Binding/Tying System | Net : From Front - Duckbill / Twine - 2 independent twine arms |
| Binding Material Storage | Net : 1 + 2 / Twine : 2 x 5 |
| Binding/Tying Mode | Automatic or Manual |
| Binding/Tying Control | Control from display |
Additional Information
| Date Collected | 2025-08-13 |
Miscellaneous
| Moisture Sensor | Option |
| Tongue Adjustment | Upper and lower position adjustable with adjustable rods |
| Road Lights and Road Signs | Standard |
| Jackstand | Manual - Double speed |
| Wheel Chocks | Option |
| Toolbox | Option |
| Bale Ejection | Standard - FRS (movable side panel) | Option - Discharge ramp |
Maintenance
| 50-Hour Power Take-Off Clutch | Standard |
| Manual Greasing | Standard |
| Automatic Greasing | Option - Tank system |
