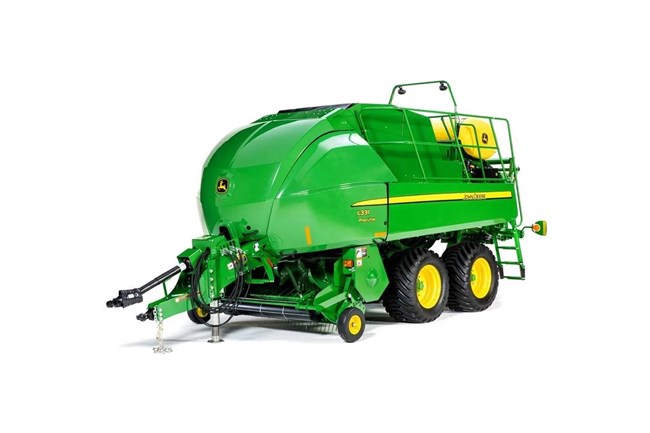

John Deere L331R
Double tap to zoom
L331R
Balers
Overview:
When your operation is all about the cow, the L331R Large Square Baler is the right choice for you. John Deere Precision Technology can help you evaluate season-to-season data to make decisions including productivity, fuel use, yield, weight and moisture.
- Bale Documentation With John Deere Operations Center™
- MegaWide™ Pickup With Mega Tough™ Pickup Teeth
- John Deere Moisture Sensor and Weighing System
- BalerAssist™ Drivetrain System
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

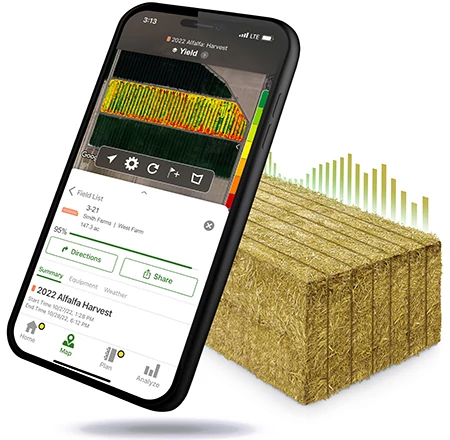

Near Real-Time Data
Get near real-time data on yield, moisture, and bale weight via John Deere Operations Center™. Make informed production and resource management decisions, ensuring high-quality baling while helping to reduce operational costs.
BalerAssist™
BalerAssist™ enables operators to clear plugs quickly from the cab, offering integrated controls for operational efficiency. It allows operators to back the plug out anywhere from between the pickup and the rotor by hydraulically moving the drivetrain forward or reverse using two speeds in either direction.

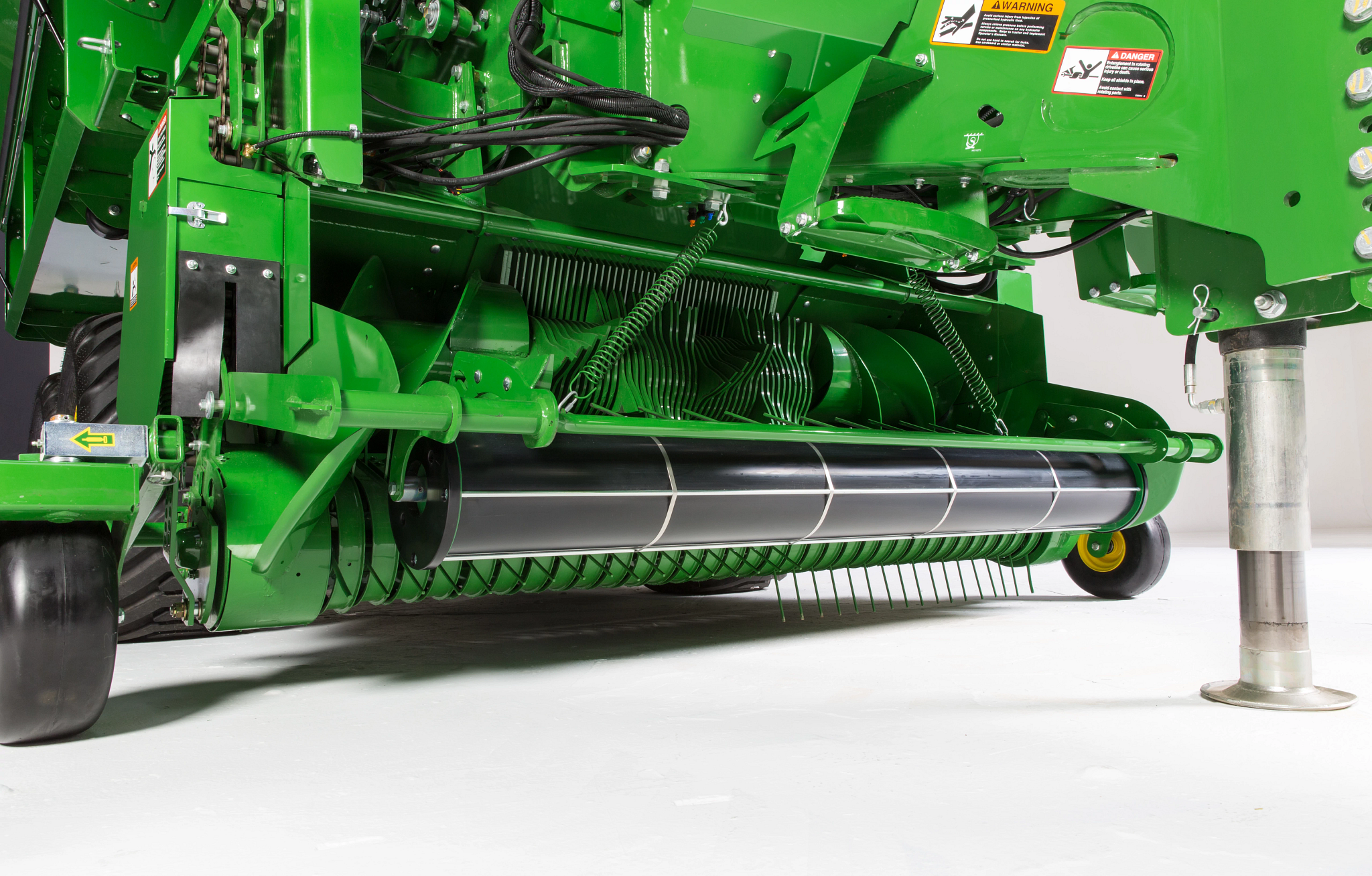

High-Capacity Feeding Helps Maximize Crop Collection
With a MegaWide™ pickup, this baler is designed to provide increased feeding capacity and efficient crop collection. Its low profile design ensures clean pickup with minimal loss, while a spiral rotor and compressor rods promote smooth crop flow when handling large, heavy windrows.
Specifications
Intake System
| High-Capacity Rotor | Yes |
| Knives | 11, 7, or 6 |
| Cutting Length | 44 mm |
| Cutting Length | 1.7 in. |
| Knife Protection | Individual spring |
| Slide Out Floor | Yes |
Machine Dimensions
| Machine Length | 7.8 m |
| Machine Length | 25.6 ft |
| Machine Width | 2.76 m |
| Machine Width | 9.1 ft |
| Machine Height | 2.7 m |
| Machine Height | 8.9 ft |
| Machine Weight | 7700 kg |
| Machine Weight | 16975 lb. |
| Minimum Tractor Requirement | 86 kW 115 PTO hp - no Pre-Cutter 97 kW 130 PTO hp - with Pre-Cutter |
Bale Chamber
| Number Of Plunger Strokes | 45 spm |
| Plunger Stroke | 695 cm |
| Plunger Stroke | 27 in. |
| Density Control | Three hydraulic cylinders |
| Bale Chamber Length | 3.05 m |
| Bale Chamber Length | 120 ft |
| Control | ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630 |
Bale Dimensions
| Bale | 80x90 cm cm |
| Bale | 3x3 ft in. |
| Bale Width | 80 cm |
| Bale Width | 32 in. |
| Bale Height | 90 cm |
| Bale Height | 35 in. |
| Bale Length | 60 cm |
| Bale Length | 24 in. |
Pickup
| Intake Width | 220 cm |
| Intake Width | 86 in. |
| Pickup Diameter | 25.6 cm |
| Pickup Diameter | 10 in. |
| Number Of Tine Bars 4-5 | 4 |
| Tine Spacing | 6.6 mm |
| Tine Spacing | 2.6 in. |
Wheels And Axles
| Single Axle | 600/50/22.5 or 710/40R/22.5 |
| Tandem Axle Steered (Optional) | 500/55/20 or 550/45/22.5 |
| Brakes System | Optional hydraulic |
Knotting System
| Number Of Knotters | 4 |
| Twine Capacity (Rolls) | 30 |
