Features
Oversized Pickup for Maximum Crop Collection
With an oversized, cam-track pickup, this model delivers high-capacity feeding and efficient crop collection. Its smooth in-line rotor and auger system ensure consistent flow, handling dense, heavy windrows with minimal material loss and reliable performance in all crop conditions.
Consistent Bales with Little Manual Effort
Baler Automation helps streamline operation by coordinating tractor and baler functions to optimize feeding, bale shape, and density. It helps reduce manual input, minimizes plugging, and improves consistency, allowing operators to maintain efficient, high-quality baling during a long day.
Compatible with specific tractors

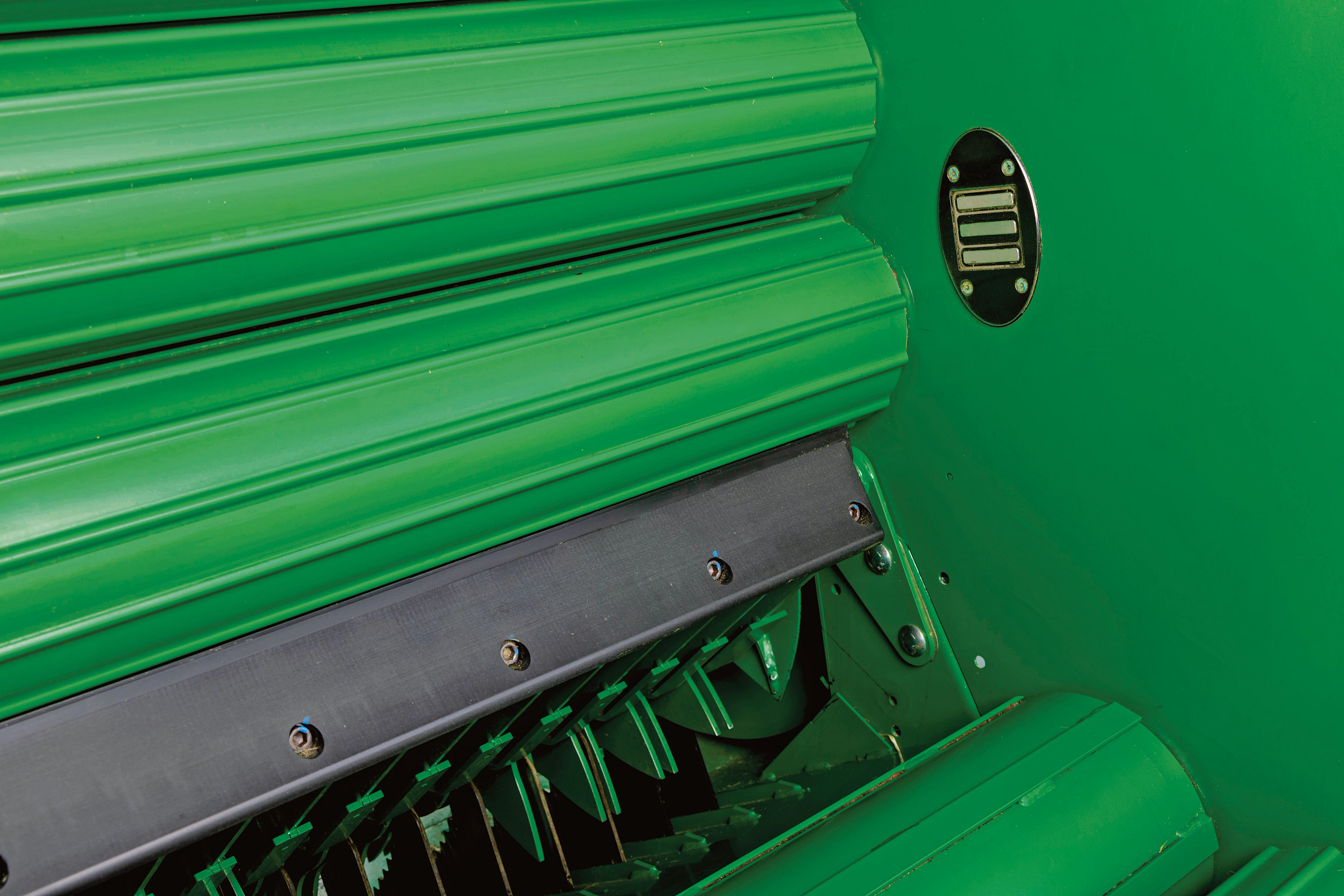

Optimized Roll Design for Consistent Bale Starts
Built for consistent performance with silage, it features three powered fixed rolls and two large-diameter belt-driven rolls assist in positive crop rotation and reliable bale start, even in wet silage. It is also designed to reduce slippage and plugging for more uniform bales.
Specifications
Pickup
| Working Width (DIN 11220) | 2200 (2120) mm |
| Working Width (DIN 11220) | 86.6 (83.46) in. |
| Pickup Design | Cam-Track |
| Number of Tine Bars | 5 |
| Tines Diameter | 6 mm |
| Tines Diameter | 0.24 in. |
| Pickup Tine Spacing | 66 mm |
| Pickup Tine Spacing | 2.6 in. |
| Pickup Stripper Material | Stainless steel |
| Pickup Lift | Hydraulic |
| Pickup Gauge Wheels (Pneumatic) | Standard - Fixed / Option - Caster action |
| Windrow Roll Compressor | Standard |
Rotor
| Standard Feeder Rotor | Not available |
| Standard Precutter Rotor | Standard - MaxiCut HC68 (In-Line Rotor - 3 tines per revolution) |
| Standard Precutter Rotor- Maximum Number of Knives | 15 |
| Standard Precutter Rotor- Theoretical Length of Cut | 68 mm |
| Standard Precutter Rotor- Theoretical Length of Cut | 2.68 in. |
| Standard Precutter Rotor- Knives Group Selection | Option - (0-7-8-15) |
| Premium Precutter Rotor | Option - MaxiCut HC40 (In-Line Rotor - 3 tines per revolution) |
| Premium Precutter Rotor- Maximum Number of Knives | 25 |
| Premium Precutter Rotor- Theoretical Length of Cut | 40 mm |
| Premium Precutter Rotor- Theoretical Length of Cut | 1.57 in. |
| Premium Precutter Rotor- Knives Group Selection | Yes (0-12-13-25) |
| Knife Control | Control from the display |
| Knives Protection | Hydraulic protection |
| Dropfloor | Full-width dropfloor |
| Dropfloor Control | Control from the display |
| Knife Storage and Knife Filler Plates | Standard with MaxiCut HC |
Transmission and Driveline
| Gearbox | T-Shape gearbox |
| Main Drive Protection | Cam-clutch on PTO |
| Pickup Protection | Integrated on pick-up tines |
| Power Take-Off | Standard - 540 / Option - 1000 rpm |
| Number of Baler Chains | 6 |
| Bale Chamber Chains Size | 1 ½-in. (24A) / 1 ¼-in. (20A) |
| Chain Lubrication | Automatic - Continuous Lubrication |
| Check Tensioner Straps | Standard |
Bale Chamber
| Bale Chamber Width | 1210 mm |
| Bale Chamber Width | 47.64 in. |
| Bale Diameter | 800 - 1600 mm |
| Bale Diameter | 31.50 - 62.99 in. |
| Maximum Bale Chamber Volume | 2.43 m³ |
| Maximum Bale Chamber Volume | 85.81 cu ft |
| Bale Formation | 3 starter rolls + 2 Heavy-Duty belts |
| Number of Belt Driving Rolls | 2 |
| Density System | Hydraulic - hydraulic cylinders + 1 spring |
| Diameter Control | Control from the display |
| Density Control | Control from the display |
| Softcore Control | Control from the display |
| Gate Lockout | Hydraulic |
Binding System
| Binding Technology | Net binding |
| Binding/Tying System | From Front - Duckbill |
| Binding Material Storage | Net - 1 + 2 |
| Binding/Tying Mode | Automatic or Manual |
| Binding/Tying Control | Control from display |
Wrapping System
| Bale Transfer System | Table Transport System with 4 endless belts |
| Number of Bale Unloading Modes | 4 - Manual / Auto / Next / Grouper |
| Number of Bale Unloading Speeds | 3 - Low / Medium / High |
| Extra Bale Rotation (After Wrapping) | Standard - Control from the display |
| Film Dispensers | 2 x 750 mm (film stretch: 70% as standard) |
| Film Storage | 10 rolls on gullwing doors + 2 on dispensers |
| Wrapping Arms Speed | 40 rpm |
| Maximum Wrapped Bale Diameter | 1450 mm |
| Maximum Wrapped Bale Diameter | 57.09 in. |
| Single-Film Operation (50/50 Mode) | Standard |
Dimensions & Weights
| Length | 7.85 m |
| Length | 25.75 ft |
| Width | 3.30 m |
| Width | 10.83 ft |
| Height | 3.40 m |
| Height | 11.15 ft |
| Weight | 8500 kg |
| Weight | 18739 lb. |
Additional Information
| Date Collected | 2025-08-13 |
Tractor Requirements
| Minimum Tractor Power Requirements | 110 kW |
| Minimum Tractor Power Requirements | 150 hp |
| Hydraulic Requirements | 1 x DE + Power Beyond (LS) |
| Minimum Required Hydraulic Flow | 110 L/min |
| Minimum Required Hydraulic Flow | 29.06 gpm |
Miscellaneous
| Moisture Sensor | Option |
| Bale Scale | Option |
| Tongue Adjustment | Upper and lower position adjustable with toothed discs |
| Road Lights and Road Signs | Standard |
| Jackstand | Manual - Double speed |
| Water Tank | Standard |
| Wheel Chocks | Standard |
| Toolbox | Standard |
| Bale Ejection | Standard - FRS (movable side panel) | Option - Bale tilt / Rubber mat for bale tilt |
Maintenance
| 50-Hour Power Take-Off Clutch | Standard |
| Manual Greasing | Not available |
| Automatic Greasing | Standard - Tank System |
Axles, Brakes, and Tires
| Axle Type | Tandem (6 wheel nuts) |
| Brakes System | With brakes |
| Standard Tires | Tandem Axle - 500/45-22,5 |
| Conventional Tire Options | Not available |
| Radial Tire Options | Tandem Axle - 620/40 R22,5 |
Control System
| ISOBUS Compatibility | Standard |
| Display | Standard - G5 Universal display / Option - No display |
| Bale Shape Indicators | Standard |
| Camera and Lights | Option - Vision Pack (2x IR cameras + 3x Service lights + 3x Working lights) |
| Automation | Standard - Speed Automation |
| Aux-Control | Standard |
