Features

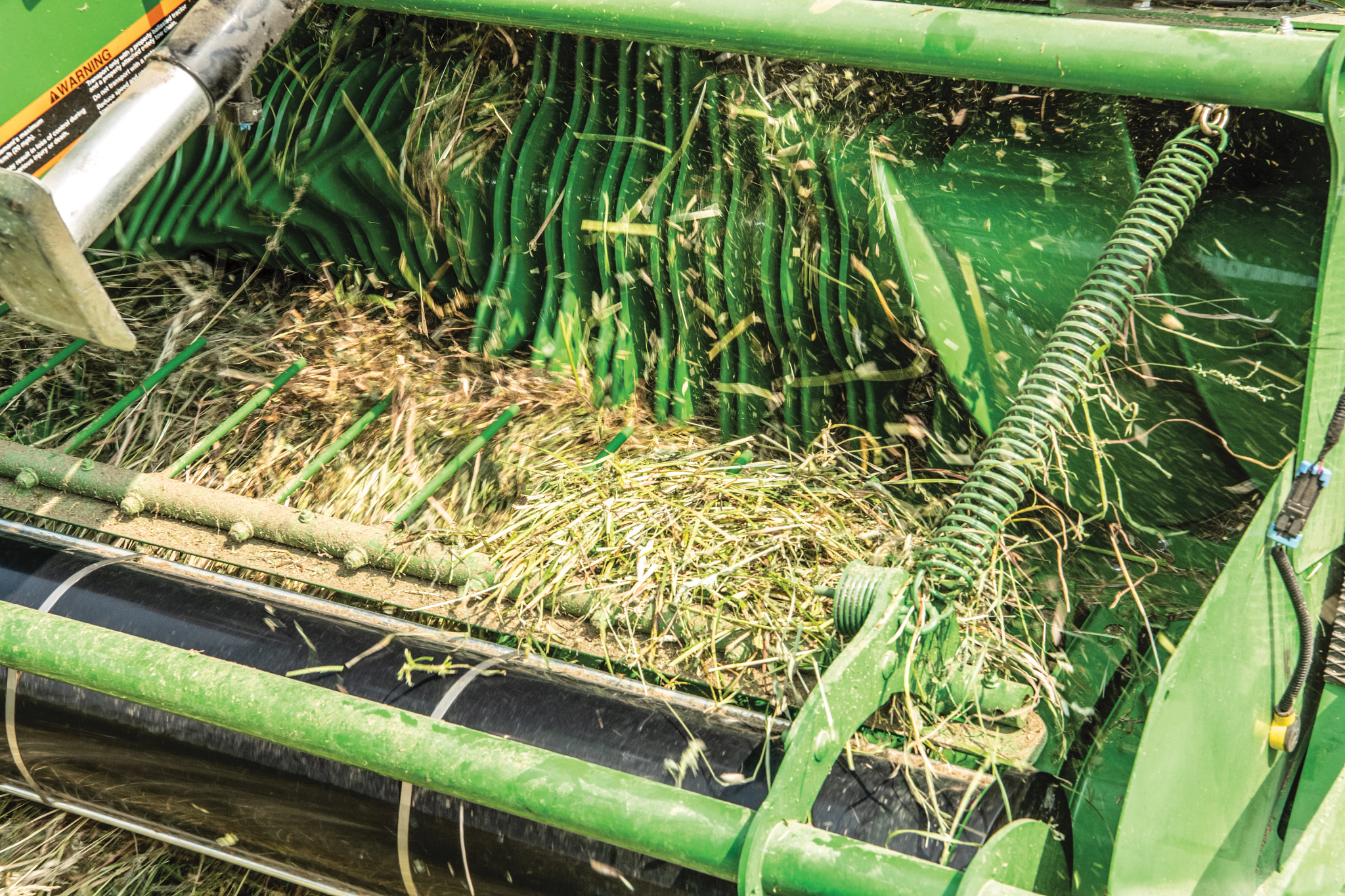

Built for Efficient Crop Flow
Found on our M Spec Round Balers, the MegaWide(TM) Plus Pickup gathers more crop and handles higher-volume windrows.* The result is easier days in the field and higher productivity.
Compared to MegaWide Classic Pickup

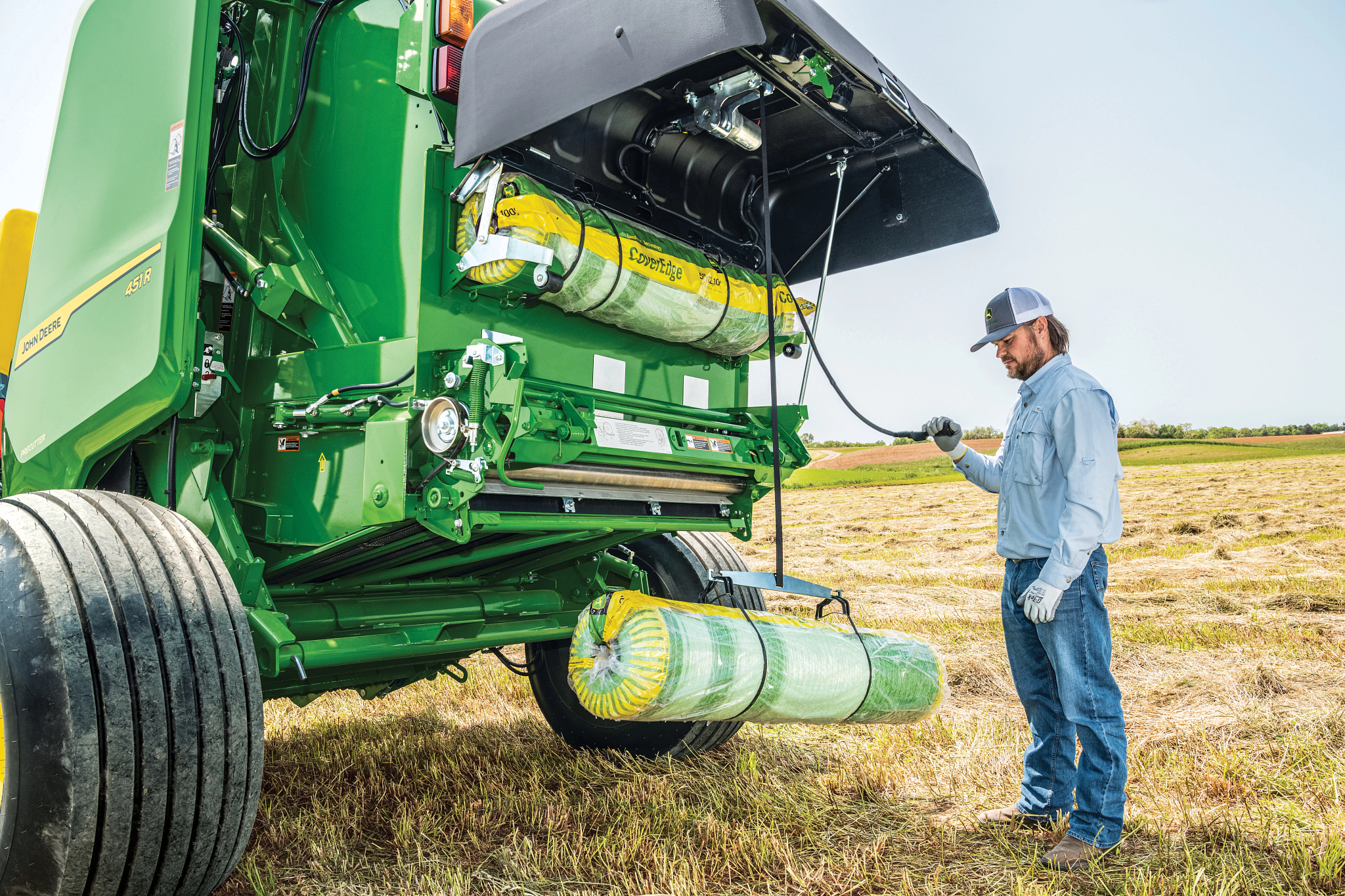

An Easy Way to Load Net Wrap
The Net Lift Assist feature provides a safe and easy method for loading Net Wrap into the baler. The Net Lift Assist Kit is designed for a wide range of round balers to provide the heavy lifting for you.
Reduce Additional Processing with Precutters
Precutters are designed to improve bale density and feed digestibility. This feature helps reduce the need for tub grinding so you can maintain feed quality. 5 ft balers have 20 knives, 4 ft balers have 14 knives.
Specifications
High-Capacity Pickup
| Type | MegaWide High Capacity and Cutting (HC) |
| Width - Inside | 1.96 m |
| Width - Inside | 6.42 ft |
| Width - Flare | 2.21 m |
| Width - Flare | 7.25 ft |
| Number Of Middle Teeth | 120 |
| Number Of Mega Teeth | 8 |
| Gauge Wheels | Semi-pneumatic |
| Stripper Diameter | 25.4 cm |
| Stripper Diameter | 10 in. |
Bale
| Size | 1.2 x 1.8 m |
| Size | 4 x 6 ft |
| Diameter | 0.81-1.83 m |
| Diameter | 2.67-6 ft |
| Width | 1.17 m |
| Width | 3.83 ft |
| Full-Size Bale In Dry Crop | 748 kg |
| Full-Size Bale In Dry Crop | 1650 lb. |
| Maximum Allowable For Silage Bale | 998 kg |
| Maximum Allowable For Silage Bale | 2200 lb. |
Monitor
| Oversize Bale | Yes, audible and mechanical alerts |
| Gate Closed | Symbol on monitor |
| Bale Forming | G5e |
| Bale Size | Mechanical and digital |
| Near Full Bale | Audible, adjustable alert |
| Full Bale | Audible, adjustable alert |
| Twine Arm Position Indicator | Mechanical |
| Auto Wrap | Activates when bale reaches preset size |
Wide Pickup
| Width- Inside | 1.55 m |
| Width- Inside | 5.08 ft |
| Width- Flare | 1.8 m |
| Width- Flare | 5.92 ft |
| Number Of Regular Teeth | 96 |
| Number Of Mega Teeth | 16 |
| Gauge Wheels | Semi-pneumatic |
Tire Size
| Standard | Dry and Silage - high-flotation 14 L - 16.4, 8 PR |
| Optional | With MegaWide Plus |
Wrapping System
| Control | Automatic to preset to bale size |
| Type- Standard | Electric |
| Twine Arms | 2 |
| Twine Ball Capacity | 8 |
Baler
| Weight - Shipping | 2800 kg |
| Weight - Shipping | 6172 lb. |
| Weight - Shipping Silage | 2979 kg |
| Weight - Shipping Silage | 6568 lb. |
| Weight - Shipping Precutter | 3930 kg |
| Weight - Shipping Precutter | 8665 lb. |
| Length - Gate Closed | 3.71 m |
| Length - Gate Closed | 12.17 ft |
| Length - Gate Open | 4.75 m |
| Length - Gate Open | 15.58 ft |
| Height- Gate Closed | 2.79 m |
| Height- Gate Closed | 9.17 ft |
| Height- Gate Open | 3.68 m |
| Height- Gate Open | 12.08 ft |
| Width- With Standard Tires | 2.26 m |
| Width- With Standard Tires | 7.42 ft |
| Width- With Optional Tires (Hi-Flotation) | 2.44 m |
| Width- With Optional Tires (Hi-Flotation) | 8 ft |
Tractor Requirements
| Minimum PTO - Dry Hay And Silage | 48 kW |
| Minimum PTO - Dry Hay And Silage | 65 hp |
| Minimum PTO - HC | 63 kW |
| Minimum PTO - HC | 85 hp |
| Hydraulic Selective Control Valves (H-SCV) | One tractor selective control valve (SCV) is required when baler is equipped with electric twine wrap. Two tractor SCVs are required when baler is equipped with hydraulic twine wrap. Three tractor SCVs are required when baler is equipped with hydraulic twine wrap and a hydraulic pickup lift. |
Driveline
| Drive Protection | Slip clutch |
| PTO Speed | 540 rpm |
| Type | Constant-velocity (CV) |
| PTO Lockback Collar On Tractor Hookup | Yes |
| PTO 60-Degree Free Rotation | Yes |
Bale Forming
| Belts-Other | DiamondTough, triple-weave, single-ply belts |
| Belts- Number | 6 |
| Belts- Width | 17.8 cm |
| Belts- Width | 7 in. |
| Belts- Texture | Diamond Tread friction surface belts |
| Density Control | Hydraulic |
| Bale Size Indication | Electronic display on monitor |
Additional Information
| Date Collected | 2023-08-22 |
