Features
Built for Efficient Crop Flow
Found on our M Spec Round Balers, the MegaWide(TM) Plus Pickup gathers more crop and handles higher-volume windrows.* The result is easier days in the field and higher productivity.
Compared to MegaWide Classic Pickup
An Easy Way to Load Net Wrap
The Net Lift Assist feature provides a safe and easy method for loading Net Wrap into the baler. The Net Lift Assist Kit is designed for a wide range of round balers to provide the heavy lifting for you.

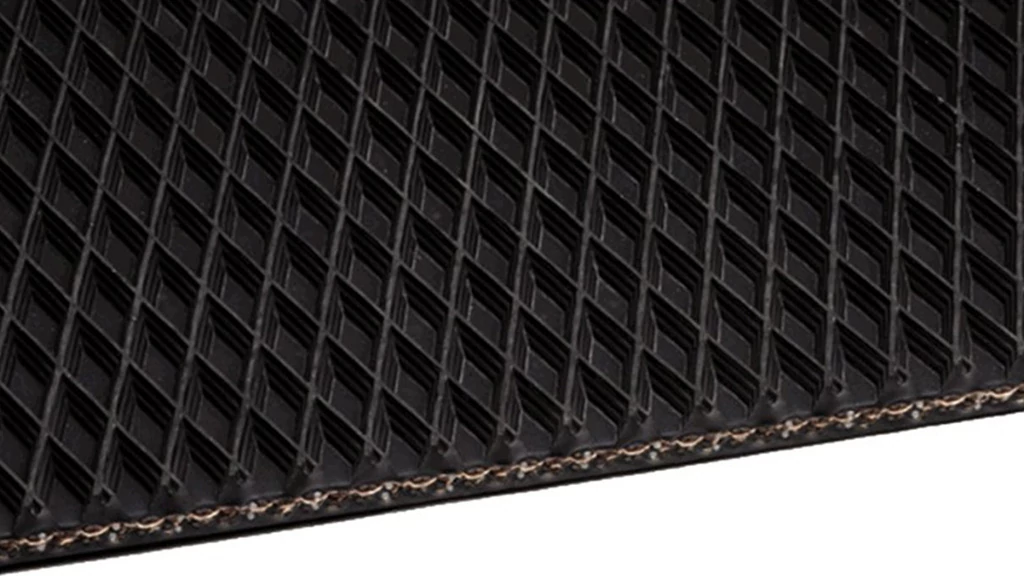

Exclusive DiamondTough™ Belts With Plate-Type Splices
7‑in. (178‑mm) diamond‑tread belts ensure fast bale starts, reduce slippage/chaffing, and self-clean. Their staggered, close spacing encloses 91% of bale width to cut fine-material loss and front buildup. Triple-weave construction and stainless-steel, plate-type splices improve durability, belt life, and productivity.
Specifications
Regular Pickup
| Width - Inside | 1.17 m |
| Width - Inside | 3.83 ft |
| Width - Flare | 1.41 m |
| Width - Flare | 4.63 ft |
| Regular Pick-Up Bars | 4 |
| Number Of Teeth | 72 |
| Tooth Spacing | 6 cm |
| Tooth Spacing | 2.6 in. |
| Lift Control | Adjustable height control |
| Gauge Wheels | Semi-pneumatic |
| Stripper Diameter | 25.4 cm |
| Stripper Diameter | 10 in. |
High-Capacity Pickup
| Type | MegaWide High Capacity and Cutting (HC) |
| Width - Inside | 1.96 m |
| Width - Inside | 6.42 ft |
| Width - Flare | 2.21 m |
| Width - Flare | 7.25 ft |
| Number Of Middle Teeth | 120 |
| Number Of Mega Teeth | 8 |
| Gauge Wheels | Semi-pneumatic |
| Stripper Diameter | 25.4 cm |
| Stripper Diameter | 10 in. |
Bale
| Size | 1.2 x 1.5 m |
| Size | 4 x 5 ft |
| Diameter | 0.89-1.52 m |
| Diameter | 2.92-5 ft |
| Width | 1.17 m |
| Width | 3.83 ft |
| Full-Size Bale In Dry Crop | 449 kg |
| Full-Size Bale In Dry Crop | 1100 lb. |
| Maximum Allowable For Silage Bale | 794 kg |
| Maximum Allowable For Silage Bale | 1750 lb. |
Monitor
| Oversize Bale | Yes, audible and mechanical alerts |
| Gate Closed | Symbol on monitor |
| Bale Forming | G5e |
| Bale Size | Digital |
| Near Full Bale | Audible, adjustable alert |
| Full Bale | Audible, adjustable alert |
| Twine Arm Position Indicator | Mechanical |
| Auto Wrap | Activates when bale reaches preset size |
Wide Pickup
| Width- Inside | 1.55 m |
| Width- Inside | 5.08 ft |
| Width- Flare | 1.8 m |
| Width- Flare | 5.91 ft |
| Number Of Regular Teeth | 96 |
| Number Of Mega Teeth | 16 |
| Gauge Wheels | Semi-pneumatic |
Tire Size
| Standard | Dry - 11 L - 14; Silage - high-flotation 14 L - 16.4, 8 PR |
| Optional | Dry - high-flotation 14 L - 16.1, 8 PR with MegaWide Plus or HC |
Wrapping System
| Control | Automatic to preset to bale size |
| Type- Standard | Electric |
| Twine Arms | 2 |
| Twine Ball Capacity | 4 |
Tractor Requirements
| Minimum PTO - Dry Hay And Silage | 42 kW |
| Minimum PTO - Dry Hay And Silage | 55 hp |
| Minimum PTO - MegaWide HC | 63.4 kW |
| Minimum PTO - MegaWide HC | 85 hp |
| Hydraulic Selective Control Valves (H-SCV) | One tractor selective control valve (SCV) is required when baler is equipped with electric twine wrap. Two tractor SCVs are required when baler is equipped with hydraulic twine wrap. Three tractor SCVs are required when baler is equipped with hydraulic twine wrap and a hydraulic pickup lift. |
Baler
| Weight - Shipping | 1733 kg |
| Weight - Shipping | 3820 lb. |
| Weight - Shipping Silage | 2708 kg |
| Weight - Shipping Silage | 5972 lb. |
| Weight - Shipping Precutter | 3691 kg |
| Weight - Shipping Precutter | 8138 lb. |
| Length - Gate Closed | 3.61 m |
| Length - Gate Closed | 11.83 ft |
| Length - Gate Open | 4.55 m |
| Length - Gate Open | 14.92 ft |
| Height- Gate Closed | 2.6 m |
| Height- Gate Closed | 8.53 ft |
| Height- Gate Open | 3.25 m |
| Height- Gate Open | 10.67 ft |
| Width- With Standard Tires | 2.26 m |
| Width- With Standard Tires | 7.42 ft |
| Width- With Optional Tires (Hi-Flotation) | 2.44 m |
| Width- With Optional Tires (Hi-Flotation) | 8 ft |
Driveline
| Drive Protection | Slip clutch |
| PTO Speed | 540 rpm |
| Type | Constant-velocity (CV) |
| PTO Lockback Collar On Tractor Hookup | Yes |
| PTO 60-Degree Free Rotation | Yes |
Bale Forming
| Belts-Other | DiamondTough, triple-weave, single-ply belts |
| Belts- Number | 6 |
| Belts- Width | 17.8 cm |
| Belts- Width | 7 in. |
| Belts- Texture | Diamond Tread friction surface belts |
| Density Control | Hydraulic |
| Bale Size Indication | Electronic display on monitor |
Additional Information
| Date Collected | 2023-08-22 |
