Features

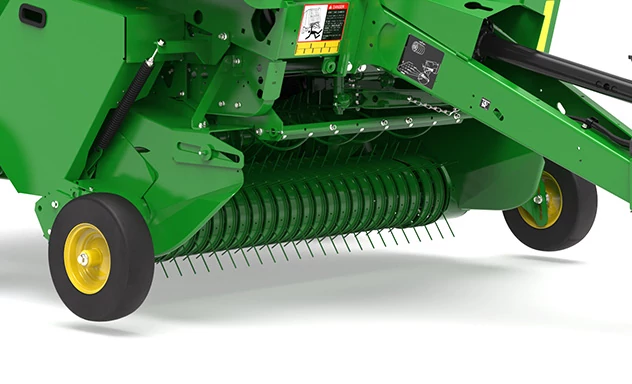

Built for Efficient Crop Flow
With a MegaWide™ Classic pickup, this baler is designed to provide increased feeding capacity and efficient crop collection. Its low profile design ensures clean pickup with minimal loss, while a spiral rotor and compressor rods promote smooth crop flow when handling large, heavy windrows.
An Easy Way to Load Net Wrap
The Net Lift Assist feature provides a safe and easy method for loading Net Wrap into the baler. The Net Lift Assist Kit is designed for a wide range of round balers to provide the heavy lifting for you.
Exclusive DiamondTough™ Belts With Plate-Type Splices
7‑in. (178‑mm) diamond‑tread belts ensure fast bale starts, reduce slippage/chaffing, and self-clean. Their staggered, close spacing encloses 91% of bale width to cut fine-material loss and front buildup. Triple-weave construction and stainless-steel, plate-type splices improve durability, belt life, and productivity.
Specifications
Regular Pickup
| Width - Inside | 1.17 m |
| Width - Inside | 3.83 ft |
| Width - Flare | 1.8 m |
| Width - Flare | 5.92 ft |
| Regular Pick-Up Bars | 4 |
| Number Of Teeth | 72 |
| Tooth Spacing | 6 cm |
| Tooth Spacing | 2.6 in. |
| Lift Control | Adjustable height control |
| Gauge Wheels | Semi-pneumatic |
| Stripper Diameter | 25.4 cm |
| Stripper Diameter | 10 in. |
Monitor
| Oversize Bale | Yes, audible and mechanical alerts |
| Gate Closed | Symbol on monitor |
| Bale Size | Mechanical |
| Near Full Bale | Audible alert |
| Full Bale | Audible alert |
| Twine Arm Position Indicator | Mechanical |
| Auto Wrap | Activates when bale reaches preset size |
Bale
| Size | 1.2 x 1.5 m |
| Size | 4 x 5 ft |
| Diameter | 0.89-1.52 m |
| Diameter | 2.92-5 ft |
| Width | 1.17 m |
| Width | 3.83 ft |
| Full-Size Bale In Dry Crop | 454 kg |
| Full-Size Bale In Dry Crop | 1000 lb. |
Wrapping System
| Control | Automatic to preset to bale size |
| Type- Standard | Electric |
| Twine Arms | 2 |
| Twine Ball Capacity | 4 |
Baler
| Weight - Shipping | 1701 kg |
| Weight - Shipping | 3750 lb. |
| Length - Gate Closed | 3.61 m |
| Length - Gate Closed | 11.83 ft |
| Length - Gate Open | 4.55 m |
| Length - Gate Open | 14.92 ft |
| Height- Gate Closed | 2.6 m |
| Height- Gate Closed | 8.53 ft |
| Height- Gate Open | 3.25 m |
| Height- Gate Open | 10.67 ft |
| Width- With Standard Tires | 2.26 m |
| Width- With Standard Tires | 7.42 ft |
Tractor Requirements
| Minimum PTO - Dry Hay And Silage | 42 kW |
| Minimum PTO - Dry Hay And Silage | 55 hp |
| Hydraulic Selective Control Valves (H-SCV) | One tractor selective control valve (SCV) is required when baler is equipped with electric twine wrap. Two tractor SCVs are required when baler is equipped with hydraulic twine wrap. Three tractor SCVs are required when baler is equipped with hydraulic twine wrap and a hydraulic pickup lift. |
Tire Size
| Standard | 11 L - 14 |
Driveline
| Drive Protection | Shear-bolt |
| PTO Speed | 540 rpm |
| Type | Constant-velocity (CV) |
| PTO Lockback Collar On Tractor Hookup | No |
| PTO 60-Degree Free Rotation | No |
Bale Forming
| Belts-Other | DiamondTough, triple-weave, single-ply belts |
| Belts- Number | 6 |
| Belts- Width | 17.8 cm |
| Belts- Width | 7 in. |
| Belts- Texture | Diamond Tread friction surface belts |
| Density Control | Hydraulic |
| Bale Size Indication | Not available from factory, available as dealer-installed options |
Additional Information
| Date Collected | 2023-08-22 |
