John Deere 338
Double tap to zoom
338
Balers
Overview:

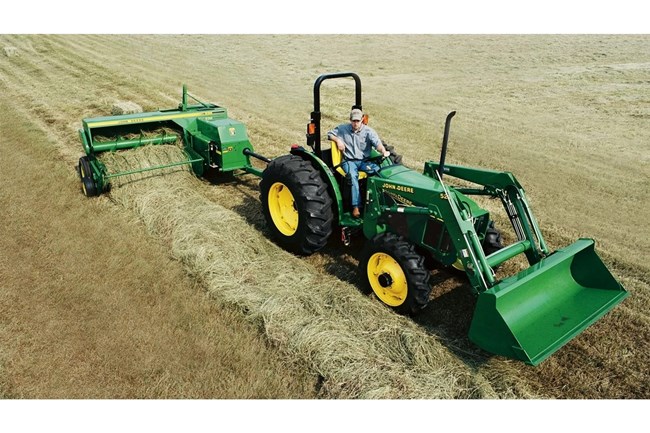

The John Deere 338 Small Square Baler uses a full-width feeding pickup system with tight-fitting teeth and narrow strippers to gather hay in wide, heavy windrows with a capacity of 69 inches from flare to flare.
- Full-Width Feeding Pickup
- 540-rpm PTO Power Shaft
- Deep-Flighted Auger Feeding
- Hydraulic Bale Tension Available
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Efficient Crop Movement for More Uniform Bales
The deep-flighted auger continuously moves hay away from the pickup to the pre-compression chamber. Hay turns in the tapered auger housing, enabling the feeder forks to fold each charge as it enters the bale case to produce uniform bales.
Built for Consistent Bale Density and Quality
A hydraulic bale tension permits easy adjustment of bale density to meet crop variations and desired bale weight: it features hydraulic cylinders to control the density of the bale and one knob controls bale tension and weight.
Advanced Pickup Design
Built with closely spaced teeth for consistent feeding, this baler features a full-width pickup that gathers broad, heavy windrows efficiently. Its feeder system promotes smooth crop flow, reduces material loss, and delivers uniform material for high-quality bale formation.
Specifications
Pickup
| Pickup Width | 6.17 ft |
| Pickup Width | 1.88 m |
| Tooth Bars/Teeth | 6 bars, 156 teeth |
| Lift Control | Crank (hydraulic optional) |
| Pickup Diameter | 19.5 in. |
| Pickup Diameter | 49.5 cm |
Tractor Requirements
| PTO Speed | 540 rpm |
| Minimum PTO | 35 hp |
| Minimum PTO | 26 kW |
Auger And Feeder Forks
| Diameter | 16 in. |
| Diameter | 41 cm |
| Length | 61 in. |
| Length | 154.9 cm |
Bale Chute
| Short Chute | Optional |
| Long Chute | Optional |
| Side Bale Drop Chute | Optional |
| Wagon Hitch | Optional |
Baler Dimensions
| Length With Long Tongue | 18.92 ft |
| Length With Long Tongue | 5.77 m |
| Width | 9 ft |
| Width | 2.74 m |
| Height with Fork Cover | 5.58 ft |
| Height with Fork Cover | 1.7 m |
| Weight Empty | 2805 lb. |
| Weight Empty | 1272 kg |
Bale Size
| Height x Width | 14 x 18 in. |
| Height x Width | 36 x 46 cm |
| Length | 12-50 in. |
| Length | 30.5-127 cm |
Tying Mechanism
| Number Of Knotters | 2 |
| Twine Capacity | 8 |
| Twine Type | Plastic or sisal |
| Central Lube System | Optional |
| Wire Ball Capacity | 4 |
Bale Ejector
| Available | Optional |
Drivetrain Protection
| Pickup | Belt slip |
| Needles | Shear bolt/plunger head stop |
| Knotters | Shear bolt |
Drive Mechanism
| Driveline | Equal angle 3 joint category 4 |
| Pickup | Belt |
| Plunger | Gear and shaft |
| Knotters | Gear and shaft |
| Feeder Forks | Gear and shaft |
Tires
| Right-Hand Standard Tire Size | 26x12.0-12, 4 ply |
| Left-Hand Standard Tire Size | 11L-14, 6 ply |
| Gauge Wheels | 1 optional |
| Pickup Gauge Wheels Tires Size | 16.5x6.50-8 |
Plunger
| Strokes/minute | 80 spm |
Density Control System
| Adjustable Bale Density | Mechanical crank |
| Bale Density Adjustment | Optional |
