Features
Helping You Harvest with Confidence

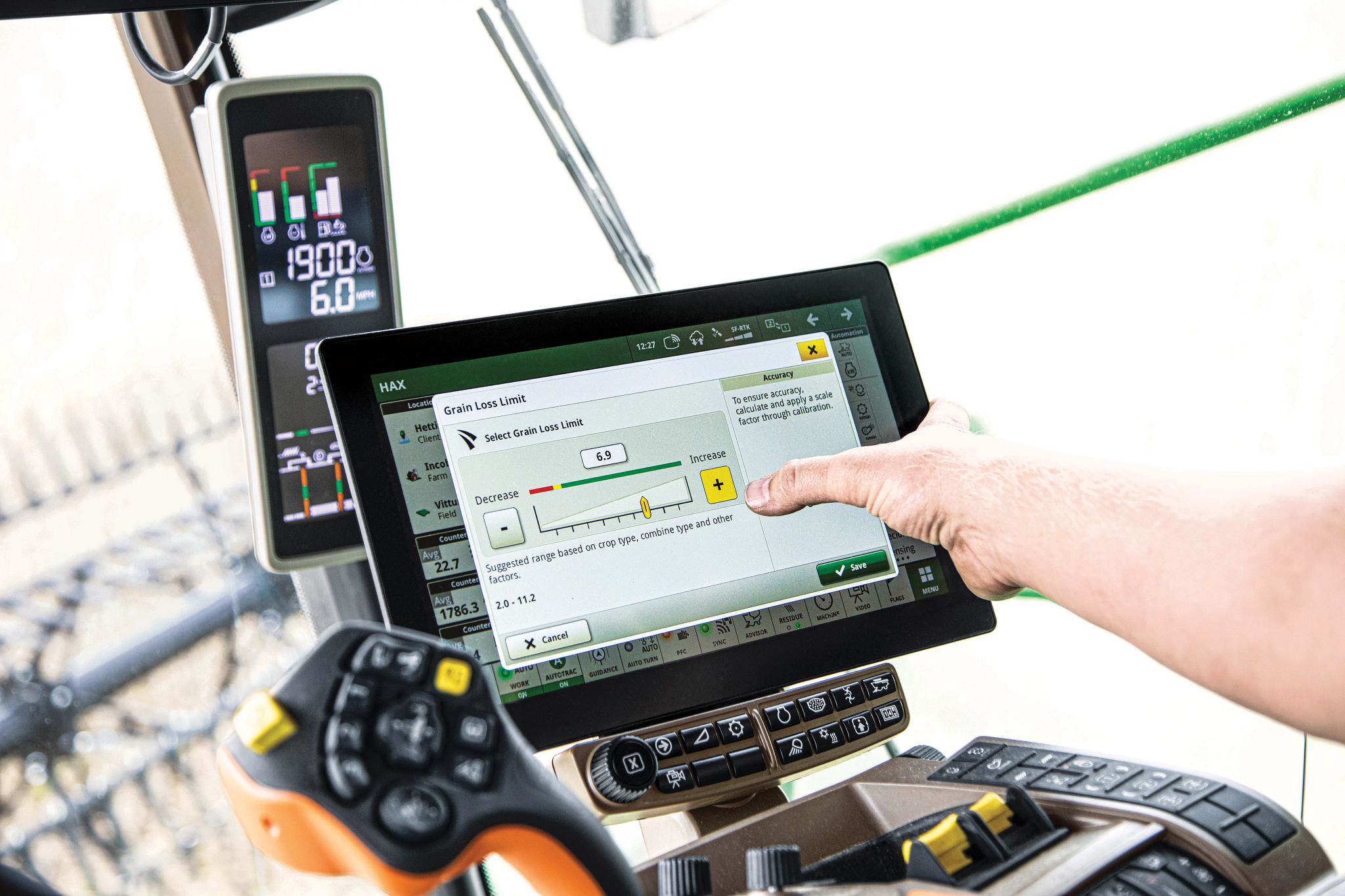

Changing harvest conditions can be overwhelming. John Deere automation takes the pressure off by optimizing combine settings, guiding precise turns, and managing unloads on the go—protecting yield, reducing grain loss, delivering clean samples, and keeping you focused on feeding the machine, and less on adjusting, steering, or unloading.
Make Every Minute of the Harvest Window Count
John Deere delivers harvesting solutions matched to your operation, with a full portfolio of combines and front end equipment to hit your harvest window. Automation like Machine Sync, Auto Unload, and Predictive Ground Speed boost productivity, while integrated technology, parts, and Precision Upgrades help your combine adapt to changing crops and conditions—season after season.
Analyze Key Insights for Better Decisions Next Year
Harvest data becomes next season’s advantage. Yield maps, grain quality, and machine analytics in John Deere Operations Center help refine seed placement, fertility plans, and hybrid selections. Combined with precision upgrades and automation, insights turn into consistent execution—setting the stage for better results next year.
Specifications
Dimensions
| Approximate Overall Width - With 27.6-in. (70 cm) Row Spacing | 4.4 m (14.4 ft) |
| Approximate Overall Width - With 29.5-in. (75 cm) Row Spacing | 4.6 m (15.1 ft) |
| Approximate Overall Width - With 30-in. (76.2 cm) Row Spacing | 4.4 m (14.4 ft) |
| Approximate Overall Width - With 36-in. (91.4 cm) Row Spacing | 5.8 m (19 ft) |
| Approximate Overall Width - With 38-in. (96.5 cm) Row Spacing | 5.7 m (18.7 ft) |
| Points In Operating Position (Lowered) | 3.2 m (10.58 ft) |
| Points Folded Up - With 27.6-in. (70 cm) Row Spacing | 2.6 m (8.58 ft) |
| Points Folded Up - With 29.5-in. (75 cm) Row Spacing | 2.6 m (8.58 ft) |
| Points Folded Up - With 30-in. (76.2 cm) Row Spacing | 2.6 m (8.58 ft) |
| Points Folded Up - With 36-in. (91.4 cm) Row Spacing | 3.2 m (10.58 ft) |
| Points Folded Up - With 38-in. (96.5 cm) Row Spacing | 3.2 m (10.58 ft) |
| Points In Operating Position (Lowered) | 3.2 m (10.58 ft) |
| Approximate Shipping Weight (Includes Shipping Skid) - non StalkMaster | 27.6-in. (70-cm) row spacing: 6237 lb (2829 kg); 29.5-in. (75-cm): 5002 lb (2269 kg); 30-in. (76.2-cm): 4974 lb (2256 kg); 36-in. (91.4-cm): 5002 lb (2269 kg); 38-in. (96.5-cm): 6777 lb (3074 kg) |
| Approximate Shipping Weight (Includes Shipping Skid) - StalkMaster | 27.6-in. (70-cm) row spacing: 6237 lb (2829 kg); 29.5-in. (75-cm): 5002 lb (2269 kg); 30-in. (76.2-cm): 4974 lb (2256 kg); 36-in. (91.4-cm): 5002 lb (2269 kg); 38-in. (96.5-cm): 6777 lb (3074 kg) |
| Row Spacings | 70, 75, 76.2, 91.4, or 96.5 cm (27.6, 29.5, 30, 36, or 38 in.) |
| Standard Weight - non StalkMaster | 27.6-in. (70-cm) row spacing: 4577 lb (2076 kg); 29.5-in. (75-cm): 4334 lb (1966 kg); 30-in. (76.2-cm): 4550 lb (2064 kg); 36-in. (91.4-cm): 4980 lb (2259 kg); 38-in. (96.5-cm): 4954 lb (2247 kg) |
| Standard Weight - StalkMaster | 27.6-in. (70-cm) row spacing: 5002 lb (2269 kg); 29.5-in. (75-cm): 5002 lb (2269 kg); 30-in. (76.2-cm): 4974 lb (2256 kg); 36-in. (91.4-cm): 5002 lb (2269 kg); 38-in. (96.5-cm): 5002 lb (2269 kg) |

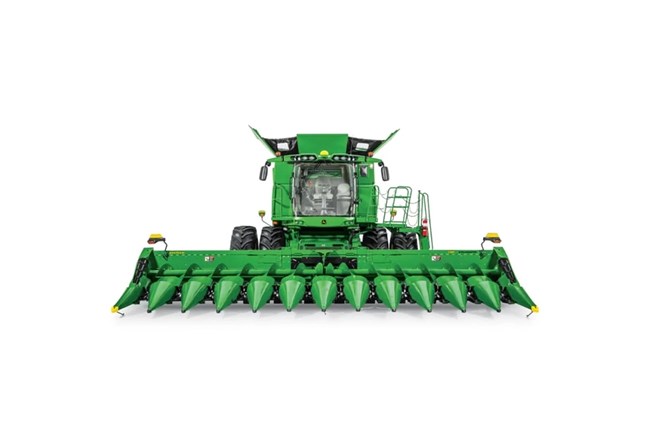

Corn Head
| Gathering Points | Four-position, low-profile floating type hinged above gathering chains |
| Center And Outer Gatherings | Hinged, quickly removable |
| Gathering Chains | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) |
| Minimum Clearance Between Gathering Chains And Ground | 1.25 in. |
| Minimum Clearance Between Gathering Chains And Ground | 32 mm |
| Row Unit Drive | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft |
| Gathering Chain Adjustment | Spring loaded, self-adjusting |
| Stalk Rolls | Opposed, intermeshing, and chopping (two per row-unit) |
| Deck Plate Adjustment | Hydraulic adjustment |
| Slip Clutch | One per row-unit plus auger drive |
| Trash Knives | Full-length, one-piece, heat-treated steel |
| Stalk Deflectors | Factory-installed option |
Additional Information
| Date Collected | 2020-06-15 |
