Helping You Harvest with Confidence
Changing harvest conditions can be overwhelming. John Deere automation takes the pressure off by optimizing combine settings, guiding precise turns, and managing unloads on the go—protecting yield, reducing grain loss, delivering clean samples, and keeping you focused on feeding the machine, and less on adjusting, steering, or unloading.
Make Every Minute of the Harvest Window Count
John Deere delivers harvesting solutions matched to your operation, with a full portfolio of combines and front end equipment to hit your harvest window. Automation like Machine Sync, Auto Unload, and Predictive Ground Speed boost productivity, while integrated technology, parts, and Precision Upgrades help your combine adapt to changing crops and conditions—season after season.
Analyze Key Insights for Better Decisions Next Year
Harvest data becomes next season’s advantage. Yield maps, grain quality, and machine analytics in John Deere Operations Center help refine seed placement, fertility plans, and hybrid selections. Combined with precision upgrades and automation, insights turn into consistent execution—setting the stage for better results next year.
Specifications
Dimensions
| Approximate Overall Width | With 50.8-cm (20-in.) row spacing: 8.5 m (27.75 ft); With 55.9-cm (22-in.) row spacing: 9.24 m (30.33 ft) |
| Approximate Overall Width - With 30-in. (76.2 cm) Row Spacing | 12.3 m (40.33 ft) |
| Approximate Folded Width | With 50.8-cm (20-in.) row spacing: 5.3 m (17.5 ft); With 55.9-cm (22-in.) row spacing: 5.87 m (19.25 ft); With 76.2-cm (30-in.) row spacing: 6.3 m (20.75 ft) |
| Points In Operating Position (Lowered) | With 50.8-cm (20-in.) row spacing: 2.9 m (9.67 ft); With 55.9-cm (22-in.) row spacing: 2.9 m; With 76.2-cm (30-in.) row spacing: 3 m (10 ft) |
| Points Folded Up (Service Position) | With 50.8-cm (20-in.) row spacing: 2.3 m (7.5 ft); With 55.9-cm (22-in.) row spacing: 2.3 m |
| Points Folded Up - With 30-in. (76.2 cm) Row Spacing | 2.6 m (8.58 ft) |
| Points In Operating Position (Lowered) | With 50.8-cm (20-in.) row spacing: 2.9 m (9.67 ft); With 55.9-cm (22-in.) row spacing: 2.9 m; With 76.2-cm (30-in.) row spacing: 3 m (10 ft) |
| Approximate Shipping Weight (Includes Shipping Skid) - non StalkMaster | With 50.8-cm (20-in.) row spacing: 5123 kg (11,294 lb); With 55.9-cm (22-in.) row spacing: 5212 kg (11,490 lb); With 76.2-cm (30-in.) row spacing: 5627 kg (12,405 lb) |
| Approximate Shipping Weight (Includes Shipping Skid) - StalkMaster | With 50.8-cm (20-in.) row spacing: 5547 kg (12,227 lb); With 55.9-cm (22-in.) row spacing: 5598 kg (12,341 lb); With 76.2-cm (30-in.) row spacing: 6106 kg (13,462 lb) |
| Row Spacings | 50.8, 55.9, or 76.2 cm (20, 22, or 30 in.) |
| Standard Weight - non StalkMaster | With 50.8-cm (20-in.) row spacing: 5123 kg (11,294 lb); With 55.9-cm (22-in.) row spacing: 5212 kg (11,490 lb); With 76.2-cm (30-in.) row spacing: 5627 kg (12,405 lb) |
| Standard Weight - StalkMaster | With 50.8-cm (20-in.) row spacing: 5547 kg (12,227 lb); With 55.9-cm (22-in.) row spacing: 5598 kg (12,341 lb); With 76.2-cm (30-in.) row spacing: 6106 kg (13,462 lb) |

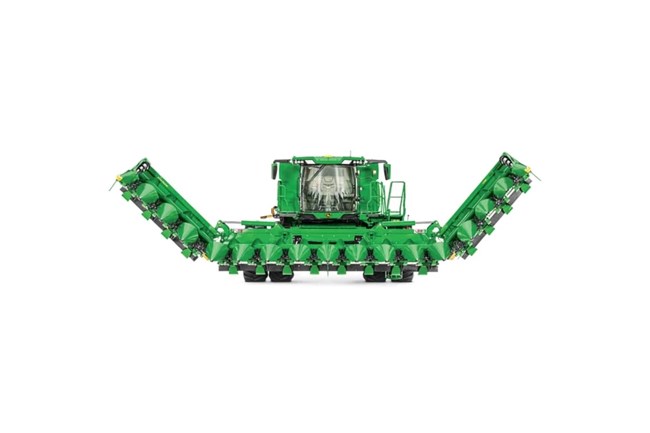

Corn Head
| Gathering Points | Four-position, low-profile floating type hinged above gathering chains |
| Center And Outer Gatherings | Hinged, quickly removable |
| Gathering Chains | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) |
| Minimum Clearance Between Gathering Chains And Ground | 1.25 in. |
| Minimum Clearance Between Gathering Chains And Ground | 32 mm |
| Row Unit Drive | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft |
| Gathering Chain Adjustment | Spring loaded, self-adjusting |
| Stalk Rolls | Opposed, intermeshing, and chopping (two per row-unit) |
| Deck Plate Adjustment | Hydraulic adjustment |
| Slip Clutch | One per row-unit plus auger drive |
| Trash Knives | Full-length, one-piece, heat-treated steel |
| Stalk Deflectors | Factory-installed option |
Additional Information
| Date Collected | 2020-06-15 |
