Features
Capture More From Every Acre with Confidence

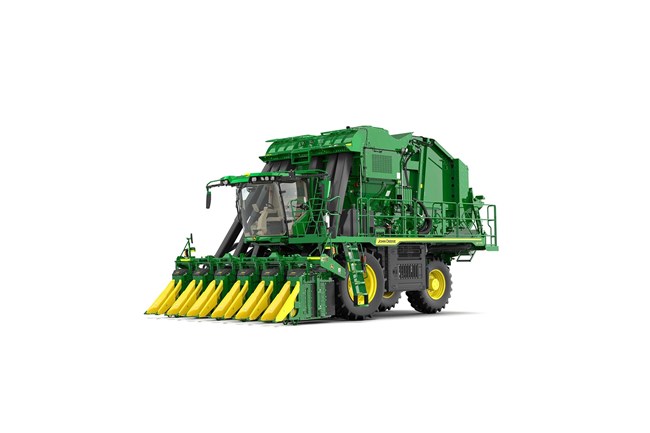

Cotton harvest is where yield turns into profit, and every pass matters. John Deere cotton pickers, strippers, and headers are designed to maximize cotton capture while protecting fiber quality - helping you reduce losses, maintain consistency, and harvest a cleaner crop so you can protect both yield potential and market value.
Keep Harvest Moving When Timing Matters

Cotton doesn’t wait for perfect conditions, and neither can your operation. With high-capacity machines, reliable harvesting components, and efficient crop flow from row unit to module, John Deere cotton solutions help you maintain productivity, reduce downtime, and keep harvest moving - so you can finish in the optimal window and avoid costly delays.
Turn Every Pass into Better Decisions

Cotton harvest generates more than bales - it generates insight. With integrated technology and connectivity, John Deere cotton pickers and strippers capture key data on yield, moisture, and module performance. That information flows into John Deere Operations Center™, helping you track results, improve decisions, and better manage your crop from harvest through ginning.
Specifications
Tank Capacities
| Fuel Tank | 330 gal. |
| Fuel Tank | 1250 L |
| Moistener System | 360 gal. |
| Moistener System | 1363 L |
| Quick Fill | Yes |
| Lube | 68 gal. |
| Lube | 257 L |
| Diesel Exhaust Fluid Tank | 27.5 gal. |
| Diesel Exhaust Fluid Tank | 104.4 L |
Powertrain
| Engine | John Deere JD14P 13.6 L |
| Emission Level | Stage II, Stage IIIA, Final Tier 4 (FT4), and Stage V |
| Rated Engine Speed | 1900 rpm |
| Rated Engine Power | 555 hp |
| Rated Engine Power | 414 kW |
| Maximum Power | 610 hp |
| Maximum Power | 455 kW |
| Power Boost | 25 kW / 34 hp |
| Displacement | 824 cu in. |
| Displacement | 13.6 L |
| Cylinders | 6 |
| Turbocharged/Aftercooled | Yes |
| Alternator | Single 330 amp |
| Variable Pitch Reversible Fan | Yes |
| Rotary Screen | Yes |
| Ground Level Access To Coolers | Yes |
| Fuel System Type | High-pressure common rail |
| Governor | Electronic |
| On Board Diagnostics | Yes |
| Transmission | ProDrive™ automatic shift (AST) |
| Gears | Two range |
| Sync Mode 1 (4WD) | 0 - 4.6 mph |
| Sync Mode 1 (4WD) | 0 - 7.4 km/h |
| Scrapping Mode 2 (4WD) | 0 - 5.5 mph |
| Scrapping Mode 2 (4WD) | 0 - 9 km/h |
| Field Transport Mode 3 (4WD) | 0 - 9 mph |
| Field Transport Mode 3 (4WD) | 0 - 14.5 km/h |
| Road Transport Mode 4 (4WD) | 0 - 20 mph |
| Road Transport Mode 4 (4WD) | 0 - 32.2 km/h |
| Unit Configuration | Hydrostatic/mechanical drive |
| Hydrostatic System Type | Hydrostatic/mechanical drive |
| Brake Type | Wet, multiple disc |
| Tires | Standard Drive Tire |
| Standard Drive Tires | 520/85R42 (20.8R42) R1W |
| Optional Drive Tires | VF520/85R42 (20.8R42) R2 |
| Dual Wheels | Yes |
| Standard Dual Tire Size | 520/85R42 (20.8R42) R1W |
| Optional Dual Tire Size | VF520/85R42 (20.8R42) R2 |
| Standard Steering Tire | IF580/80R34 (R1W) |
| Optional Steering Tire | VF520/85R42 (20.8R42) R1W |
| Rear Wheel Drive | Yes (full time) |
| Tire Size | 520/85R42 (20.8R42) R1W |
Dimensions
| Lengths | 33.4 ft |
| Lengths | 10.2 m |
| Overall Length | 33.4 ft |
| Overall Length | 10.2 m |
| Wheel Base | 14.2 ft |
| Wheel Base | 4.3 m |
| Transport Position Height | 4.4 ft |
| Transport Position Height | 14.5 m |
| Full Height Position | 5.2 ft |
| Full Height Position | 17.2 m |
| Weights | 31257 lb. |
| Weights | 68900 kg |
| 6-Row Weight | 31257 lb. |
| 6-Row Weight | 44410 kg |
Row Units
| Number Of Rows | Six |
| Row Spacings | 30, 36, 38, 40 in. |
| Row Spacings | 76.2, 91.4, 96.5, 101.6 cm |
| Picking Units Style | In-line spindle-type picking units |
| Picking Units Available | MP16 |
| Drums | 2 |
| Bars Front And Rear | 16 front drum, 12 rear drum |
| Spindles Per Bar | 20 (MP16) |
| Doffer Pads | Urethane |
| Moistener Pads | 20 |
| Unit Drive Protection | Slip clutch |
| Lubrication | High-pressure common rail |
| Bars | 16 front drum, 12 rear drum |
| Upper Gears | 20 (MP16) |
| Row Guidance | Manual RowSense™ / AutoTrac™ RowSense |
On-Board Module Builder
| Module Shape | Round/cylindrical |
| Module Dimensions | Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm) |
| Module Weight | 4,900-5,900 lb. |
| Module Weight | 2,222-2,676 kg |
| Unload On-The-Go | Yes |
| Wrap System Carrying Capacity | 120 portions |
Hydraulic System
| Pump Type | Pressure/flow compensated |
| Pressure | 3050 psi |
| Pressure | 210 bar |
| Flow | 59 gpm |
| Flow | 223 L/min |
